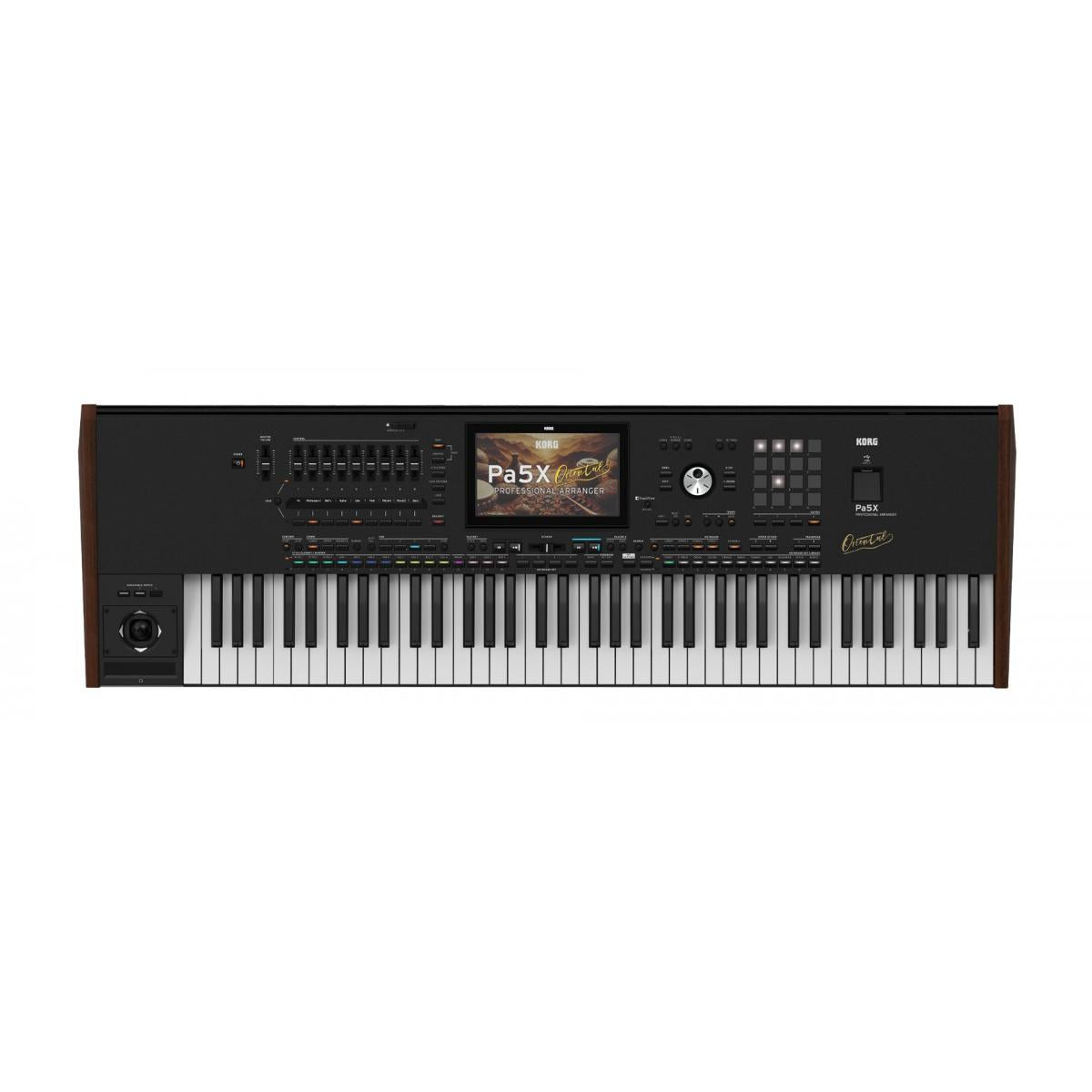

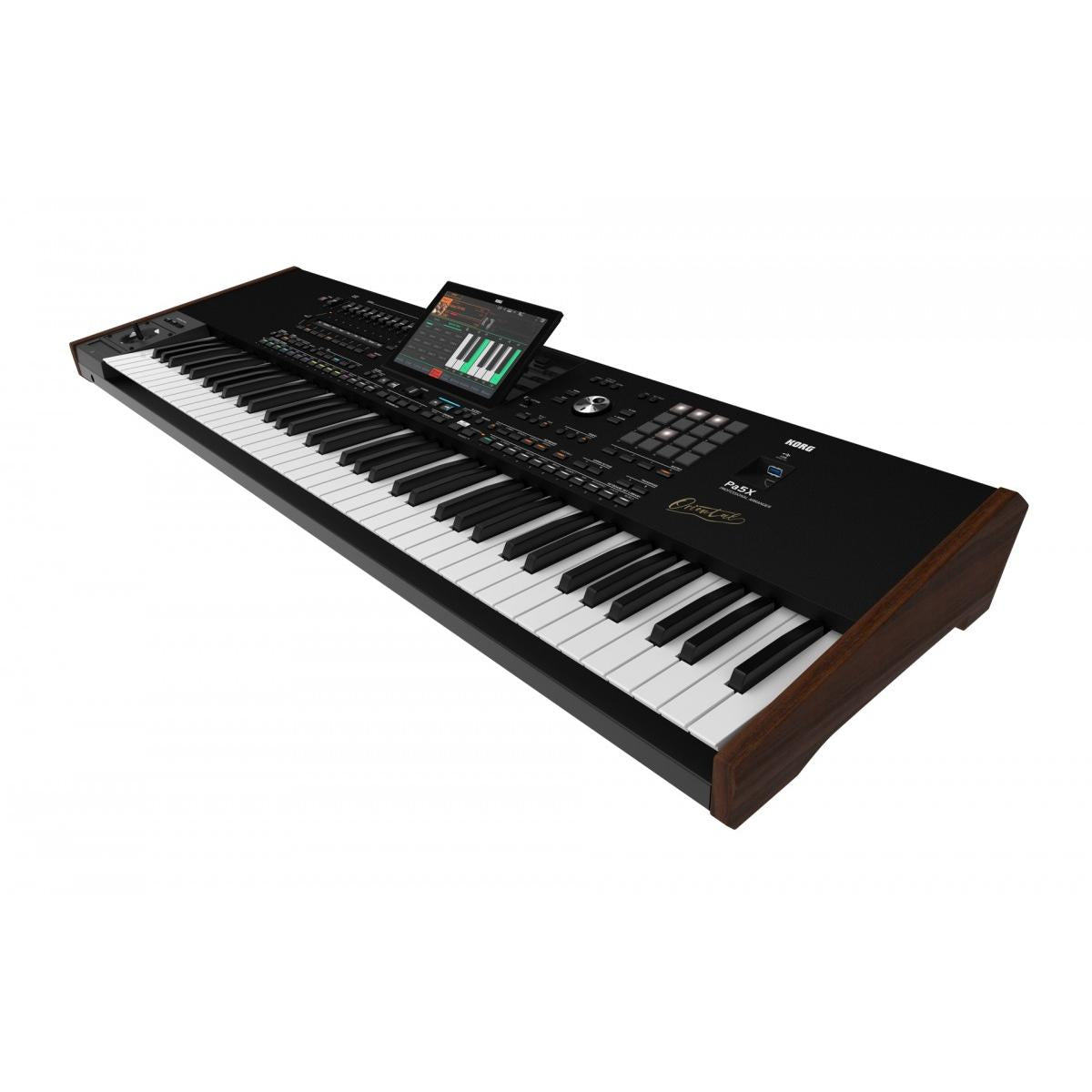

Korg PA5X-76 Professional Arranger Keyboard 76-Key - Oriental Edition

Specifications

Keyboard

• PA5X 61: 61 KEYS (C2 – C7) SEMI–WEIGHTED KEYS WITH AFTERTOUCH
• PA5X 76: 76 KEYS (E1 – G7) SEMI–WEIGHTED KEYS WITH AFTERTOUCH

Case

• ALUMINUM CASE WITH WOODEN SIDE PANELS

Operating System

• UPGRADABLE OPERATING SYSTEM

Sound Generator

• EDS-XP (ENHANCED DEFINITION SYNTHESIS-EXPANDED)
• MULTIMODE FILTERS WITH RESONANCE, 3-BAND EQ FOR EACH TRACK

Polyphony

• 160 VOICES, 160 OSCILLATORS

Effects

• KEYBOARD TRACKS: 3 INSERT EFFECT; 3 MASTER EFFECTS
• STYLE/SONG: 10 INSERT EFFECTS; 3 MASTER EFFECTS
• MASTER EQ AND FINALIZER FOR SONGS AND STYLES
• FINAL MASTERING EFFECTS: WAVES MAXXAUDIO®
• MIC PROCESSOR TECHNOLOGY BY SHIFT AUDIO
• MIC SETUP: COMPRESSOR, EQ, GATE
• FOUR-PART HARMONIZER, DOUBLER, FILTER, MODULATION, DELAY, REVERB, AUTOPITCH

Guitar Processor

• GUITAR RACK (4 EFFECT-SLOTS) WITH STOMPBOX AND AMP SIMULATION

Sounds / Drum Kits

• FACTORY: MORE THAN 2,600 FACTORY SOUNDS IN TOTAL
• FIVE MULTILAYER STEREO ACOUSTIC PIANOS WITH DAMPER/BODY RESONANCE, GM/XG SOUND SETS, CLOSE TO 200 DRUM KITS INCLUDING AMBIENT DRUMS AND ROUND ROBIN-BASED DRUM KITS
• USER AREA: 768 SOUNDS, 384 DRUM KITS
• DIGITAL DRAWBARS: 9 FOOTAGES, PERCUSSION, KEY ON/OFF, LEAKAGE, VIBRATO/CHORUS, ROTARY SPEAKER WITH AMP SIMULATOR
• NATURAL AMBIENCE DRUM SOUNDS, ROUND ROBIN FEATURES
• DEFINED NUANCE CONTROL (DNC) TECHNOLOGY
• QUICK AND FULL SOUND EDITING, DRUM FAMILY AND FULL DRUM KIT EDITING

Sampling

• USER PCM SAMPLE MEMORY: 4 GB OF DATA, EQUIVALENT TO 8 GB LINEAR WHEN COMPRESSED
• LOADS KORG, WAV, AIFF AND SOUNDFONT™ FORMATS
• SAVES KORG, WAV AND AIFF FORMATS
• FULL EDIT, TIME SLICE, SAMPLING FEATURES

Keyboard Sets

• FACTORY: MORE THAN 650 FACTORY KEYBOARD SETS, FREELY PROGRAMMABLE
• COMBINES FOUR KEYBOARD SOUNDS, PLUS EFFECTS AND SETTINGS
• LIBRARY ACCESSIBLE FROM FRONT-PANEL BUTTONS
• “MY SETTING” SPECIAL KEYBOARD SET

Players

• PATENTED XDS CROSSFADE DUAL PLAYER WITH X-FADER BALANCE CONTROL
• CROSSFADE BETWEEN SONGS AND/OR STYLES

Styles

• FACTORY: MORE THAN 940 FACTORY STYLES, FREELY PROGRAMMABLE
• EIGHT STYLE TRACKS, 4 KEYBOARD SETS AND 4 PADS PER STYLE; PROGRAMMABLE SOUNDS, EFFECTS AND STYLE PARAMETERS
• GUITAR MODE 2, PARALLEL AND FIXED NTT (NOTE TRANSPOSITION TABLE)
• STYLE RECORD AND EVENT EDIT
• STYLE ELEMENTS: 3 INTROS, 4 VARIATIONS, 4 FILLS, 1 BREAK, 3 ENDINGS
• STYLE CONTROLS: PLAY/STOP, SYNCHRO START, SYNCHRO STOP, TAP TEMPO/RESET, AUTO FILL, MEMORY, BASS INVERSION, MANUAL BASS, BASS & LOWER BACKING, DRUM & BASS, INDIVIDUAL STYLE TRACKS MUTE, STYLE TO KEYBOARD SET SET

Chord Sequencer

• FACTORY: MORE THAN 200 CHORD SEQUENCES
• CHORD SEQUENCE RECORDER/PLAYER
• CHORD SEQUENCES CAN BE SAVED TO STYLE AND SONGBOOK ENTRIES

Songs

• PATENTED XDS CROSSFADE DUAL PLAYER WITH X-FADER BALANCE CONTROL
• SUPPORTED FORMATS: MID, KAR, MP3 + LYRICS, MP3+G
• LYRICS, SCORE, AND CHORD DATA CAN BE DISPLAYED ON SCREEN, OR ON EXTERNAL VIDEO MONITOR
• MARKERS WITH ADD, DELETE, EDIT, LOOP AND AUTOSCROLL FUNCTIONS
• JUKEBOX FUNCTION
• FULL-FEATURED, 16-TRACK SEQUENCER, SONG EDIT

MP3 Player / Recorder

• DOUBLE MP3 PLAYER AND MP3 RECORDER
• RECORDS MP3 FILES, INCLUDING STYLES, MIDI SONGS, MP3 SONGS, KEYBOARD SOUNDS, PADS, MATRIX, MICROPHONE, GUITAR, EFFECTS
• TRANSPOSE (+6/-5 SEMITONES), TEMPO CHANGE (±30%)
• VOCAL REMOVER

SongBook

• FULLY PROGRAMMABLE MUSIC DATABASE BASED ON STYLES, MIDI SONGS (MID AND KAR FILES), MP3 SONGS WITH ARTIST AND GENRE TAGS
• FILTERING AND SORTING OPTIONS
• USER DEFINABLE SET LISTS

Compatibility

• LEGACY PA-SERIES MODELS: STYLES, KEYBOARD SETS (PERFORMANCES), SOUNDS (PROGRAMS), SONGS, PADS

Pads

• FACTORY: MORE THAN 970 PADS
• FOUR ASSIGNABLE PADS + STOP BUTTONS
• PAD RECORD FUNCTION

Control Section

• 9 ASSIGNABLE SLIDERS, 9 ASSIGNABLE BUTTONS, STRIP DISPLAY; 4 PRESET + 1 USER SETTINGS

Matrix Section

• 16 MATRIX PADS, 4 PRESET BUTTONS

Style/Song Controls

• PLAY/STOP, GO TO START, STYLE SELECT, SONG SELECT, XFADER, TEMPO +/-, TEMPO LOCK, TAP TEMPO/RESET, SYNCHRO START, SYNCHRO STOP, FADE IN/OUT, CHORD SCAN (LOWER, UPPER), CHORD SEQUENCE, MEMORY, AUTOFILL

General Controls

• MASTER VOLUME, OCTAVE TRANSPOSE, MASTER TRANSPOSE, DIAL, UP/+, DOWN/-, JOYSTICK (PITCH + MODULATION), RIBBON, 3 ASSIGNABLE SWITCHES, SEARCH, SHIFT, KEYBOARD SOUNDS ON/OFF, SPLIT, ENSEMBLE, REC/EDIT, MENU, EXIT

Scale Controls

• ON-SCREEN QUARTER TONE AND ARABIC SCALE, MEMORIZED IN THE KEYBOARD SETS; PRESETS ASSIGNABLE TO ANY BUTTON OR FOOTSWITCH

Control Inputs

• DAMPER PEDAL; SUPPORTS HALF-PEDALING WITH THE OPTIONAL KORG DS-1H PEDAL
• 2 ASSIGNABLE PEDAL/FOOTSWITCH

Audio Inputs

• MIC: MONO WITH GAIN CONTROL AND PHANTOM POWER (COMBO XLR, BALANCED)
• GUITAR: MONO WITH GAIN CONTROL (1/4" JACK, UNBALANCED)
• LINE 1: LEFT/RIGHT (1/4" JACKS, BALANCED)
• LINE 2: STEREO (1/8" MINI-JACK, UNBALANCED)

Audio Outputs

• LINE: MAIN LEFT/RIGHT, SEPARATE OUTS 1/2/3/4 (1/4" JACKS, BALANCED)
• HEADPHONES (1/4" JACK)

Video Output

• HDMI CONNECTOR

MIDI

• IN, OUT, THRU STANDARD MIDI CONNECTORS
• USB TO MIDI, THROUGH THE USB DEVICE PORT
• 16 USER-DEFINABLE MIDI PRESETS

USB

• TYPE A (HOST 3.0, FOR STORAGE DEVICES AND CONTROLLERS): 1 FRONT, 2 REAR
• TYPE B (DEVICE 2.0, FOR PERSONAL COMPUTERS AND TABLETS): 1 REAR

Storage

• INTERNAL DRIVE: 1 GB
• MICRO SD CARD (NOT INCLUDED): REAR-PANEL SLOT WITH PLASTIC COVER
• USB FLASH DRIVE (NOT INCLUDED): CAN BE CONNECTED TO THE USB HOST PORTS

Display

• 8" WIDE CAPACITIVE COLOR TOUCHVIEW™ TFT DISPLAY, 800 X 480 RESOLUTION

Clock

• INTERNAL SYSTEM CLOCK

Power Consumption

• 100-240 VOLTS, 50/60 HZ
• < 0.2 WATT IN STANDBY / 20 WATT NORMAL / 45 WATT WITH PAAS INSTALLED

Warranty

1 Year (Extended to 3 Years via Registration) Warranty
