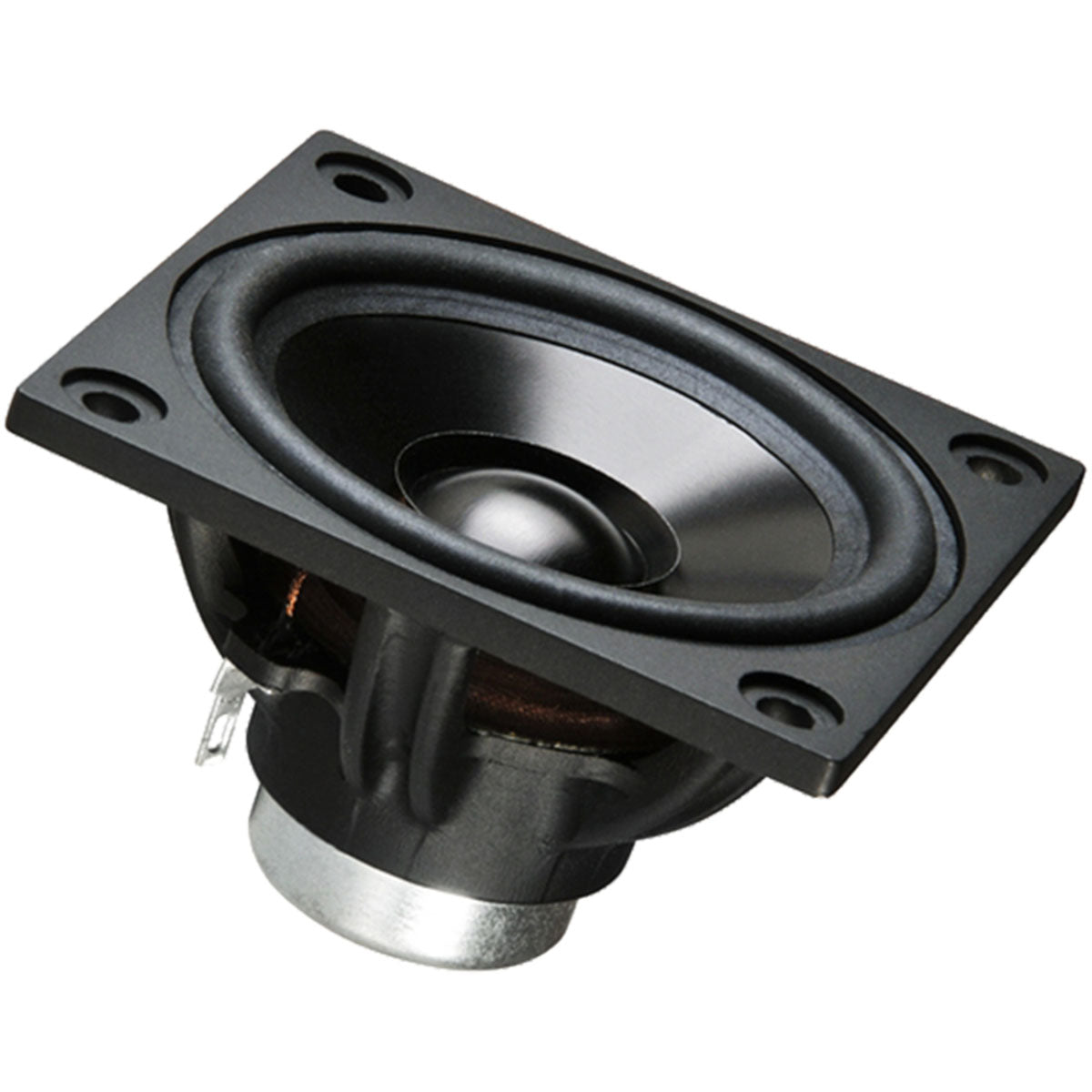

Celestion T5820 2.7 Inch 20W Full Range Speaker 8OHM

Specifications:

Compact and lightweight, full-range neodymium loudspeakers
Advanced Finite Element Analysis techniques used for acoustic, mechanical and electromagnetic modelling
Ideal for applications such as portable line arrays where actively controlled wavefront (beam steering) is used
Delivers wider dispersion to higher frequencies than many equivalent compact, full-range drivers on the market
Chassis purpose-designed for maximum free air movement, with square mounting frame to facilitate close coupling of multiple units
Stiff and light aluminium cone remains rigid to higher frequencies, delivering a smoother response in the critical listening band
Half roll elastomer surround provides damping for unwanted resonances and sustained centring control at extremes of excursion
Designed to be weather resistant for outdoor applications

Nominal diameter 2.75"/70mm
Power rating 120Wrms
Nominal impedance 8?
Sensitivity 284dB
Frequency range 160Hz-20kHz
Voice coil diameter 20mm/0.75in
Chassis type Glass reinforced ABS
Magnet type Neodymium
Coil material Round Copper
Former material Polyimide
Cone material Aluminium
Surround material Elastomer
Xmax3 1.5mm/0.06in
Gap depth 3mm/0.12in
Voice coil winding width 6mm/0.24in
Voice coil material Round Copper
Voice coil former material Polyimide
Bandwidth 190Hz-20kHz
Mounting Information
Overall depth 1.8"/45mm
Overall size 2.8" x 2.8"/71.3 x 71.3mm
Cut-out diameter 2.6"/66.1mm
Fitting 4 x M4 holes
Mounting PCD range Ø3.2"/82mm
Unit weight 100g/3.53oz

PRODUCT CODE: 28/AN2775
PRODUCT BRAND: Celestion
SHIPPING WEIGHT: 0.15kg
