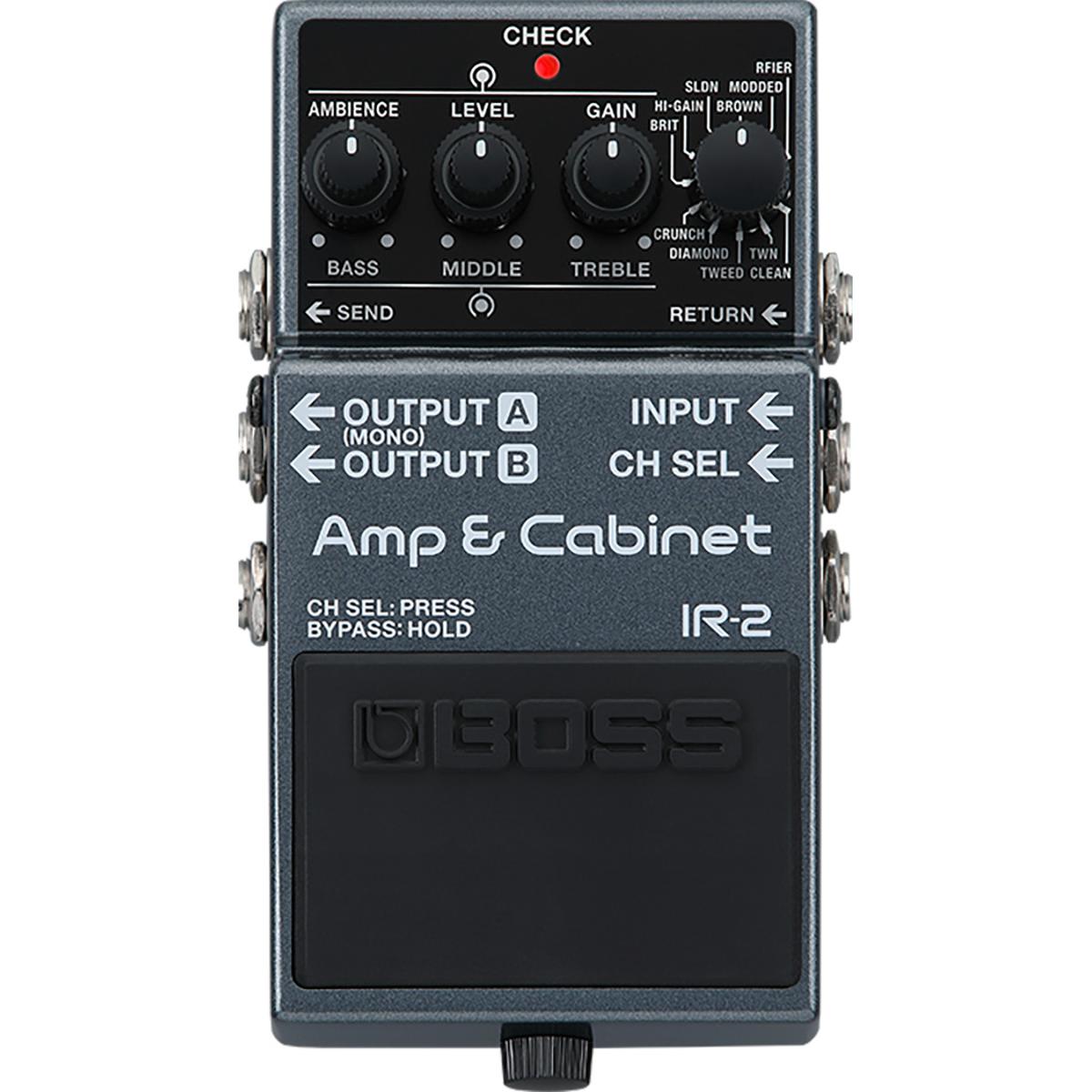

Boss IR-2 Amp & Cabinet Effects Pedal IR2

Specifications

Sampling Frequency

• 96 kHz

AD Conversion

• 24 bits + AF method
• AF Method (Adaptive Focus method):
  • A proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.

DA Conversion

• 32 bits

Processing

• 32-bit floating point
• IR cabinet data format:
  • Mono, Maximum 500 ms, 44.1/48/96 kHz, 16 bits linear/24 bits linear/32-bit floating point
• Preset IR cabinet: 11
• User IR cabinet slot: 11
  • These are the same slots as the preset IR cabinet.

Input/Output Levels

• Nominal Input Level:
  • INPUT, RETURN: -20 dBu
• Maximum Input Level:
  • INPUT, RETURN: +7 dBu
• Input Impedance:
  • INPUT, RETURN: 1 MΩ
• Nominal Output Level:
  • OUTPUT A (MONO), OUTPUT B, SEND, PHONES: -20 dBu
• Maximum Output Level:
  • OUTPUT A (MONO), OUTPUT B, SEND, PHONES: +7 dBu
• Output Impedance:
  • OUTPUT A (MONO), OUTPUT B, SEND: 1 kΩ
  • PHONES: 44 Ω
• Recommended Load Impedance:
  • OUTPUT A (MONO), OUTPUT B, SEND: 10 kΩ or greater
  • PHONES: 44 Ω or greater

Bypass

• Buffered bypass

Controls

• Type knob
• GAIN knob
• TREBLE knob
• LEVEL knob
• MIDDLE knob
• AMBIENCE knob
• BASS knob
• Pedal switch

Indicator

• CHECK indicator (Used for indication of Channel and check battery)

Connectors

• INPUT jack, OUTPUT A (MONO) jack, OUTPUT B jack, SEND jack: 1/4-inch phone type
• RETURN jack: 1/4-inch TRS phone type
• CH SEL jack: 1/4-inch phone type
• DC IN jack
• PHONES jack: Stereo miniature phone type
• USB port: USB Type-C(R)

Power Supply

• Alkaline battery (9 V, 6LR61 or 6LF22, commercially available)
• AC adaptor (PSA series: sold separately)

Current Draw

• 160 mA

Expected Battery Life

• Alkaline: Approx. 3.5 hours (6LR61)
• These figures will vary depending on the actual conditions of use.

Accessories

• Leaflet (“USING THE UNIT SAFELY,” ”IMPORTANT NOTES,” and ”Information”)
• Dry battery (9 V, 6LR61 or 6LF22)
