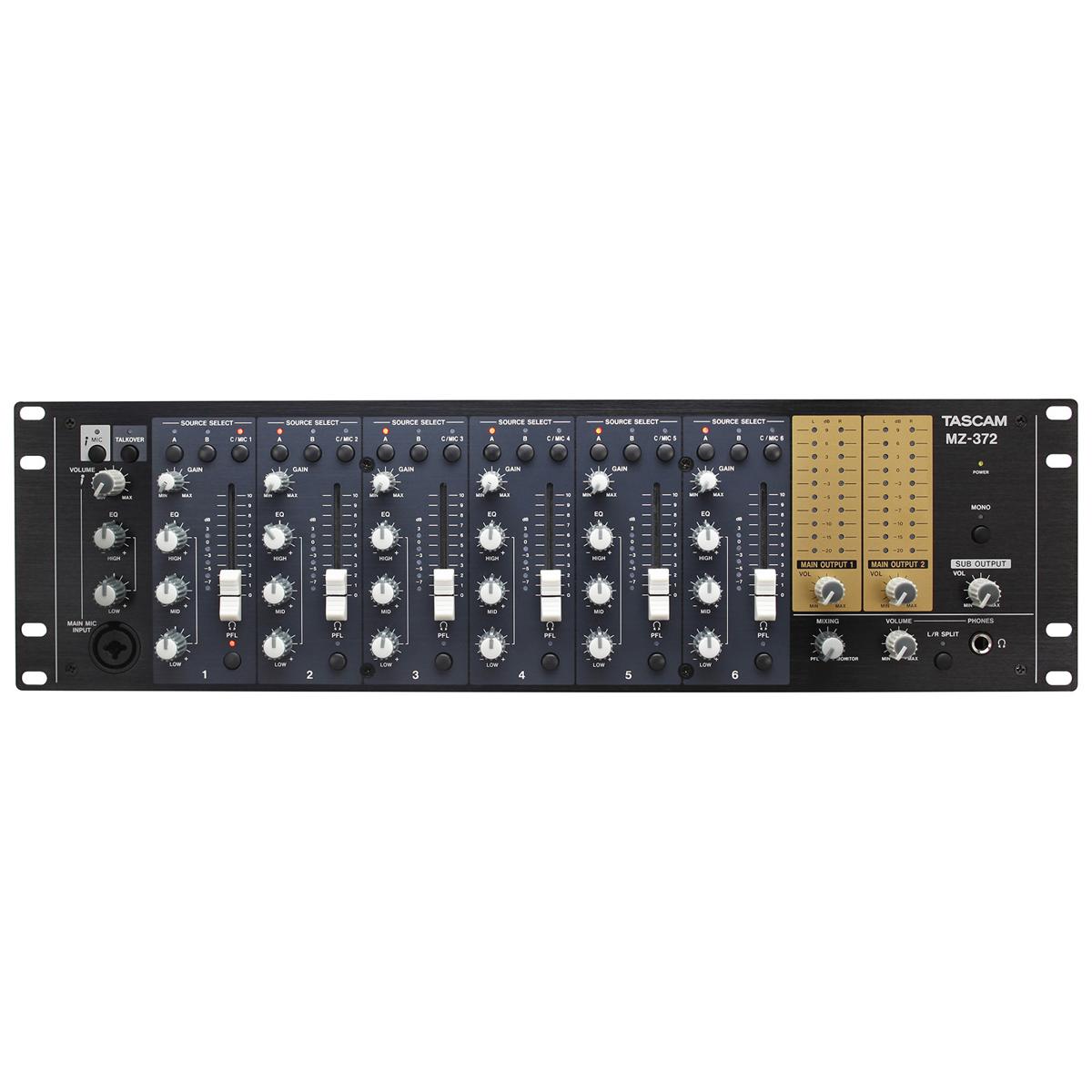

Tascam MZ-372 Industrial-Grade Professional Audio Zone Mixer

Specifications

Audio Inputs
MAIN MIC INPUT (Balanced)
Connectors	XLR 3-31 / 1/4" (6.3mm) TRS combo jack × 1 (1: GND, 2: HOT, 3: COLD) / (Tip: HOT, Ring: COLD, Sleeve: GND)
Nominal Input Level	VOLUME knob at MAX: –65dBu VOLUME knob at MIN: –30dBu
Input Impedance	33kΩ
MIC INPUTS (Balanced)
Connectors	XLR 3-31 × 6 (1: GND, 2: HOT, 3: COLD)
Set to MIC
Maximum Input Level	–30dBu
Minimum Input Level	–65dBu
Input Impedance	33kΩ
Set to LINE
Maximum Input Level	–1dBu
Minimum Input Level	20dBu
Input Impedance	22kΩ
LINE INPUTS (Unbalanced)
Connectors	RCA Pin jack × 12 pairs
Nominal Input Level	–10dBV
Maximum Input Level	10dBV
Input Impedance	22kΩ
Audio Outputs
MAIN OUTPUTS (Unbalanced)
Connectors	RCA Pin jack × 2 pairs
Rated Output Level	–10dBV
Maximum Output Level	6dBV
Output Impedance	200Ω
MAIN OUTPUTS (Balanced)
Connectors	XLR 3-31 × 2 pairs (1: GND, 2: HOT, 3: COLD)
Rated Output Level	4dBu
Maximum Output Level	24dBu
Output Impedance	200Ω
SUB OUTPUT
Connectors	RCA Pin jack × 1 pair
Rated Output Level	–16 dBV
Maximum Output Level	0dBV
Output Impedance	200Ω
MONITOR OUT
Connectors	RCA Pin jack × 1 pair
Rated Output Level	–16 dBV
Maximum Output Level	0 dBV
Output Impedance	200Ω
PHONES
Connectors	1/4" (6.3mm) Stereo phone jack × 1
Maximum Output	50mW + 50mW (into 32Ω load)
Power
AC Adapter	Dedicated AC adapter (TASCAM PS-M1524)
Input Voltage	AC 100 - 240V, 50/60Hz
Output Voltage	DC 15V
Output Current	2.4A
Power Consumption	35W
Dimensions (W×H×D)
19.0" × 5.2" × 3.7" / 482 × 132 × 93.2 mm
Weight
7.1 lbs. / 3.2 kg
Accessory
AC Adapter (TASCAM PS-M1524), Cord for AC Adapter (JAPAN USA/EUROPE) × each1, Rackmount Screw Kit, Owner's Manual (including warranty)

Warranty

1 Year (Extended to 3 Years via Registration) Warranty
