RC-W100-R120

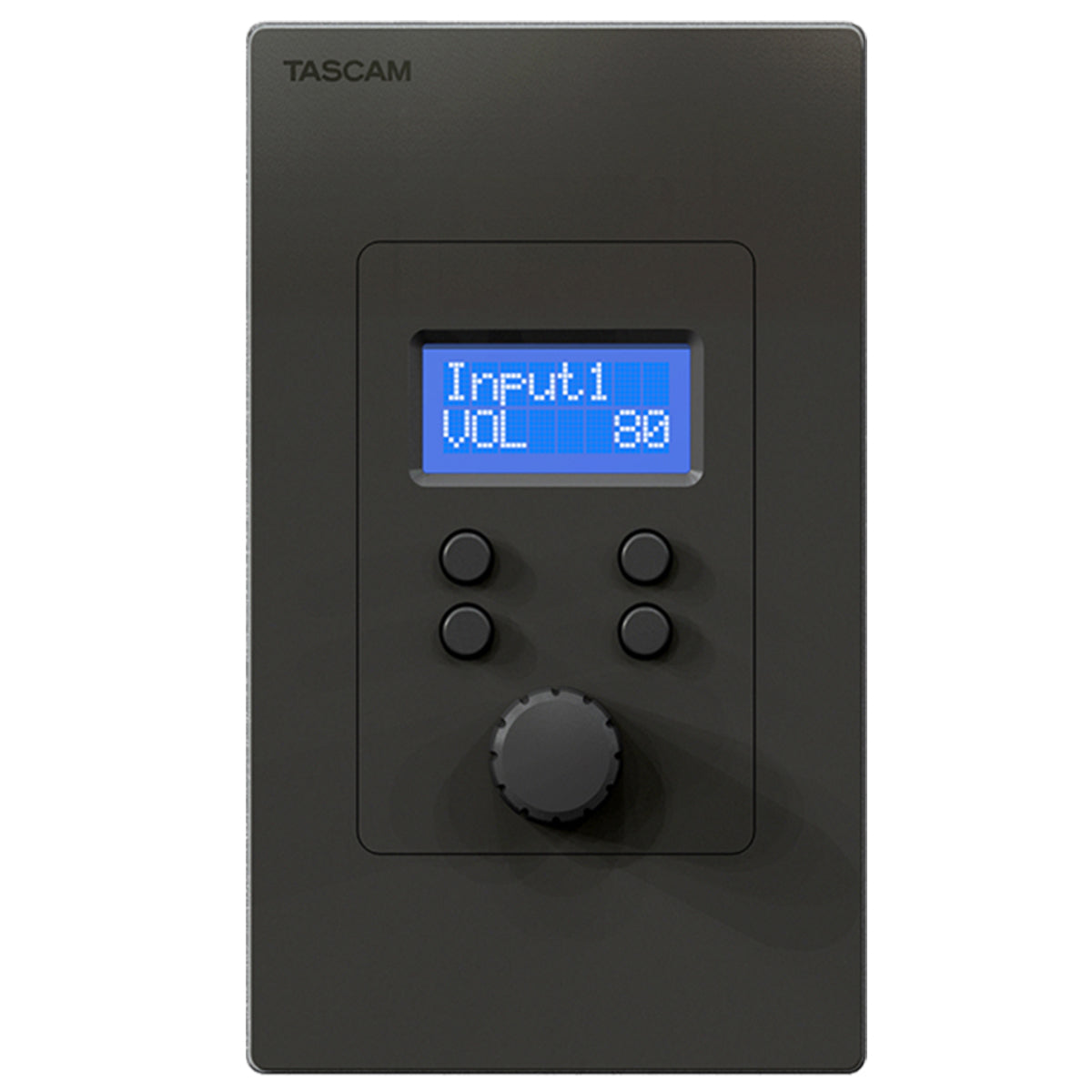

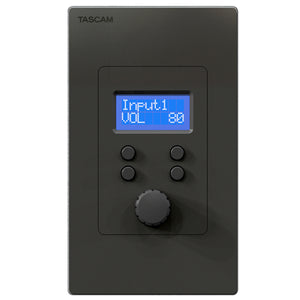

Tascam RC-W100-R120 Wall Mount Controllers for Tascam MX-8A

Pay With AfterPay Zip

Product Information:

The RC-W100-R120 / RC-W100-R86 Wall Mount Controllers for the MX-8A 8 Input /8 Output Matrix Mixer with DSP. Designed for quick and easy operation in meeting rooms, lecture halls, stores, restaurants, and multipurpose spaces, the RC-W100-R120 / RC-W100-R86 Wall Mount Controllers incorporate an easy-to-read LCD display, one rotary encoder with a push switch, and four push button switches.

Two different panel sizes are available
RC-W100
The two models address a variety of world markets, with the RC-W100-R120 designed for the U.S. and Japan, while the RC-W100-R86 is compatible with switch boxes in Europe.

  • Wall-mounted programmable controller for MX-8A
  • Equipped with 1 encoder (with push switch) and 4 switches
  • Enables switching sources and adjusting volume (including muting)
  • Functions can be assigned to the encoder and the switches using TASCAM MX CONNECT
  • Prevents end-users from making mistakes by assigning only necessary functions to the controller
  • Two source switching modes available
  • Easy-to-read display
  • Name of the selected source and current volume can be checked
  • Automatic backlight off function
  • Daisy chaining of up to 8 units is possible using cables rated category 5e or higher (maximum length 200 m)
  • Power supply can be provided to the unit via MX-8A (RS-485)
  • Reduces power construction and installation costs
  • Two different panel sizes are available
  • RC-W100-R120 and RC-W100-R86 are sold separately
  • "RC-W100-R120" is compatible with switch boxes commonly used mainly in the US and Japan.
  • "RC-W100-R86" is compatible with switch boxes commonly used mainly in Europe.
  • * TASCAM MX CONNECT Software V1.2.0 or upwards is needed to use the RC-W100.

Specifications:

  • Model:RC-W100-R120 | RC-W100-R86
  • Input/output ratings
  • RS-485 connector *
  • Connector: RJ-45 x2
  • Cables: category 5e or higher cables
  • General
  • Power: powered by MX-8A
  • Power consumption: 0.24W | 0.24W
  • Dimensions: 70 x 114 x 54 mm (W x H x D, including protrusions) 87 x 87 x 54 mm (W x H x D, including protrusions)
  • Weight: 140g | 140g
  • Operating temperature range: 0 - 40°C (32 - 104°F)
  • Included items: Owner's Manual (including warranty)
