KO-MINILOGUEXD
Pay With
Product Information:
An evolved next-generation analog synthesizer with huge potential for sound design and performance.
We wanted to deliver a next-generation analog synthesizer for a new generation of musicians new to analog synthesis. That dream was realized in the development of the minilogue, which instantly made the analog synthesizer approachable.
In addition to emphasizing the same real analog sound and joy of controlling an electronic musical instrument offered by the original minilogue, the minilogue xd newly adds a digital multi-engine, effects, a powered-up sequencer, and micro tuning functionality, further expanding the possibilities for sound design and performance potential.
minilogue xd is a fitting addition to the original groundbreaking minilogue.
Analog synthesizer circuit that shatters expectations for its class
Four-voice polyphonic analog synthesis. The analog synthesizer circuit of the minilogue, whose genuine analog sound had a huge impact on the synth world, has been further developed for the minilogue xd.
Voice structure of minilogue xd is 2VCO + MULTI ENGINE, 1VCF, 2EG, 1VCA, and 1LFO. In addition to the distinctive circuits found in the series, such as wave shaping to shape the overtones of the oscillator and a sync/ring switch, there's also cross modulation, a sharp two-pole filter, and a drive switch that adds thickness and drives signal into minilogue xd’s filter. Every parameter has been tuned in detail based on what musicians want out of their synth. The sounds range from the warm pads typical of analog to fat basses and crisp lead sounds, covering every situation.
Specifications:
Keyboard
37-keys (Slim-key, velocity sensitive)
Sound Generation
Analogue sound generator + Multi digital sound generator (Noise, VPM, User)
Maximum Polyphony
4 voices
Programs
500 voices (more than 200 preload, 300 user programs).
Each program provides a program sort function that includes voice mode settings.
Favorite function built in.
Voice Mode
4 (POLY, UNISON, CHORD, ARP / LATCH).
The VOICE MODE DEPTH setting allows different parameters to be varied for each mode.
Sequencer
16-step polyphonic sequencer
Motion sequence can be used on up to four parameters
Main Synthesis
Parameters VCO1 WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
VCO2 WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
MODULATION SYNC, RING, CROSS MOD DEPTH
MULTI ENGINE NOISE/VPM/USER, TYPE、SHAPE
MIXER VCO1, VCO2, MULTI
VCF CUTOFF, RESONANCE, DRIVE, KEYTRACK
AMP EG ATTACK, DECAY, SUSTAIN, RELEASE
EG ATTACK, DECAY, EG INT, TARGET (PITCH, PITCH2, CUTOFF)
LFO WAVE (SAW, TRIANGLE, SQUARE), MODE（BPM, NORMAL, 1-SHOT), RATE, INT, TARGET (PITCH, SHAPE, CUTOFF)
Main effect Parameters
EFFECT TYPE (MODULATION, REVERB, DELAY), ON/OFF (SELECT, ON, OFF), TIME, DEPTH
MULTI ENGINE
Noise Generator 4 types
VPM oscillator 16 types
User oscillator 16 slots
MOD EFFECTS
CHORUS 8 types
ENSEMBLE 3 types
PHASER 8 types
FLANGER 8 types
USER 8 types
DELAY
DELAY 12 types
USER 8 slots
REVERB
REVERB 10 types
USER 8 slots
Controls
Joy stick that can modify different parameters for each program, PORTAMENTO knob
Display
Main Real-time OLED oscilloscope provides visual feedback of parameter changes
MULTI ENGINE section 7 segments x 6 digit LED display

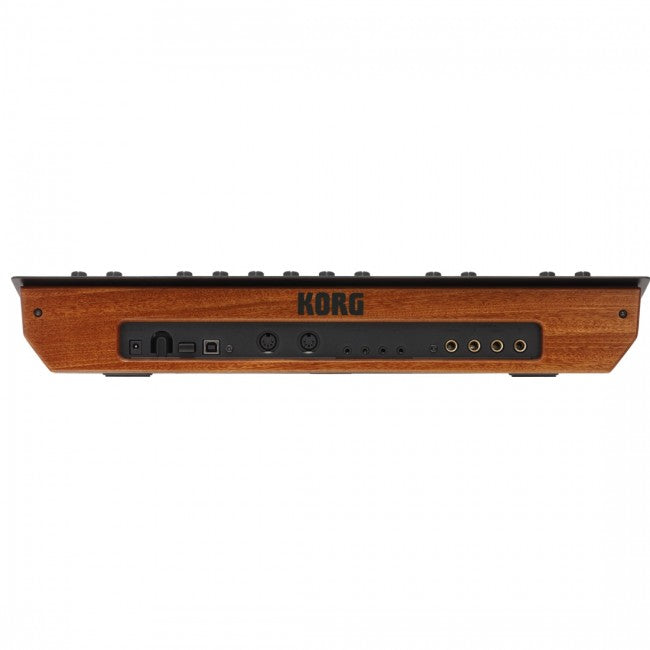

Input/Output connectors
Headphone jack (Stereo phone jack)
OUTPUT L/MONO, R jacks (monaural phone jack unbalanced)
CV IN 1, CV IN 2 jacks (3.5 mm [1/8"] monoural mini jack, Input voltage: -5 V – +5 V (Modulation mode), -3V – +5 V (CV/Gate mode)
SYNC IN jack (3.5 mm [1/8"] mini jack, maximum input level 20 V)
SYNC OUT jack (3.5 mm [1/8"] mini jack, output level 5 V)
MIDI IN jack
MIDI OUT jack
USB B jack
DAMPER jack (half damper is not supported)
Power Supply
AC adapter (DC9 V)
Power Consumption
8 W
Dimensions (W x D x H)
500 mm x 300 mm x 85 mm / 19.69" x 11.81" x 3.35"
Weight
2.8 kg / 6.17 lbs.
Included Items
C adapter
Accessories (sold separetely)
SC-MINILOGUE Soft shall case
SEQUENZ MP-TB1 MULTI-PURPOSE TALL BACKPACK
SQ-CABLE-6 Sync cable
DS-1H Damper pedal
PS-1 Pedal switch
PS-3 Pedal switch
