14/XPDM-HEADSET
Product Information
Samson makes wireless easier than ever with the XPDm Headset Digital Wireless System, a unique wireless microphone solution that is ideal for presenters, fitness instructors, educators and interviewers. This digital wireless system operates on the 2.4GHz license-free frequency and offers professional full-range audio and 100’ of wireless operation at an unbeatable value.
Simple Addition
Easily integrate the XPDm Headset System into your audio setup with a lightweight and portable RXD1M receiver that has XLR, 1/4” and 1/8” outputs. Simply pair the handheld PXD1 transmitter to the receiver via the pair button for straightforward synching.
Digital Wireless Technology
The XPDm Lavalier System delivers high-quality audio using 2.4GHz digital transmission. This wireless technology allows the microphone transmitter to send an uncompressed signal to the receiver and offers a greater signal-to-noise when compared to traditional wireless systems.
Ready Set Headset

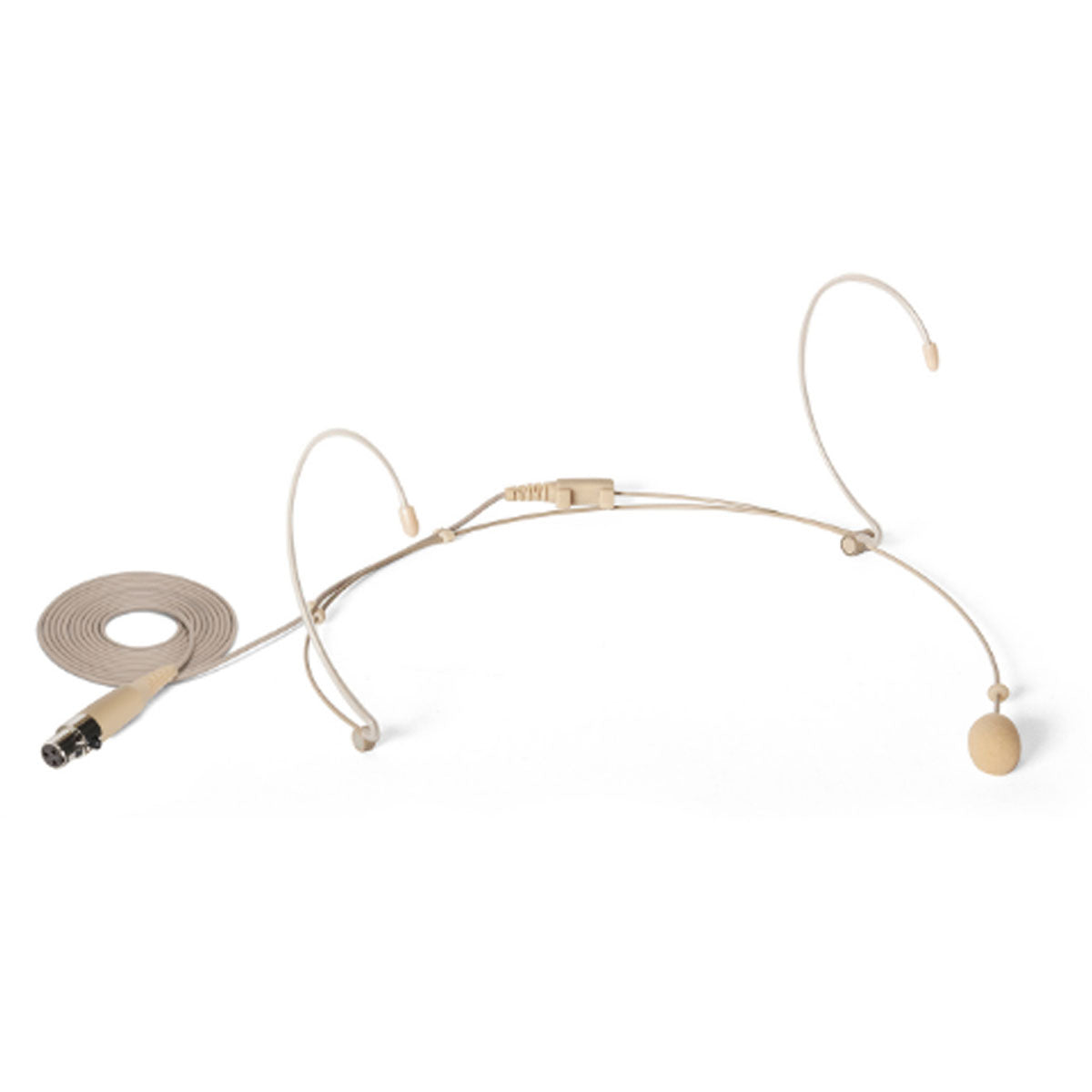

The PXD1 beltpack transmitter allows for 100’ of wireless range and provides up to 20 hours of use on two AA batteries. The DE5 Omnidirectional Headset Microphone is a unique double ear headset that is designed to hold the mic in place when the user is in motion. The omnidirectional pickup pattern captures vocals for a clear and articulate sound regardless of the position of the capsule to the sound source. Included is a clothing cable clip for inconspicuous and unobtrusive cable placement as well as a windscreen to reduce wind noises and P-pops.
Specifications

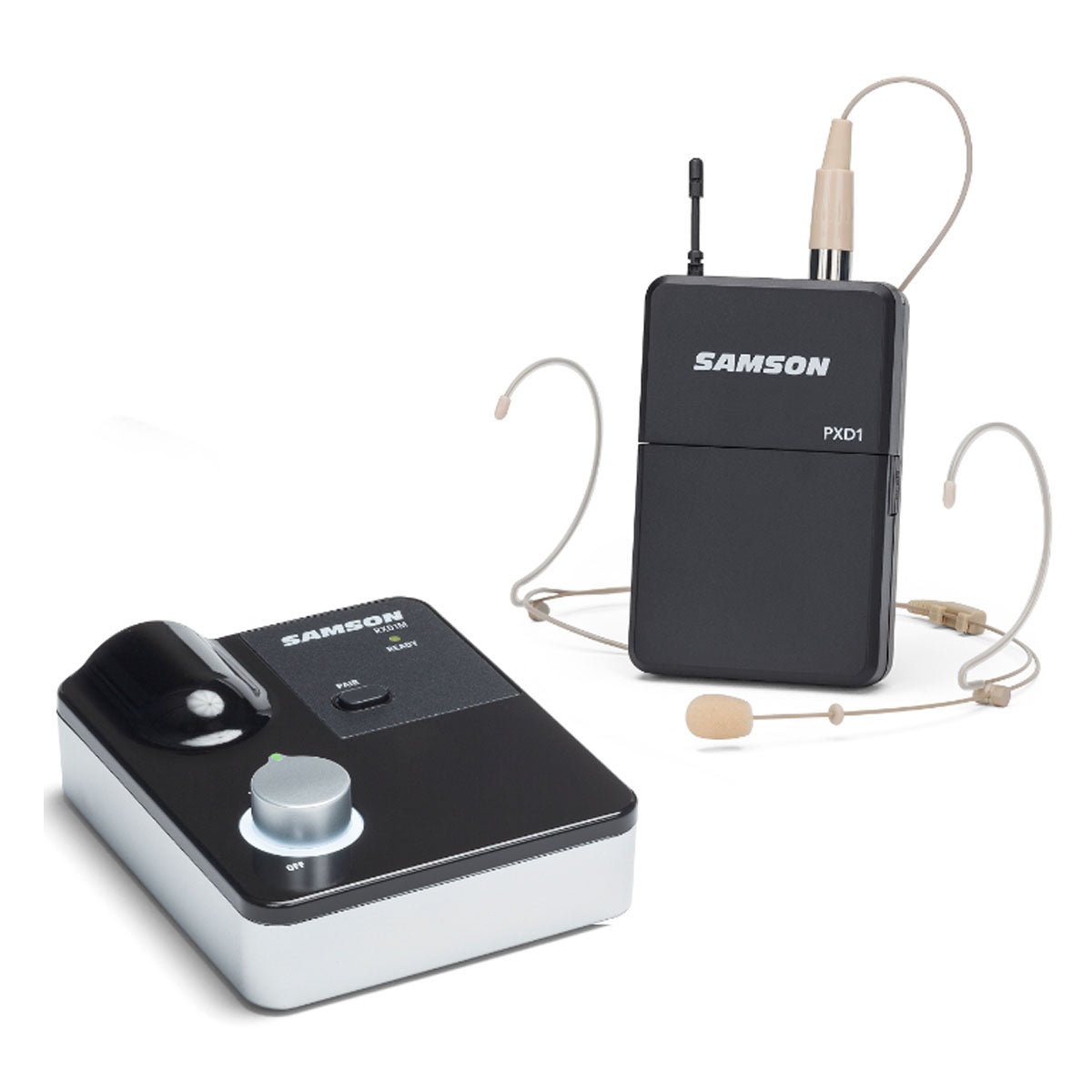

XPDm Headset Digital Wireless System
Dual-channel, high performance digital wireless system
Operates on 2.4GHz License-free frequency

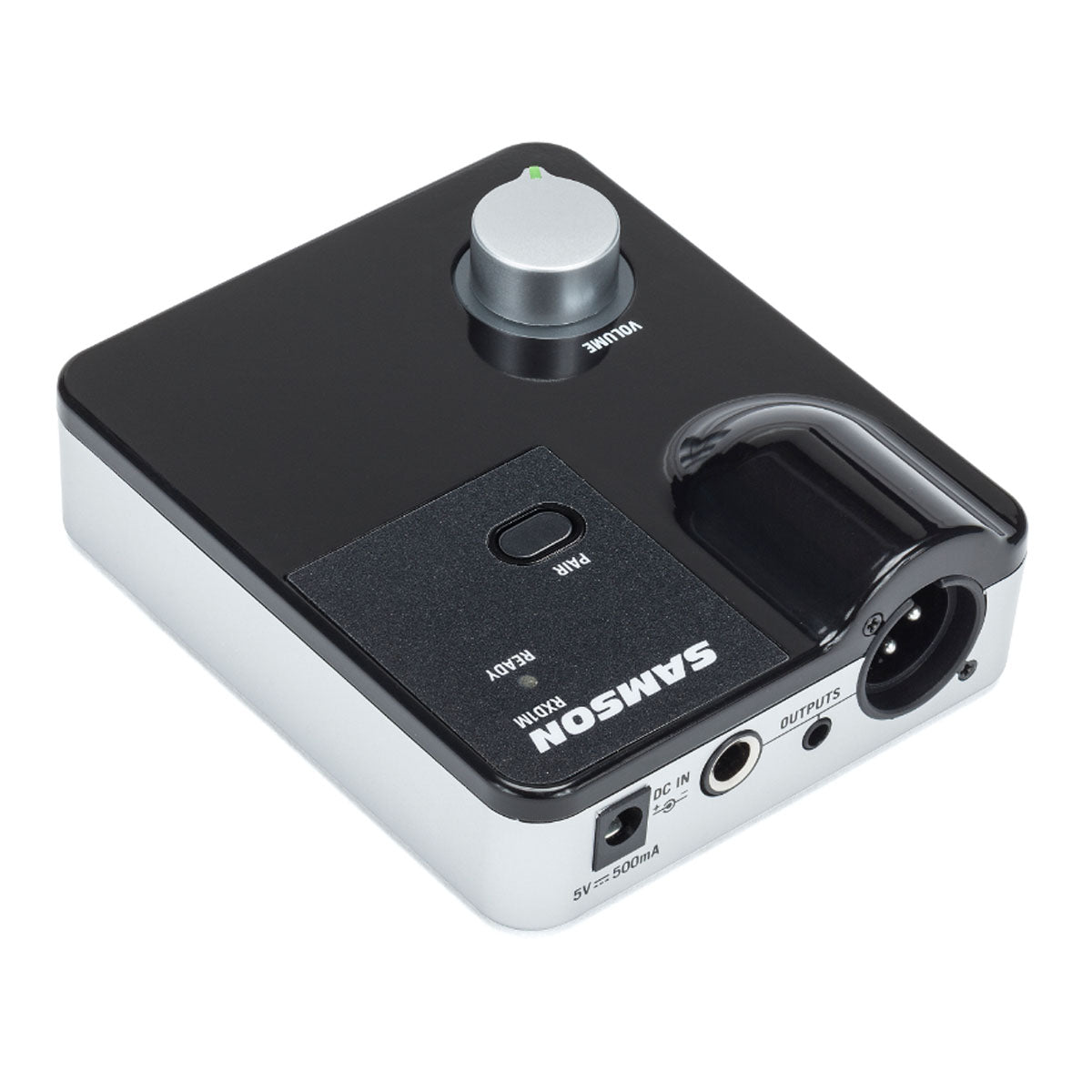

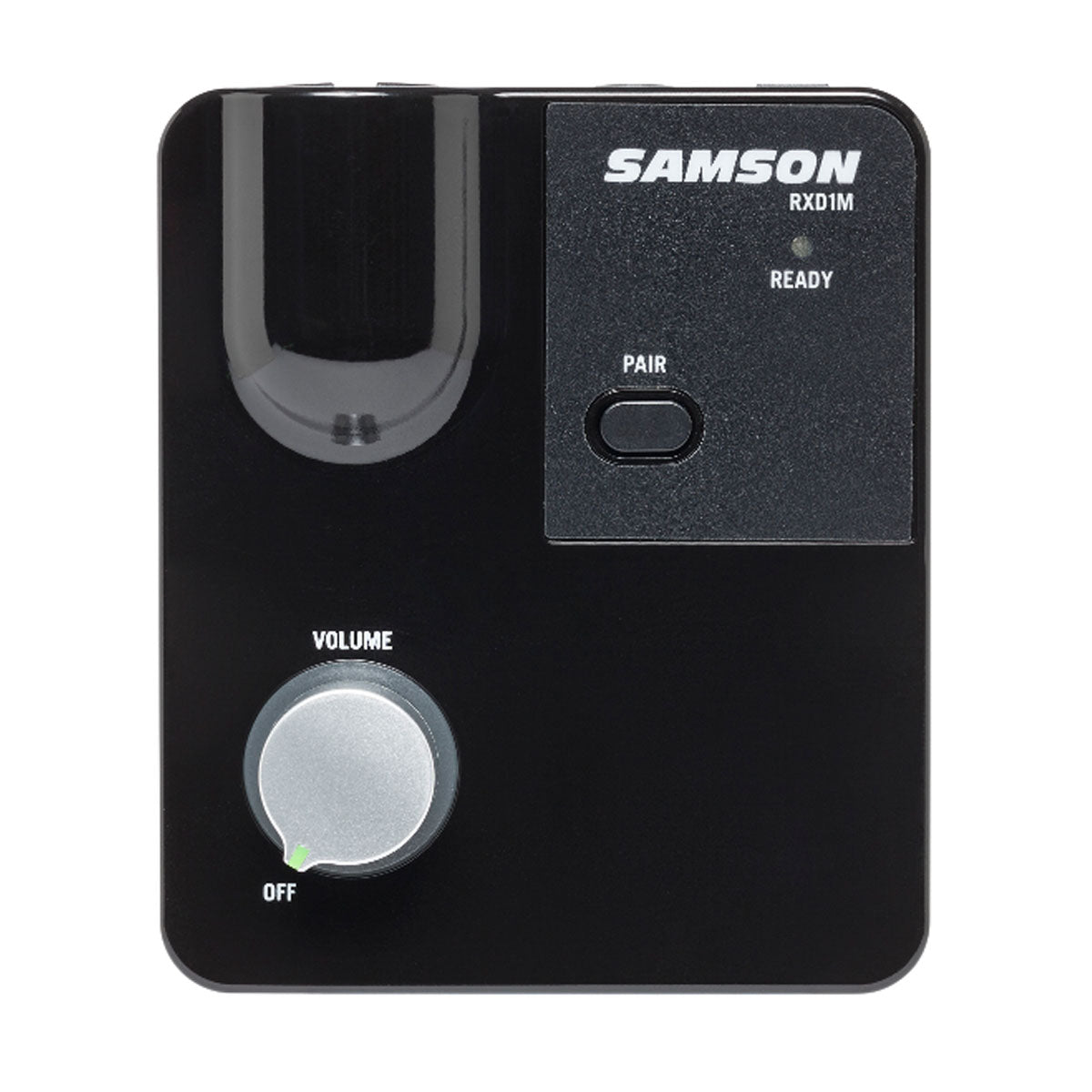

RXD1M Tabletop Receiver

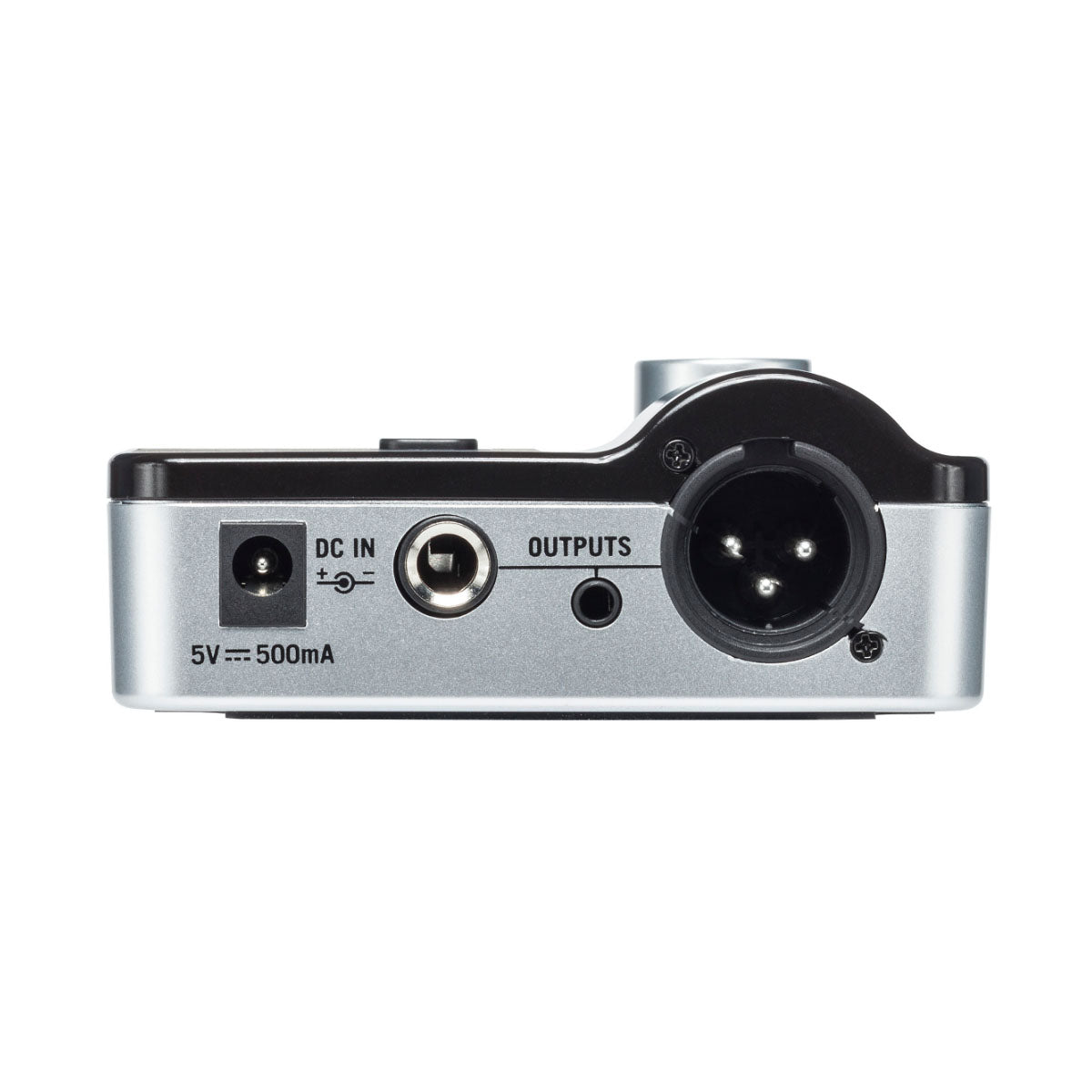

Balanced XLR, unbalanced 1/4” and unbalanced 1/8” outputs
One-touch pairing button
Rotary volume knob with integral power switch
PXD1 Beltpack Transmitter
Includes DE5 Omnidirectional Headset Microphone
Offers up to 20 hours of battery life using two AA batteries
300’ operating range
RXD1M Digital Receiver
Simultaneous Systems: 2
Working Range: 100' (30m) line of sight
Working Frequency: 2.404~2.476GHz
Modulation type: GFSK
Audio Frequency Response: 20Hz–16KHz
T.H.D.: <0.1% (@ 1KHz, -10dBu)
Signal to Noise: >85dB
Audio Output Level
1/8" (3.5mm) & 1/4" Jack (unbalanced): 5dBu
XLR Jack (balanced): 5dBu
Audio Output Impedance
1/8" (3.5mm) & 1/4" Jack (unbalanced): 2KΩ
XLR output jack (balanced): 4.5KΩ
RF Sensitivity: -78dBm/20dB SINAD
Operating Voltage: 5V/500mA
Product Dimensions: 4.25" (110mm) x 3.75" (95mm) x 1.5" (39mm)
Product Weight: 0.33lb (152g)
