Product Information

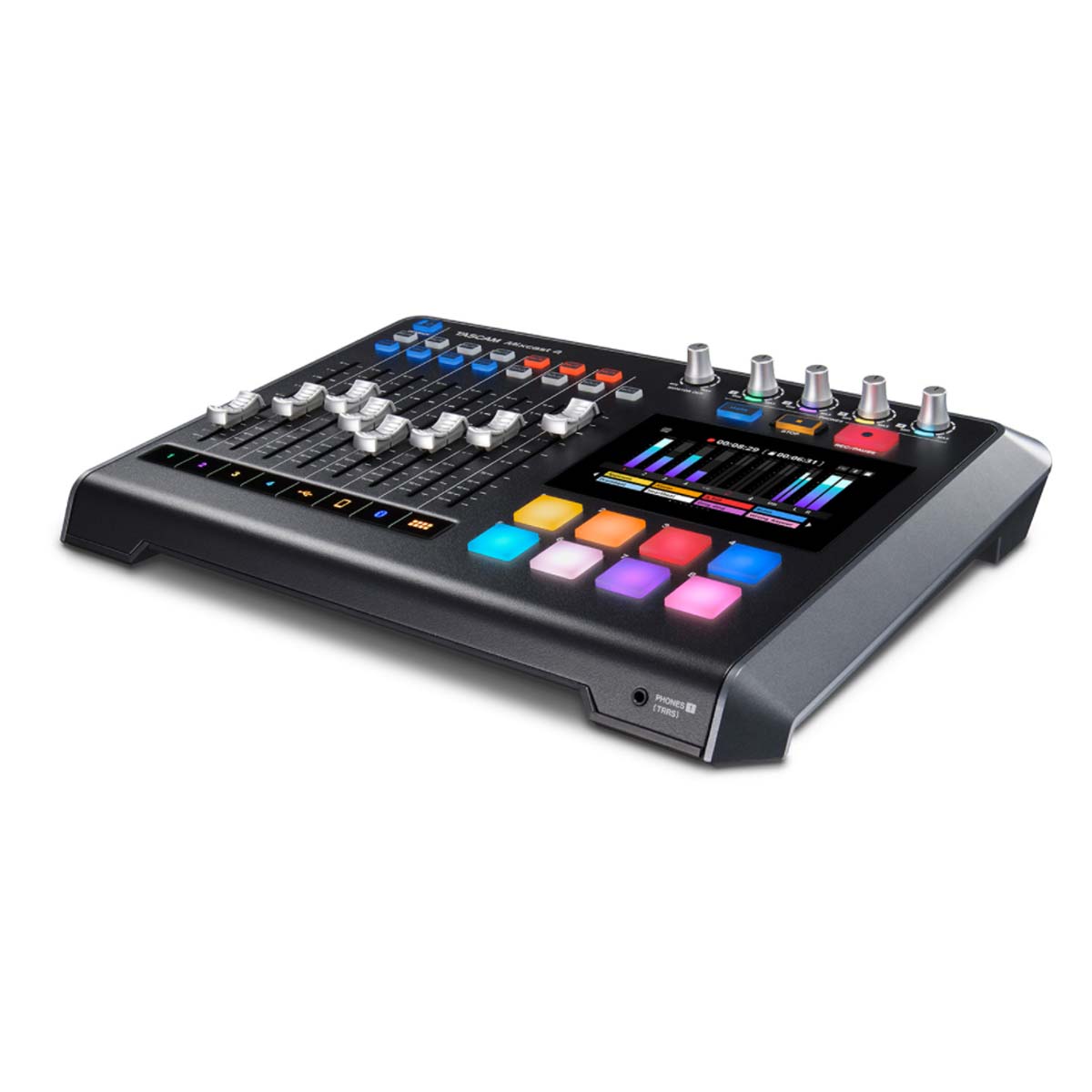

TASCAM, recognized globally as a leader in audio production solutions, is pleased to introduce the Mixcast 4 Podcast Station. Ideal for podcast creation, live streaming, event production, or voice over, the Mixcast 4 can mix and record mic inputs, internal sounds and music via the system’s trigger pads, as well as external audio input from a phone or PC. Mixcast 4 has an internal 14-track recorder that records directly to an SD card. With a rich feature set and the TASCAM Podcast Editor software, the new Mixcast 4 offers a complete audio production environment from pre-production to project completion.
The Mixcast 4 provides a stress-free interface that incorporates 4 TRS/XLR combo jack mic inputs and 4 individual headphone outputs—making it effortless for as many as four podcasters to interact with each another. With the included auto-mixing function that automatically adjusts optimal levels, the Mixcast 4 makes it a snap to get professional results. Combined with the included 5-inch color touch screen that provides quick and intuitive access to desired menu control settings, the system enables podcasters to focus on their content without being distracted by complex operational tasks.
Unique to the Mixcast 4 is the included original TASCAM Podcast Editor software, which offers straightforward and practical editing of audio content, track arming, as well as configuration and assignment of sound effects and background music to the unit’s sound pads. The software fully integrates with Mixcast 4 and offers intuitive graphics and easy operation that help users with their production—eliminating the need for experience with DAW (Digital Audio Workstation) software. No special driver is needed when used directly with Mixcast 4 and the software supports Windows, Mac OS, and iOS. Android OS will be supported in a future update. The Podcast Editor can be downloaded free of charge from TASCAM website and App Store.
The Mixcast 4 comes with 8 fully customizable sound pads that are 8 banks deep—providing a wealth of opportunity for one’s creative endeavors. In addition to preset sound effects, users can assign new sounds or even pre-recorded mic sounds that have been recorded on the unit. The Mixcast 4 sound pads also allow for easy and real-time voice effects such as voice transformation, reverb, and more to make live-streams and recordings even more interesting and fun.
Adding still greater flexibility, the Mixcast 4 offers several additional important functions, including a 14-input / 2-output USB audio interface for direct multi-track recording to a computer or other device, and support for a Bluetooth connection that allows recording phone calls or playing background music from paired smartphones or tablets.
In addition, the TASCAM Mixcast 4 offers stereo line inputs that are selectable between 1/4” TRS and 3.5mm TRRS to easily mix and record phone conversations or input other sound sources like musical instruments. There is also has PC connectivity that enables the unit to import sounds from a computer. Other outputs include a front top panel 3.5mm TRRS headphone out that can mirror the output of headphone 1, along with stereo 1/4” TRS Main Monitor Outputs and a 3.5mm Stereo Line Out. The result is unparalleled flexibility and operational ease that must be experienced to be appreciated.
The TASCAM Mixcast 4 Podcast Station is expected to be available Q3, 2021. For pricing information, contact your authorized TASCAM dealer.
Specifications
| Recorder specifications | |
| Recording media | SD cards (64 MB to 2 GB), SDHC cards (4 GB to 32 GB), SDXC cards (48 GB to 512 GB) |
| Recording/playback formats | |
| WAV(BWF) | 48 kHz, 24 bit, 2 ch Stereo/14 ch Poly |
| Max. recordable tracks | 14 tracks (12 track + 2 mix) |
| Analog audio input ratings | |
| MIC INPUT jacks (1-4) | |
| Connectors | XLR/TRS combo jacks |
| XLR | XLR-3-31 (1: GND, 2: HOT, 3: COLD) |
| TRS | 6.3mm (1/4") standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND) |
| Maximum input level | +10 dBu (when LEVEL at min.) |
| Nominal input level | -10 dBu (when LEVEL at min.) |
| Minimum input level | -76.5 dBu (when LEVEL at max.) |
| Gain range | 66.5 dB |
| Input impedance | 2.1 kΩ |
| PHONES (TRRS) 1 jack (CTIA standard) | |
| Connector | 3.5 mm (1/8") 4-pole mini jack |
| Maximum input level | +4 dBV (when LEVEL at min.) |
| Nominal input level | -16 dBV (when LEVEL at min.) |
| Minimum input level | -82.5 dBV (when LEVEL at max.) |
| Gain range | 66.5 dB |
| Input impedance | 2 kΩ |
| LINE IN (TRRS) jack (CTIA standard) | |
| Connector | 3.5 mm (1/8") 4-pole mini jack |
| Maximum input level | +8 dBV |
| Nominal input level | -12 dBV |
| Input impedance | 12 kΩ |
| LINE IN L/R (balanced) jacks | |
| Connectors | 6.3mm (1/4") standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND) |
| Maximum input level | +24 dBu |
| Nominal input level | +4 dBu |
| Input impedance | 11 kΩ |
| Analog audio output ratings | |
| PHONES jacks (1-4) | |
| Connectors | 6.3mm (1/4") standard stereo jacks |
| Maximum output | 45 mW + 45 mW (0.1% THD+N or less, into 32Ω load) |
| PHONES (TRRS) 1 jack (CTIA standard) | |
| Connector | 3.5 mm (1/8") 4-pole mini jack PHONES (TRRS) 1 output splits from PHONES 1 output |
| LINE OUT (TRRS) jack (CTIA standard) | |
| Connector | 3.5 mm (1/8") 4-pole mini jack |
| Maximum output level | -25 dBu |
| Nominal output level | -45 dBu |
| Output impedance | 100 Ω |
| MONITOR OUT L/R (balanced) jacks | |
| Connectors | 6.3mm (1/4") standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND) |
| Maximum output level | +20 dBu |
| Nominal output level | +0 dBu |
| Output impedance | 200 Ω |
| LINE OUT jack | |
| Connector | 3.5mm (1/8") stereo mini jack |
| Maximum output level | +6 dBv |
| Nominal output level | -14 dBv |
| Output impedance | 200 Ω |
| Control input/output | |
| USB port | |
| Connector | USB Type-C |
| Formats | USB2.0 HIGH SPEED USB AUDIO CLASS 2.0 USB MASS STORAGE CLASS |
| Bluetooth® | |
| Output class | 2 (about 10m* unobstructed transmission distance) |
| Supported profile | A2DP |
| Supported A2DP codecs | SBC, AAC |
| Supported A2DP content protection | SCMS-T |
| Recording times (in hours: minutes) | Recording format: 24-bit / 48kHz WAV 14 ch: 0:35 (4 GB) / 1:10 (8 GB) 2 ch: 4:07 (4 GB) / 8:15 (8 GB) The recording times shown above are not continuous recording times. They are total recordable times for SD/SDHC/SDXC cards. |
| Power | Dedicated AC adapter (PS-P1220E NUT), DC 12 V |
| Power consumption | 12.5 W (maximum) |
| Weight | 2.55 kg |
| Operating temperature range | 0 - 40°C |
| Dimensions | 374.8(W) × 56.5(H) × 263.6(D) mm (excluding protrusions) 374.8(W) × 71.2(H) × 266.7(D) mm (including protrusions) |
| Include items | AC adapter (PS-1220E NUT), USB Type-C to Type-C cable, Owner's manual (inc. warranty) |
* The transmission distance is an estimate. The transmission distance may vary depending on the surrounding environment and radio wave conditions.
Audio Performance
| Mic amp EIN (equivalent input noise) | -125 dBu or less (150Ω termination, LEVEL at max.) |
| Frequency response | Mic input jacks (1-4) 20 Hz - 20 kHz: +0.3 dB / -0.3 dB (JEITA) |
| S/N ratio | 101 dB( Mic input jacks (1-4), channel faders at 0, 20kHz SPCL LPF +A-Weight) |
| Distortion | 0.003% ( Mic input jacks (1-4), 1kHz sine wave, channel faders at 0, 20kHz SPCL LPF) |
| Crosstalk | 95 dB or more Note: Measurement conditions conform to JEITA CP-2905B. |
Supported OS'
Windows
Windows 10 (May 2021 Update) New
Mac
macOS Big Sur , macOS CatalinaiOS
iPadOS 14 , iOS 14 , iPadOS 13 , iOS 13
Warranty
1 Year (Extended to 3 Years via Registration) WarrantyShipping & Delivery
