Product Information
Players everywhere love the GX-100 for its streamlined design, free-flowing interface, and high-quality tones. Armed with the core GX-100 engine, the compact GX-10 brings you the same inspiring experience in an even more portable footprint. You get loads of AIRD amps and effects for covering every style, plus speedy sound building with the intuitive color touch display and panel knobs. Adding in multi-mode footswitches, an integrated expression pedal, and USB audio connectivity, the GX-10 seamlessly transitions from nightly stage performing to desktop recording, song creation, and daily practice sessions.
The GX-10 brings you a universe of ultra-responsive BOSS tone processing in a travel-ready size. Take on every playing situation with 23 guitar amps and nine bass amps, including high-gain X-Ultra, X-Optima, and X-Titan types crafted with our latest technologies. And let your imagination run wild with 170 effects, including overdrives and distortions, mod effects, delays, and reverbs, plus dedicated bass effects and BOSS classics like Slow Gear, Octave, Slicer, and more.
Features
- Compact amp/effects processor for guitar and bass
- The same sound engine and color touch display as the GX-100 in a portable, travel-ready design
- Exceptional audio quality with 24-bit AD and 32-bit DA conversion, 32-bit floating-point processing, and 48 kHz sampling rate
- Authentic tube amplifier tone and touch response with AIRD technology
- 32 amplifier types and 170 BOSS effects
- Ultra-flexible amp/effect routing up to 15 assignable blocks
- Wide selection of onboard speaker types and support for loading WAV speaker IRs
- Streamlined modern design with a rugged metal chassis
- Three footswitches with flexible control modes
- Onboard expression pedal with toe switch
- Connect up to two footswitches or an expression pedal for expanded control
- Send/return loop for external pedals
- Record and play tracks in music production software on a computer or mobile device* via a USB-C®
Specifications
SAMPLING FREQUENCY
- 48 kHz
AD CONVERSION
- 24 bits + AF method
- *AF method (Adaptive Focus method): This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.
DA CONVERSION
- 32 bits
PROCESSING
- 32-bit floating point
EFFECTS
- 170 Types
MAXIMUM NUMBER OF EFFECTS
- 15 + 3 (DIVIDER/MIXER, SEND/RETURN, PHRASE LOOP) *depending on the circumstances
MEMORIES
- 198 (User) + 99 (Preset)
PHRASE LOOP
- 38 sec. (MONO)
- 19 sec. (STEREO)
TUNER
- Internal Detection +/-0.1 cent
NOMINAL INPUT LEVEL
- INPUT: -10 dBu
- RETURN: -10 dBu
MAXIMUM INPUT LEVEL
- INPUT: +7 dBu
- RETURN: +7 dBu
INPUT IMPEDANCE
- INPUT: 1 M ohm
- RETURN: 1 M ohm
NOMINAL OUTPUT LEVEL
- OUTPUT (L/MONO, R): -10 dBu
- PHONES: -10 dBu
- SEND: -10 dBu
OUTPUT IMPEDANCE
- OUTPUT (L/MONO, R): 1 k ohm
- PHONES: 44 ohms
- SEND: 1 k ohm
RECOMMENDED LOAD IMPEDANCE
- OUTPUT (L/MONO, R): 10 k ohms or greater
- PHONES: 44 ohms or greater
- SEND: 10 k ohms or greater
CONTROLS
- DOWN switch
- UP switch
- CTL1 switch
- POWER switch
- EXP1 switch
- PAGE button
- MENU button
- EFFECTS button
- EXIT button
- WRITE button
- 1-4 knobs
- SELECT knob
- OUTPUT LEVEL knob
- EXP1 pedal
DISPLAY
- Color Graphic LCD (480 x 272 dots) Touch screen

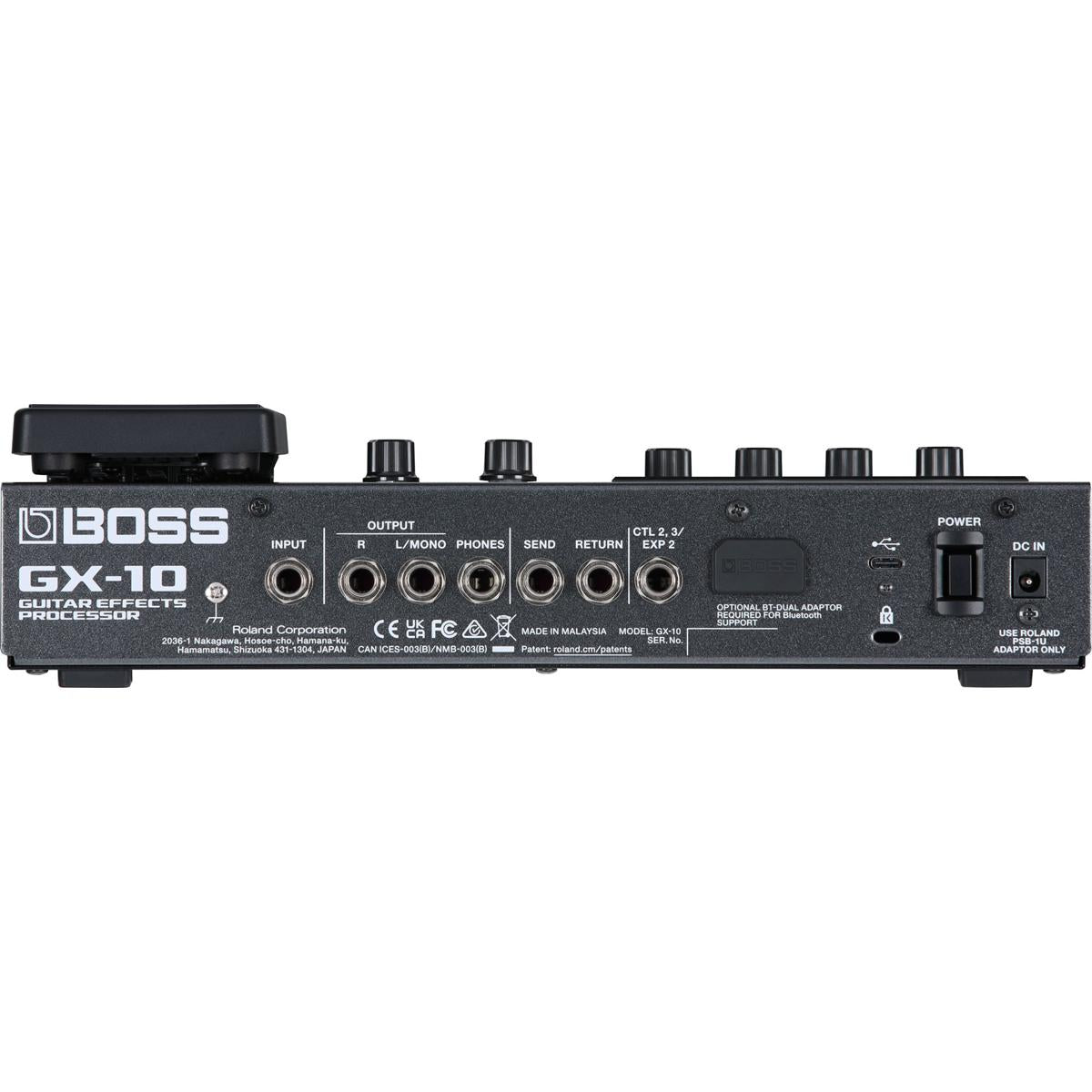

CONNECTORS
- INPUT jack
- OUTPUT (L/MONO, R) jacks
- SEND jack
- RETURN jack: 1/4-inch phone type
- PHONES jack: Stereo 1/4-inch phone type
- CTL2,3/EXP2 jack
- USB COMPUTER port: USB Type-C®
- Bluetooth® ADAPTOR connector: Dedicated connector
- DC IN jack
POWER SUPPLY
- AC adaptor
CURRENT DRAW
- 600 mA
POWER CONSUMPTION WHEN IN OFF MODE
- 0.0 W (when the power automatically turns off)
