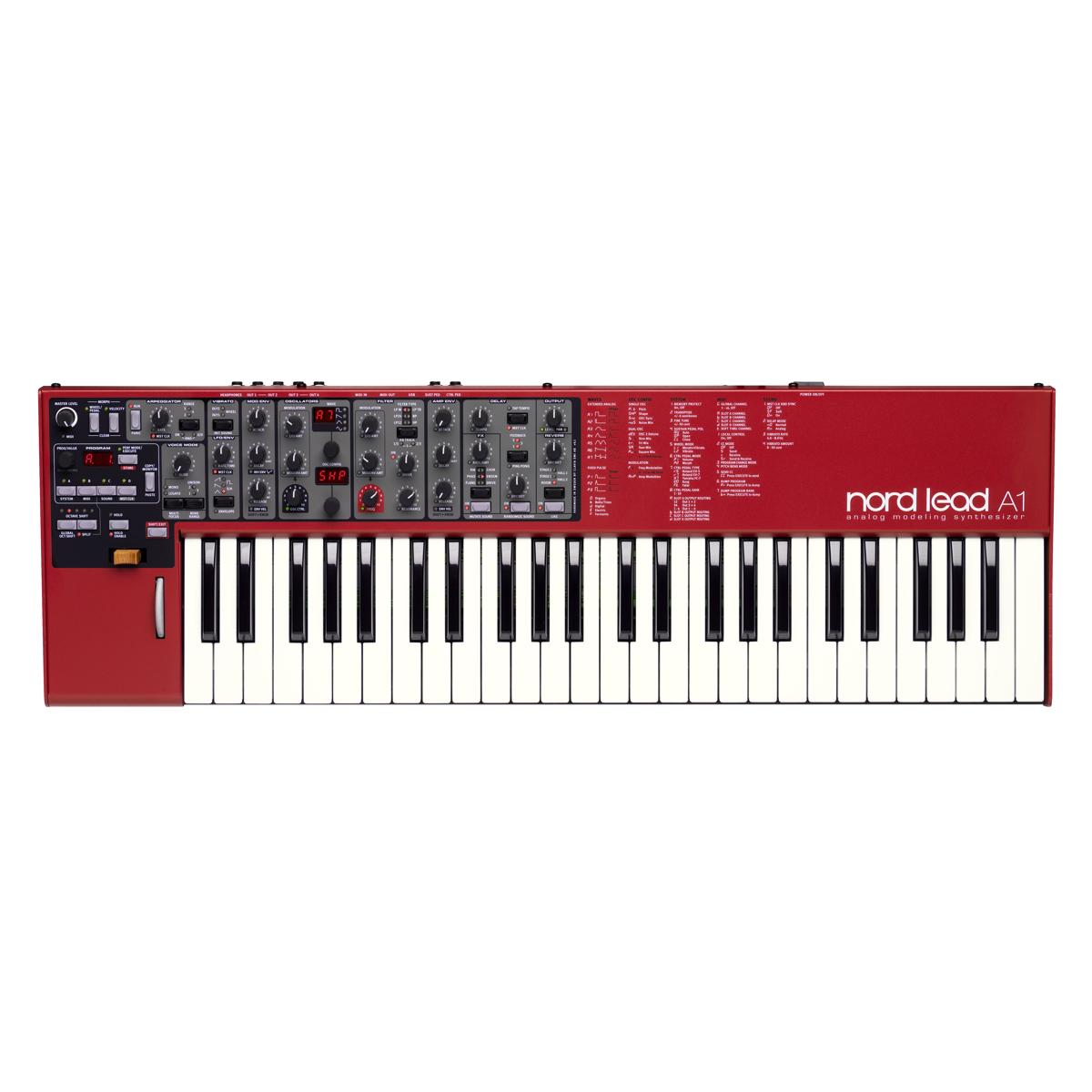

Nord Lead A1 Synthesizer 49-Note Analogue Modeling Synth

Specifications

General

• 26 voices, 4 part multitimbral.
• 3 part effects section (FX, delay and reverb) for each part
• 49-key velocity sensitive keyboard (keyboard version only) with octave shift buttons, +/-2 octaves.
• Keyboard Split with 2 slots for the upper and lower sections.
• Modulation Wheel (keyboard version only).
• Pitch Stick with no dead zone at zero crossing (keyboard version only).
• Programmable Pitch bend range, up to +/- 4 octaves
• Separate up/down bend range: -12 or -24 semitones, + 2 semitones
• 1 pedal input for sustain.
• 1 pedal input for expression pedal.

Oscillator Section

• Oscillator models of multiple waveforms (traditional analog, extended analog, pulse waveforms, real-time algorithmical waveforms with additive-, FM- and formant- synthesis)
• OSC config knob 11 categories (Pitch, Shape, Osc Sync, Noise Mix, Osc 2 Detune, Sine Mix, Tri Mix, Saw Mix, Square Mix, Freq Modulation, Amp Modulation)

Filter Section

• Multi-mode filter with 12 dB (2-pole) low pass, 24 dB (4-pole) lowpass and band pass, high pass, Ladder M and Ladder TB characteristics.
• Cut off, Resonance, envelope amount, envelope amount controlled by velocity.
• ADR/ASR envelope.
• Filter keyboard tracking can be set to off, 1/3, 2/3 or full.
• Adjustable Filter Distortion.

Modulation Section

• LFO generates a triangle, square, sawtooth, inverted sawtooth or sample and hold waveforms. LFO can be routed to Filter Frequency and Osc mod. The LFO rate can be synchronized to the Master Clock.
• LFO can be switched to polyphonic Env mode with four different characteristics and sample and hold is manually triggered by keyboard (polyphonic S/H).
• Arpeggiator: Range: 1 - 4 octave. Modes: up, down, up/down and random. The Arpeggio rate can be synchronized to the Master Clock.
• ADR/ASR envelope, velocity control on/off, inverse envelope on/off.

Amplifier Section

• ADR/ASR envelope, velocity control on/off, gain control.
• Individual Pan-control per program

Performance Section

• Voice modes: Poly, Legato with portamento, Mono, True Unison 1, 2 & 3.
• Four program slots for layering possibilities and multitimbrality.

Effects

• Delay section with tap tempo, four stages of feedback, stereo ping-pong, dry/wet mix. The Delay speed can be synchronized to the Master Clock.
• FX section with Flanger, Phaser, Ring Modulation, Chorus, Ensemble and Drive.
• Reverb section with five algorithms (Room, Stage 1, Stage 2, Hall 1, Hall 2).

Memory

• Programs (single sounds): 8 x 50 (400) locations
• Performances (multi sounds): 4 x 50 (200) locations

Audio Out

• 4 outputs. Each slot can be assigned to its own output.
• Headphones output.
• High resolution low noise 24 bit DACs.

MIDI Features

• All control knobs and switches send and receive control change messages.
• System exclusive bulk dumps. One program or all programs.
• Master Clock will sync to incoming MIDI clock.
• Soft Thru

Connections

• 4 Line Level Audio Outputs - ¼", 6,35 mm jacks, unbalanced
• Stereo Headphone Output - ¼", 6,35 mm stereo jack
• Sustain Pedal - ¼", 6,35 mm jack.
• Control Pedal - ¼", 6,35 mm TRS stereo jack. Use a Yamaha FC-7, Roland EV-7, Roland EV-5, Korg EXP2 or Korg XVP10.
• USB connector with MIDI capabilities
• MIDI In & Out - 5 pin DIN connectors
