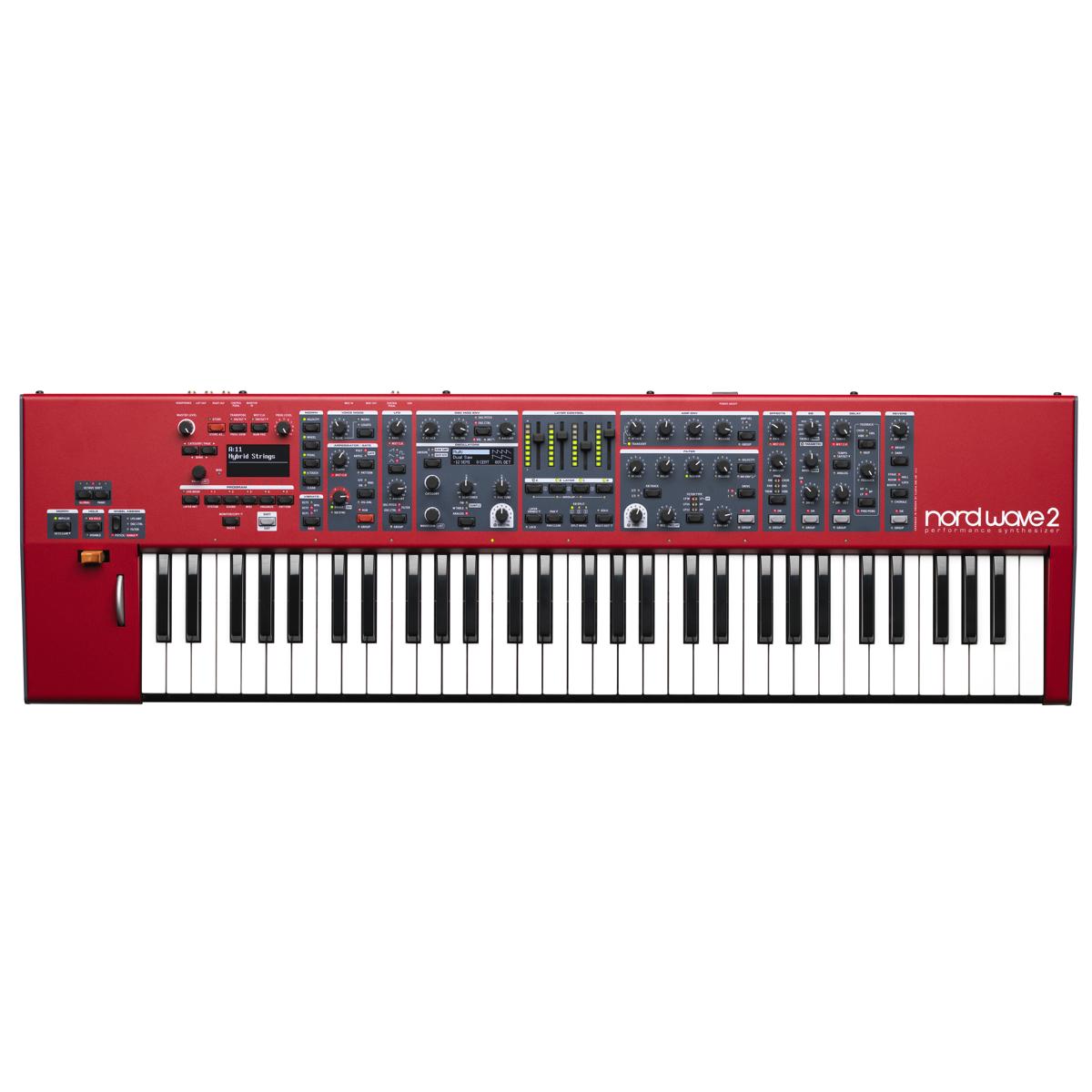

Nord Wave 2 Synthesizer 61-Note Synth Sampler w/ Semi-Weighted Waterfall Action

Specifications

General

• 4 Layer Synthesizer With Dedicated Volume/Pan Faders
• Virtual Analog Synthesis, Wavetable, Fm And Sample Playback
• 48 Voices
• 1 Gb Memory For Nord Sample Library 3.0
• Effects, Eq, Delay And Reverb For Each Layer
• Advanced Arpeggiator And Gate Features
• 61-Key Semi-Weighted Keyboard With Octave Shift Buttons, +/-2 Octaves.
• Keyboard Split With 3 Split Points.
• Advanced Morph Functionality
• Impulse Morph For Instant Morphing Overrides
• Group Functionality For Multi-Layer Editing

Oscillator Section

• Dedicated Oled Display For Oscillator Settings
• Analog: Basic, Shape, Shape Sine, Multi, Sync, Bell, Noise.
• Wavetable: Wavetables, Formants.
• Fm: Dual, Triple, Vocal And Multi With Harmonic And Inharmonic Options.
• Samples: Nord Sample Library 3.0
• Oscillator Control: Shape, Detune Or Sync Amount For Analog Waveforms, Shape For Wavetables, Modulation Amount For Fm.
• Dual Osc: Unison Control With 3 Amount Options.
• Semitone (-24 - +24) And Fine Tune Pitch Controls.

Modulation Section

• Lfo With Five Waveforms
• Flexible Syncing And Routing Options
• Ad/Ar Envelope

Arpeggiator/Gate

• Arpeggiator: Range: 1 - 4 Octave. Modes: Up, Down, Up/Down, Random. Zig-Zag Option. The Arpeggio Rate Can Be Synchronized To The Master   Clock.
• Poly: Polyphonic Arpeggiator For Retriggering Of Full Chords At Zero Range, And Polyphonic Arpeggio Of Chord Inversions At Larger   Ranges.
• Gate: Rhythmic Level Gate With Adjustable Hardness Envelope.
• Pattern Mode: Pattern Mode For Arpeggiator, Trig Or Gate With 30+ Editable Presets Or Custom Pattern.
• Patttern Editor - Dedicated Editor For Creating Custom Rhythmic Patterns That Can Be Used With Arpeggiator, Trig Or Gate.

Filter Section

• Multi-Mode Filter With 12 Db (2-Pole) Low Pass, 24 Db (4-Pole) Lowpass And Band Pass, High Pass, Ladder M, Low Pass+High Pass Characteristics.
•
• Cut Off, Resonance, Envelope Amount, Envelope Amount Controlled By Velocity.
• Adsr Envelope.
• Filter Keyboard Tracking Can Be Set To Off, 1/3, 2/3 Or Full.
• Adjustable Filter Distortion.

Amplifier Section

• Adsr Envelope
• Transient Attack-Mode For Snappier Attack
• Amp Velocity Amount (3 Levels)

Layer Control

• Led Fader For Each Layer For Instant Level Control And Overview.
• Group Multiple Layers For Quick Multi-Layer Editing Of Amp Env, Filter, Effects, Arpeggiator Etc.
• Layer Lock: Locks The Currently Active Layer Configuration.
• Split Functionality: 3 Split Points With 8 Location Options And Split Crossfade.
• Individual Pan-Control Per Layer.
• Solo Mode For Quickly Muting All Except The Focused Layer.

Performance Section

• Voice Modes: Poly, Legato And Mono With Glide
• Impulse Morph: Instantly Change One Or Several Parameters At The Press Of A Button.
• Classic Nord Morph Functionality For Flexible Control Of Multiple Parameters (Wheel, Aftertouch, Velocity And Control Pedal)
•
• Modulation Wheel
• Pitch Stick With Programmable Range.
• Fast Assign Of Wheel Modulation Destination
• Aftertouch
• Vibrato With 3 Delay Modes And Wheel/Aftertouch Assign
• Keyboard Hold Which Can Be Disabled On Each Layer Individually

Program Section

• Program Gain Control
• Large Oled Display
• Program Transpose Functionality
• 5 Program Buttons
• Master Clock Control Of Arpeggiator, Lfo, Effects And Delay + Plus External Clock Sync
• Copy/Paste Functionality
• Live Mode

Effects

• Fx Section With Tremolo, Pan, Ring Modulation, Chorus, Ensemble And Vibe.
• Eq With Bass/Treble Control Or Parametric 1 Band Control.
• Drive Effect For Tube-Distortion
• Delay Section With Rate/Time, Tap Tempo, Analog Mode, Stereo Ping-Pong, Dry/Wet Mix. The Delay Speed Can Be Synchronized To The Master Clock. Feedback Loop Effects: Chorus, Vibe And Ensemble, Feedback Filters: Hp, Lp And   Bp.
• Reverb Section With Five Algorithms (Booth, Room, Stage, Hall, Cathedral) + Dark, Bright And Chorale (Modulated Reverb)

Connections

• 2 Line Level Audio Outputs - ¼", 6,35 Mm Jacks, Unbalanced
• Stereo Headphone Output - ¼", 6,35 Mm Stereo Jack
• Sustain Pedal - ¼", 6,35 Mm Jack.
• Control Pedal - ¼", 6,35 Mm Trs Stereo Jack. Use A Yamaha Fc-7, Roland Ev-7, Roland Ev-5, Korg Exp2 Or Korg Xvp10.
• Usb Connector With Midi Capabilities
• Midi In & Out - 5 Pin Din Connectors

Included Accessories

• User Manual
• Power Cord With Iec C14 Connector
