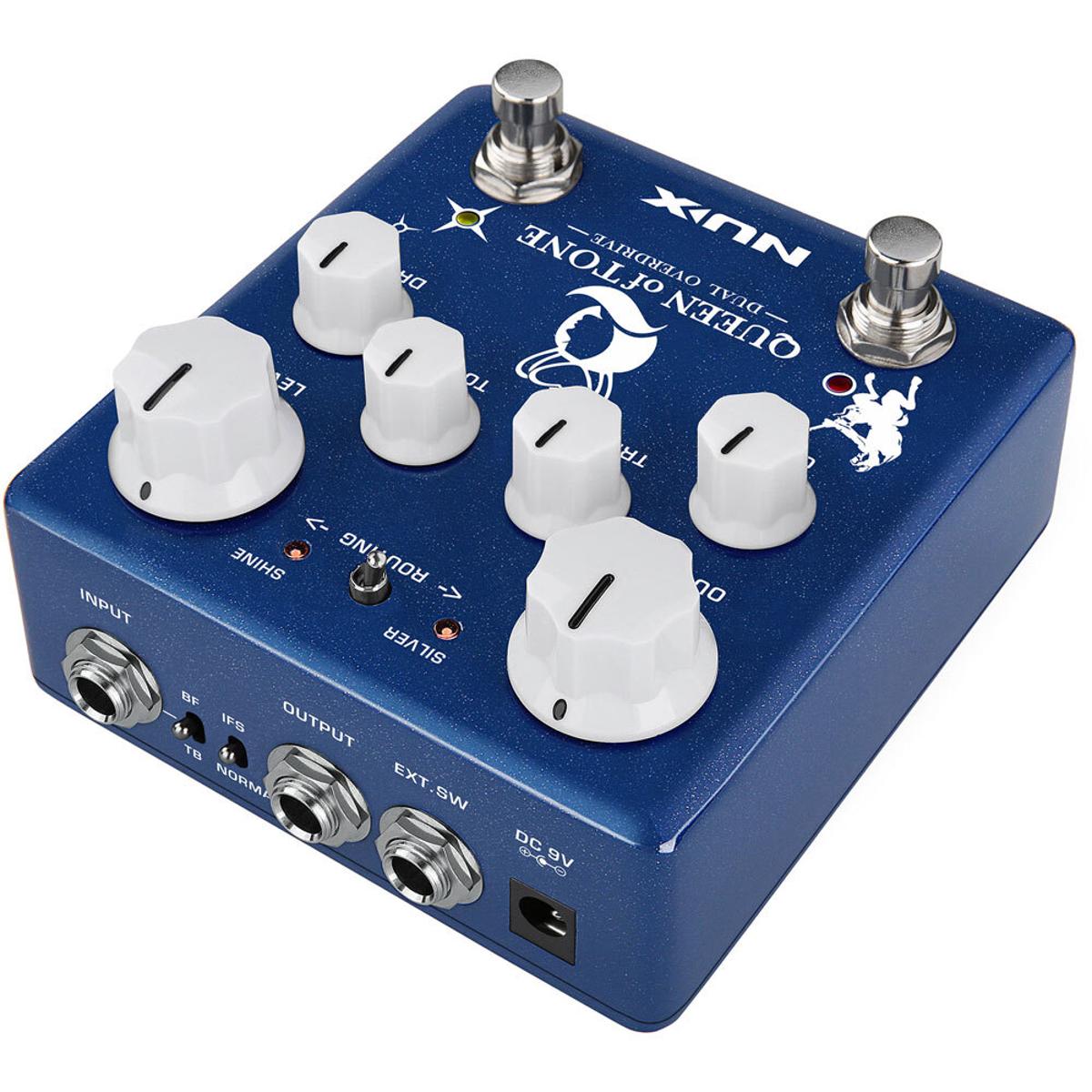

NU-X NXNDO6 Verdugo Series Queen Of Tone Dual Overdrive Effects Pedal

Specifications

• Input Impedance: 2.2M?
• Output Impedance: 1k?
• Power: 9V DC (Negative tip, Optional ACD-006A adapter)
• Current Draw: Less than 100mA (52mA)
• Dimensions: 105 x 115 x 58mm (L x W x H)
• Weight: 440g

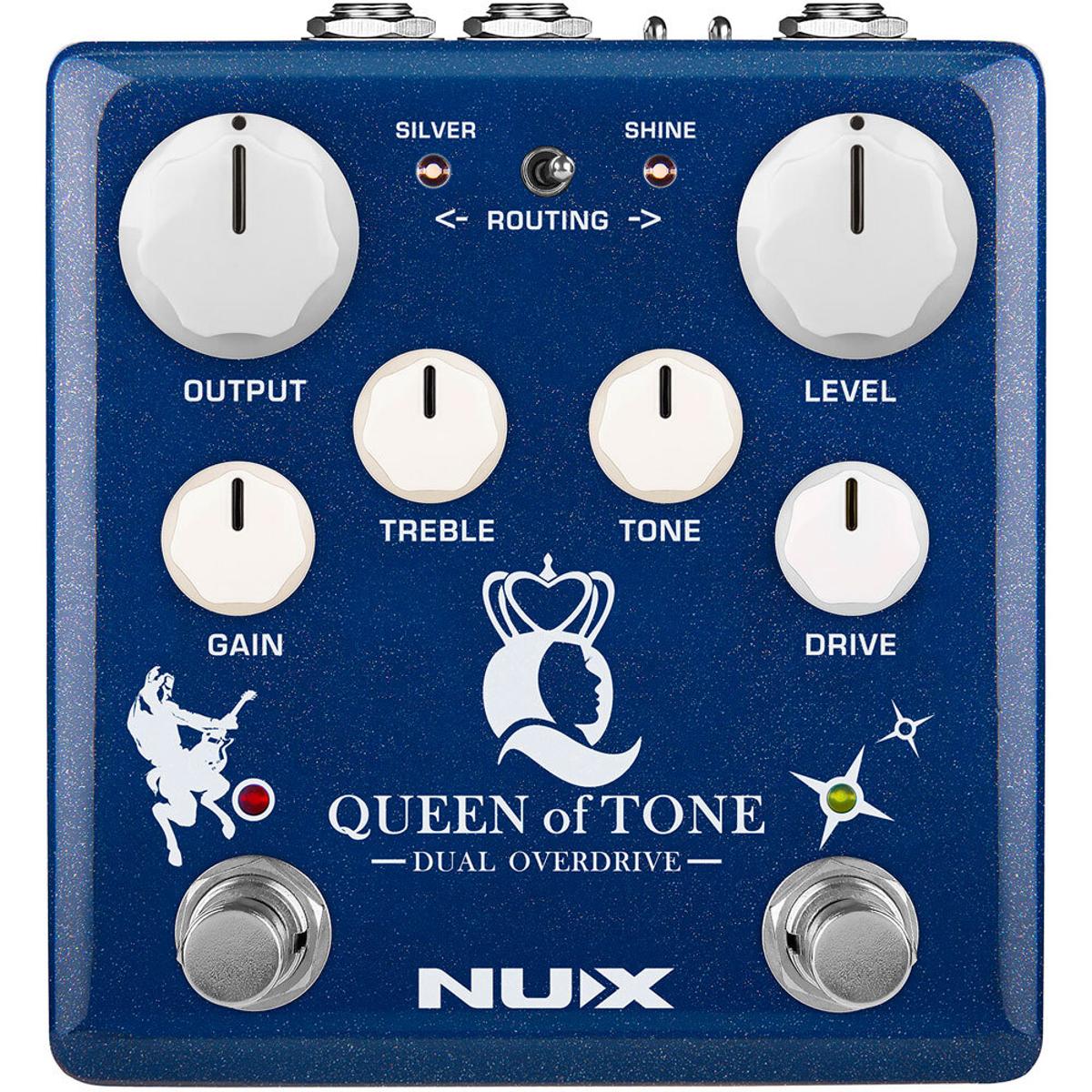

HORSEMAN (Left Side)

• OUTPUT knob: Controls the output level of Horseman circuit.
• TONE knob: Controls the treble frequency of Horseman circuit.
• GAIN knob: Controls the drive level of Horseman circuit.
• FOOTSWITCH: Engage/disengage Horseman circuit. Hold it for 1 second, you can turn on/off SILVER mode.
• SILVER indicator: While you engaged SILVER mode, the indicator will turn on.

MORNING STAR (Right Side)

• DRIVE knob: Controls the gain of Morning Star circuit.
• TONE knob: Controls the treble frequency of Morning Star circuit.
• LEVEL knob: Controls the volume of Morning Star circuit.
• FOOTSWITCH: Engage/disengage Morning Star circuit. Hold it for 1 second, you can turn on/off SHINE mode.
• SHINE indicator: While you engaged SHINE mode, the indicator will turn on.
• ROUTING toggle switch: You can adjust the order from Morning Star to Horseman or Horseman to Morning Star. It’s very useful to stack the sound.

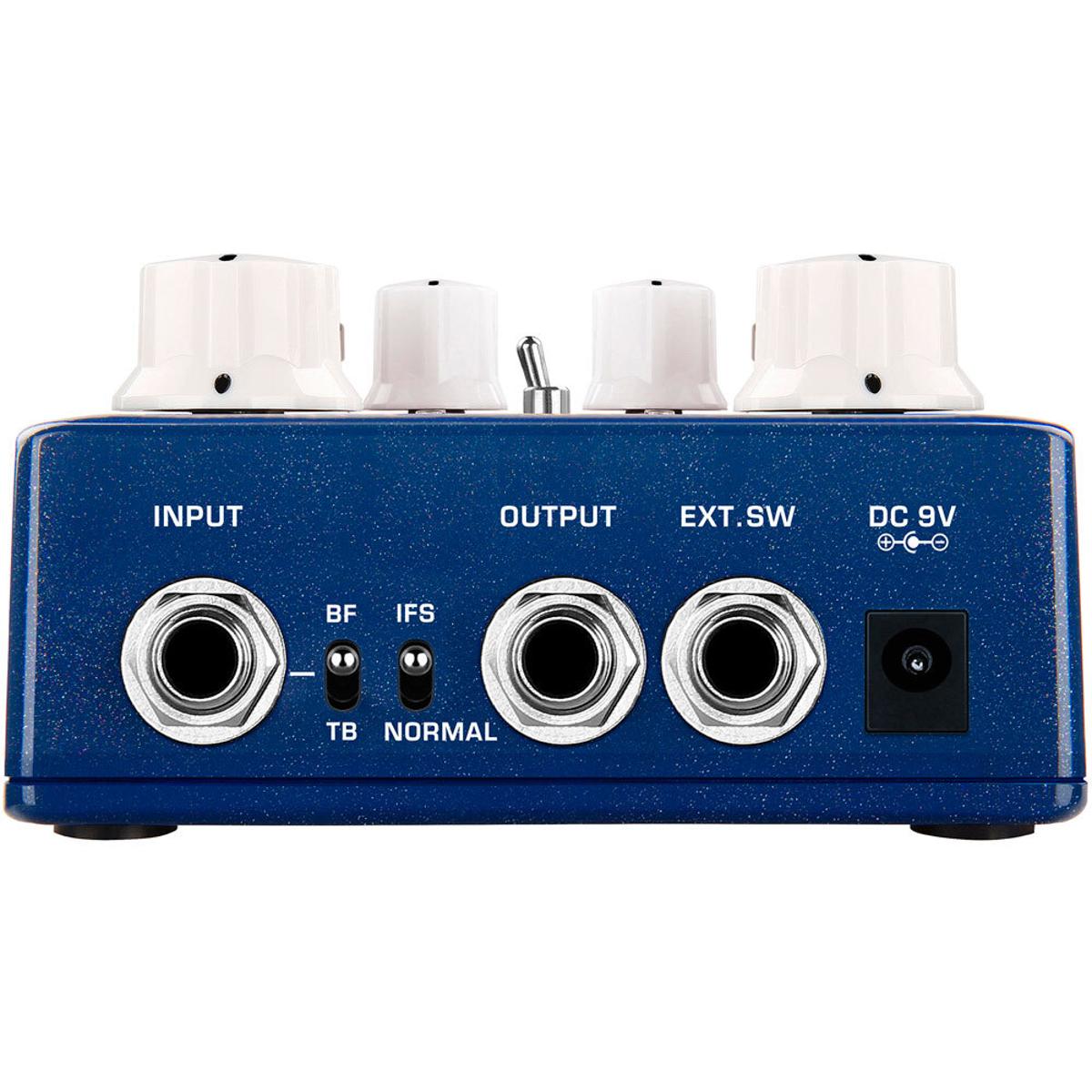

I/O Jacks

• INPUT: Connect your guitar side to INPUT jack.
• OUTPUT: Connect the OUTPUT signal to amp side.
• EXT. SW: You can use external foot controller (like NUX NMP-2) to remote this pedal.
• BF/TB toggle switch: BF means Buffer-Bypass, TB means True-Bypass. You can choose BF while you connect with several pedals in your signal chain to solve tone-loss situation.
• IFS/NORMAL toggle switch: QUEEN of TONE can engage INPUT FET STAGE while you toggle to IFS position, that can increase input signal to reach amp’s breakthrough edge that can drive the tube amplifier hotter.
• DC Jack: Use ONLY 9V Negative Tip power with 100mA.
