46/AIR192X14

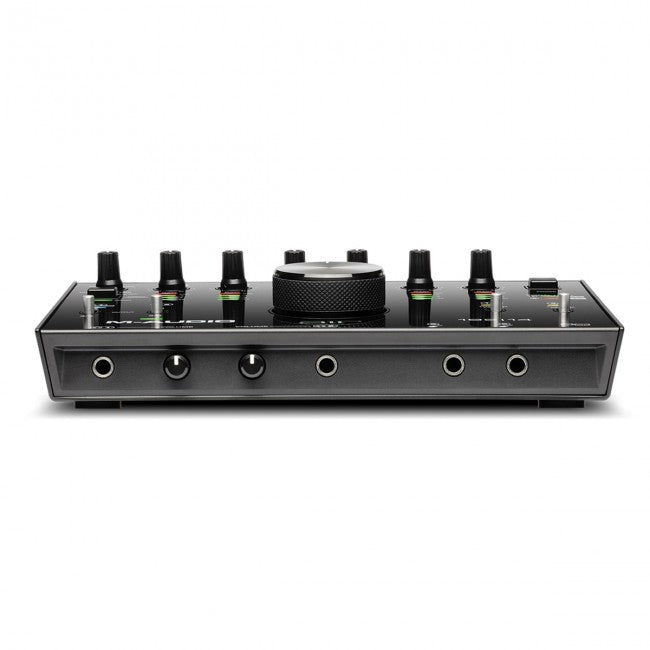

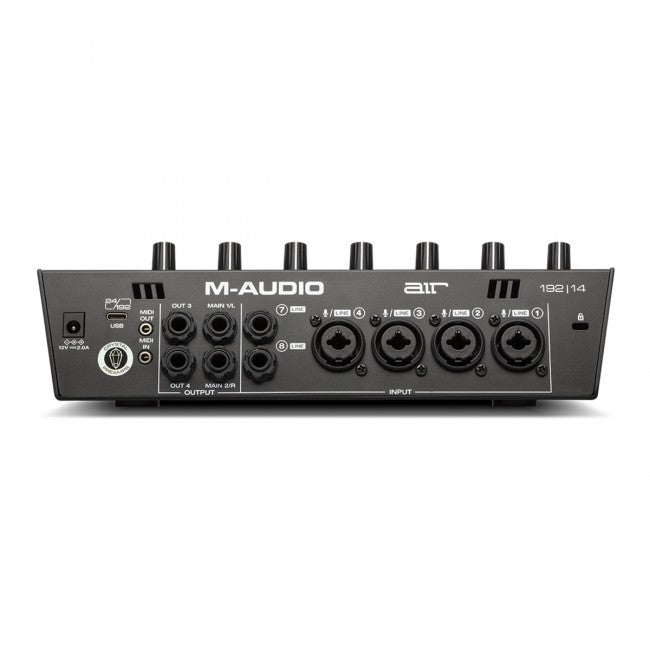

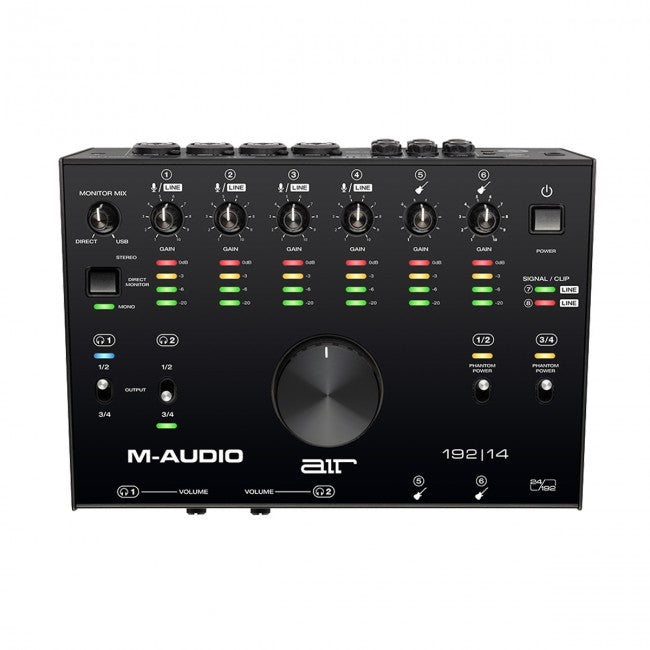

M-Audio AIR 192|14 USB Audio Interface 8-In/4-Out 24/192 Input/Output
$499.00
Pay With
Product Information
Conquer any recording session with professional studio quality and features!
The M-Audio AIR 192|14 is an 8-in 4-out feature-packed USB audio/MIDI interface that provides all of the connections and software you need to easily create professional 24-bit/192kHz studio-quality recordings. The AIR 192|14 features (4) XLR+¼” TRS combo inputs, (2) ¼” line inputs and (2) ¼” instrument inputs that have a specially designed gain and impedance stage to provide the most accurate representation of your guitar or bass when plugged directly into the interface. There is also MIDI input and output connections so you can connect any external midi gear that you may have such as external sequencers, drum machines and controllers.
When recording, you want to focus on capturing that perfect moment, and getting the best performance out of your artist and talent. You don’t want to be bogged down by “clicks,” “pops” or latency. The AIR 192|14 not only features a high-speed USB connection for providing the lowest round trip latency (2.59ms*) between your machine and your hardware, but it also features monitor mix control for listening directly to the source inputs, providing you with zero-latency technology.
The AIR 192|14 features 8 inputs for simultaneously recording up to 8 channels at once to meet all your studio’s recording needs. The (4) dedicated XLR/TRS Mic/Line combo inputs with Crystal Preamps™ and phantom power are perfect for recording a vocals, mic’ing up an acoustic guitar, vintage guitar or bass amp or the core elements of a drum kit. The (2) ¼” dedicated Instrument inputs use specially designed to provide the cleanest signal from your guitar, bass or keyboard, while the (2) ¼” dedicated Line inputs provide a pure uncolored signal for connecting a tube preamp, keyboard, synth or mixer, and MIDI input and output for connecting any of your boutique synth gear.
Software Included
Ableton Live Lite
Creative FX Collection
Xpand!2
Mini Grand
Touch Loops
Revalver - 2x Amps, 3x Cabs, 3x Mics, 3x Effects
MPC Beats
• 3 Virtual Instruments - TubeSynth, Electric, Bassline
• 80 FX Plugins - AIR Channel Strip, Half Time
• 2GB of factory content with bonus F9 instruments library
Specifications
| Mic Inputs 1-4 (balanced XLR) | |
| FREQUENCY RESPONSE | 20 Hz – 20 kHz (+/-0.2 dB) |
| DYNAMIC RANGE | 113 dB (A-weighted) |
| THD+N | 0.003% |
| PREAMP EIN | -137 dBu (40 Ω source, A-weighted) -129 dBu (150 Ω source, unweighted) |
| MAX INPUT LEVEL | +14 dBu |
| GAIN RANGE | 62 dB |
| Line Inputs 1-4 (balanced 1/4" [6.35 mm] TRS) | |
| FREQUENCY RESPONSE | 20 Hz – 20 kHz (+/-0.1 dB) |
| DYNAMIC RANGE | 113 dB (A-weighted) |
| THD+N | 0.001% (1 kHz, +4 dBu, -1 dBFS) |
| MAX INPUT LEVEL | +30 dBu |
| GAIN RANGE | 61 dB |
| Inst Inputs 5-6 (unbalanced 1/4" [6.35 mm] TS) | |
| FREQUENCY RESPONSE | 20 Hz – 20 kHz (+/-0.1 dB) |
| DYNAMIC RANGE | 110 dB (A-weighted) |
| THD+N | 0.001% (1 kHz, +4 dBu, -1 dBFS) |
| MAX INPUT LEVEL | +16 dBu |
| INPUT IMPEDANCE | ~1 MΩ |
| GAIN RANGE | 59 dB |
| Fixed Line Inputs 7–8 (balanced 1/4" TRS) | |
| DYNAMIC RANGE | 113 dB (A-weighted) |
| THD+N | 0.001% (1 kHz, +4 dBu, -1 dBFS) |
| FREQUENCY RESPONSE | 20 Hz – 20 kHz (+/-0.1 dB) |
| MAX INPUT LEVEL | +17 dBu |
| Line Outputs 1–2 (balanced 1/4" TRS) | |
| DYNAMIC RANGE | 112 dB (A-weighted) |
| THD+N | 0.002% (1 kHz, -1 dBFS) |
| FREQUENCY RESPONSE | 20 Hz – 20 kHz (+/-0.2 dB) |
| MAXIMUM OUTPUT LEVEL | +17 dBu |
| Fixed Line Outputs 3–4 (balanced 1/4" TRS) | |
| DYNAMIC RANGE | 113 dB (A-weighted) |
| THD+N | 0.002% (1 kHz, -1 dBFS) |
| FREQUENCY RESPONSE | 20 Hz – 20 kHz (+/-0.2 dB) |
| MAXIMUM OUTPUT LEVEL | +17 dBu |
| Headphone Outputs (stereo 1/4") | |
| DYNAMIC RANGE | 111 dB (A-weighted, 32 Ω load) |
| THD+N | 0.002% (1 kHz, -1 dBFS, 10 mW/channel into 32 Ω load) |
| FREQUENCY RESPONSE | 20 Hz – 20 kHz (+/-0.2 dB) |
| MAXIMUM POWER DELIVERED | 160mW (<1% THD, 32 Ω load) |
| MAXIMUM OUTPUT LEVEL | +15 dBu (unloaded) |
| IMPEDANCE RANGE | 32 Ω – 600 Ω |
| General | |
| OTHER CONNECTORS |
(1) 1/8” (3.5 mm) MIDI input (1) 1/8” (3.5 mm) MIDI output (1) USB Type-C port (1) Power adapter input |
| DIMENSIONS (WIDTH X DEPTH X HEIGHT) | 10.2" x 7.3" x 3.6" (25.9 x 18.6 x 9.1 cm) |
| WEIGHT | 3.9 lbs. 1.8 kg |
