M-Audio AIR 192|4 Vocal Studio Pro USB Audio Interface w/ Microphone & Headphones

IN STOCK - Ships today if ordered before 1pm AEST

    Pay With AfterPay Zip

    Or Rent From
    $3.00 per weekReturn any time after minimum rental agreement

    Product Information

    Studio Grade Production – Simplified!

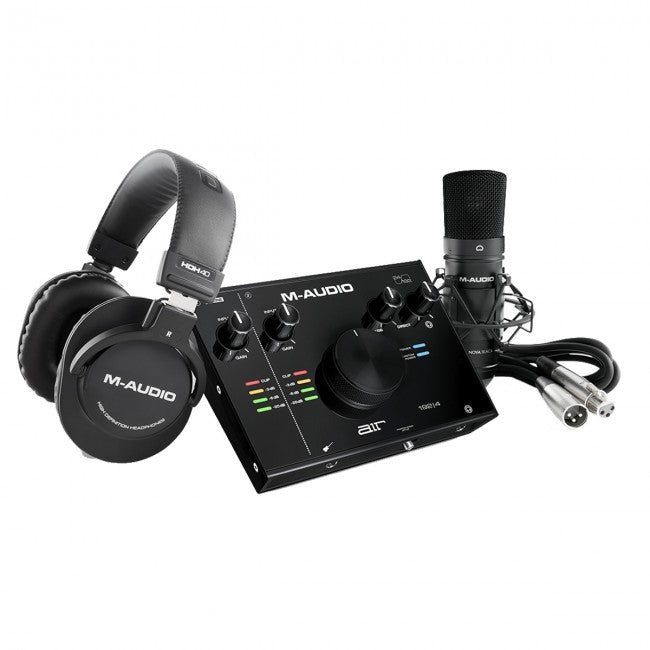

    Enter the world of studio-based recording with the AIR 192|4 Vocal Studio Pro—the ultimate all-in-one solution for computer recording projects. Combining the critically acclaimed AIR 192|4 interface, HDH40 headphones, a Nova Black condenser microphone, XLR cable and the premium AIR Series Software Suite, laying down vocal tracks, recording electric and acoustic instruments and adding voice-overs to multimedia projects has never been easier. With the AIR 192|4 Vocal Studio Pro, the combination of high-performance hardware and easy-to-use software results in pro-grade audio capture for every recording scenario.

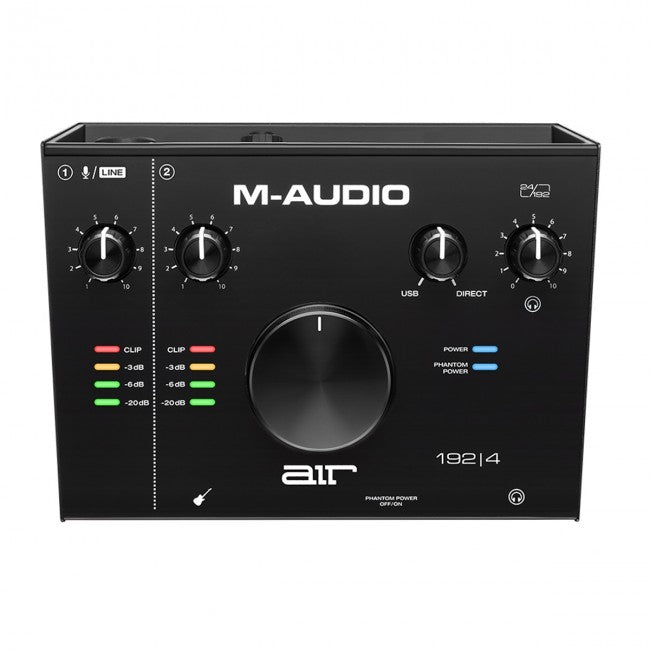

    This is the creative center of your recording setup: The simple-to-use, style-infused AIR 192|4 audio interface is the perfect tool to record and produce natural-sounding 24-bit/192kHz studio-quality recordings. Combining one XLR+¼” balanced combo input and an all-new dedicated ¼” instrument input, the AIR 192|4 enables you to record two channels simultaneously.

    Fusing an elegant pro-grade metal chassis, USB & USC-C connection cables, our exclusive Crystal™ low-noise pre-amps and pristine A/D converters that deliver the highest audio performance in their class, the AIR 192|4 provides all the tools you need to capture that initial idea and transform it into a finished masterpiece with ease. Take your music to the next level and start recording now!

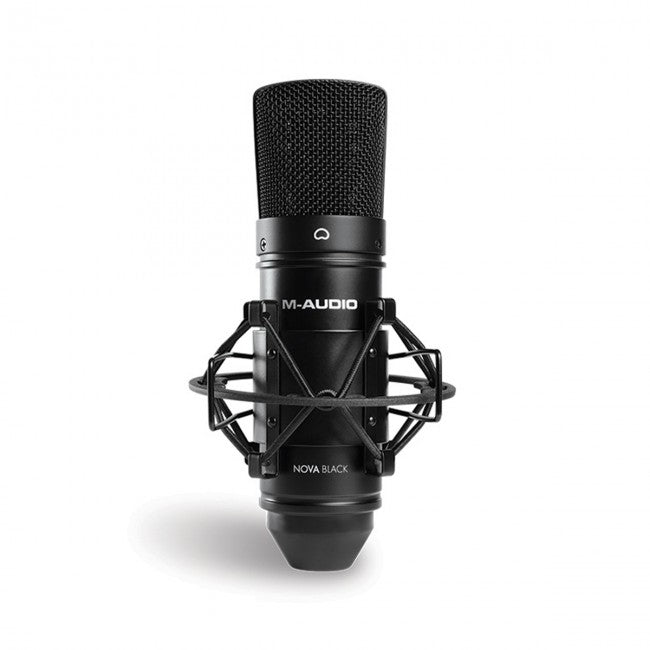

    Studio-grade recording demands the right tools for the job. M-Audio’s Nova Black large-diaphragm condenser microphone is perfect for podcasting applications or capturing high-quality audio from vocalists, instruments, percussion and more.

    At the heart of the Nova Black microphone is an 18mm pure aluminum condenser capsule with a directional cardioid polar pattern. This delivers wide range frequency response (20–20kHz, resulting in a microphone that captures even the most subtle nuances.

    Thanks to an included windscreen, a purpose-designed shock-mount for mounting to a traditional mic stand and an XLR cable, everything you need to get connected and start recording is included.

    Software Included

    Ableton Live Lite

    Creative FX Collection

    Xpand!2

    Mini Grand

    Touch Loops

    Revalver - 2x Amps, 3x Cabs, 3x Mics, 3x Effects

    MPC Beats

    • 3 Virtual Instruments - TubeSynth, Electric, Bassline

    • 80 FX Plugins - AIR Channel Strip, Half Time

    • 2GB of factory content with bonus F9 instruments library

    Specifications



    Minimum System Requirements

    macOS: 10.8 Class Compliant

    PC: Windows 7, Windows Driver

    Standard USB 2.0 or USB-C Port

    NOVA Black Microphone
    TYPE Back Electret condenser microphone
    ELEMENT 18 mm pure aluminum diaphragm capsule
    POLAR PATTERN Cardioid
    FREQUENCY RESPONSE 20 Hz – 20 kHz
    SENSITIVITY -38 dB (0 dB = 1 V/Pa @ 1 kHz)
    RATED IMPEDANCE 200Ω
    MAXIMUM SPL 136 dB
    PHANTOM POWER REQUIRED +48 V
    S/N RATIO 77 dB
    CURRENT CONSUMPTION 3 mA

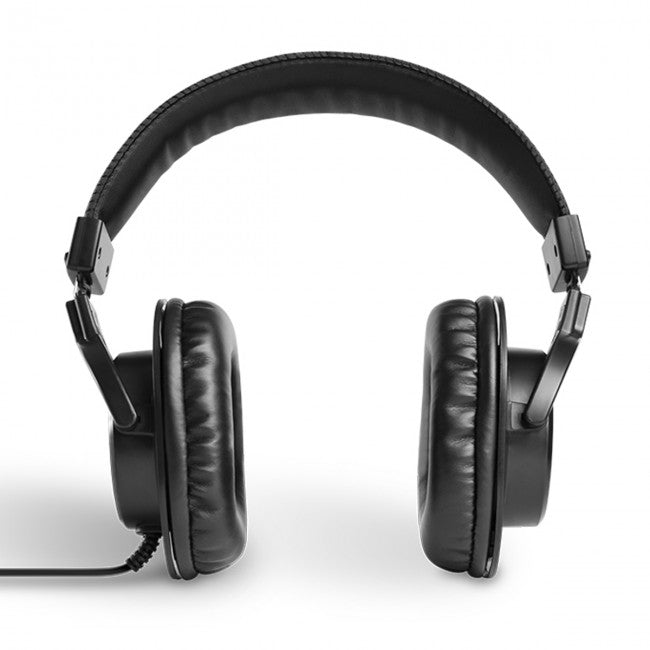

    HDH40 Headphones
    ACOUSTIC DESIGN Dynamic, Closed
    DRIVER 40 mm, neodymium
    FREQUENCY RESPONSE 15 Hz – 22 kHz
    SENSITIVITY 95 dB ±3 dB
    RATED IMPEDANCE 32Ω
    EARPAD Leatherette
    CABLE LENGTH 9.8 ft. / 3 m



    Mic Input 1 (balanced XLR)
    FREQUENCY RESPONSE 20 Hz – 20 kHz (+0.1 dB)
    DYNAMIC RANGE 104 dB (A-weighted)
    SIGNAL-TO-NOISE RATIO 104 dB (+1.0 dBu, A-weighted)
    THD+N 0.003%
    PREAMP EIN -128 dBu (max gain, 150 Ω source, A-weighted)
    MAX INPUT LEVEL +1.5 dBu
    GAIN RANGE 55 dB



    Line Input 1 (balanced 1/4" [6.35 mm] TRS)
    FREQUENCY RESPONSE 20 Hz – 20 kHz (+0.05 dB)
    SIGNAL-TO-NOISE RATIO 101 dB (1 kHz, +4 dBu, A-weighted)
    THD+N 0.003%
    MAX INPUT LEVEL 16 dBu
    GAIN RANGE 55 dB



    Inst Input 2 (unbalanced 1/4" [6.35 mm] TS)
    FREQUENCY RESPONSE 20 Hz – 20 kHz (+0.05 dB)
    DYNAMIC RANGE 100 dB (A-weighted)
    SIGNAL-TO-NOISE RATIO 102 dB (+ 4 dBu, A-weighted)
    THD+N 0.004%
    MAX INPUT LEVEL 6 dBu
    INPUT IMPEDANCE 1 MΩ
    GAIN RANGE 24 dB



    Main Outputs, L and R (impedance-balanced 1/4" [6.35 mm] TRS)
    FREQUENCY RESPONSE 20 Hz – 20 kHz (+0.06 dB)
    DYNAMIC RANGE / SIGNAL-TO-NOISE RATIO 102 dB (A-weighted)
    THD+N 0.005%
    MAX OUTPUT LEVEL +7 dBu (1 kHz, -1 dBFS)



    Headphone Output (impedance-balanced 1/4” [6.35 mm] TRS)
    THD+N 0.005%
    OUTPUT IMPEDANCE 10 Ω



    General
    POWER USB-bus-powered
    DIMENSIONS (WIDTH X DEPTH X HEIGHT) 8.0” x 6.0” x 2.76” (20.42 cm x 15.24 cm x 7.0 cm)
    WEIGHT 2.0 lbs. 0.9 kg

    Warranty

    1 Year Warranty
