Korg Modwave Wavetable Synthesizer Synth Module

Specifications

System

• Keyboard: 37 keys (velocity and release-velocity sensitive)
• Maximum Polyphony: 60 stereo voices
• Sound generating system: modwave synthesis engine

Modulation

• Controllers: Mod Wheel, Pitch Wheel, Kaoss Physics, 4x Mod Knobs
• Other Sources: 4x Envelopes, 5x LFOs, 2x Mod Processors, 2x Key Track, Seq Lanes A-D, Step Pulse, Tempo, Program/Performance Note Count, Program/Performance Voice Count, Poly Legato, Velocity, Exponential Velocity, Release Velocity, Gate, Gate+Damper, Note-On Trigger, Note-On Trigger+Damper, Note Number, Aftertouch and Poly Aftertouch (external MIDI only), MIDI CCs +/-, MIDI CCs +
• Destinations: Most parameters can be modulated, including parameters of individual Motion Sequence Steps. Depending on Motion Sequence length, there can be more than 1,000 potential modulation targets per Program.

Effects

• Pre FX: Decimator, Graphic EQ, Guitar Amp, Modern Compressor, Parametric EQ, Red Compressor, Ring Modulator, Tremolo, Wave Shaper
• Mod FX: Black Chorus/Flanger, Black Phase, CX-3 Vibrato Chorus, EP Chorus, Harmonic Chorus, Modern Chorus, Modern Phaser, Orange Phase, Polysix Ensemble, Small Phase, Talking Modulator, Vintage Chorus, Vintage Flanger, Vintage/Custom Wah, Vox Wah
• Delay: L/C/R Delay, Multiband Mod Delay, Reverse Delay, Stereo/Cross Delay, Tape Echo
• Master Reverb: Early Reflections, Overb
• Master EQ: 4-band parametric EQ

General

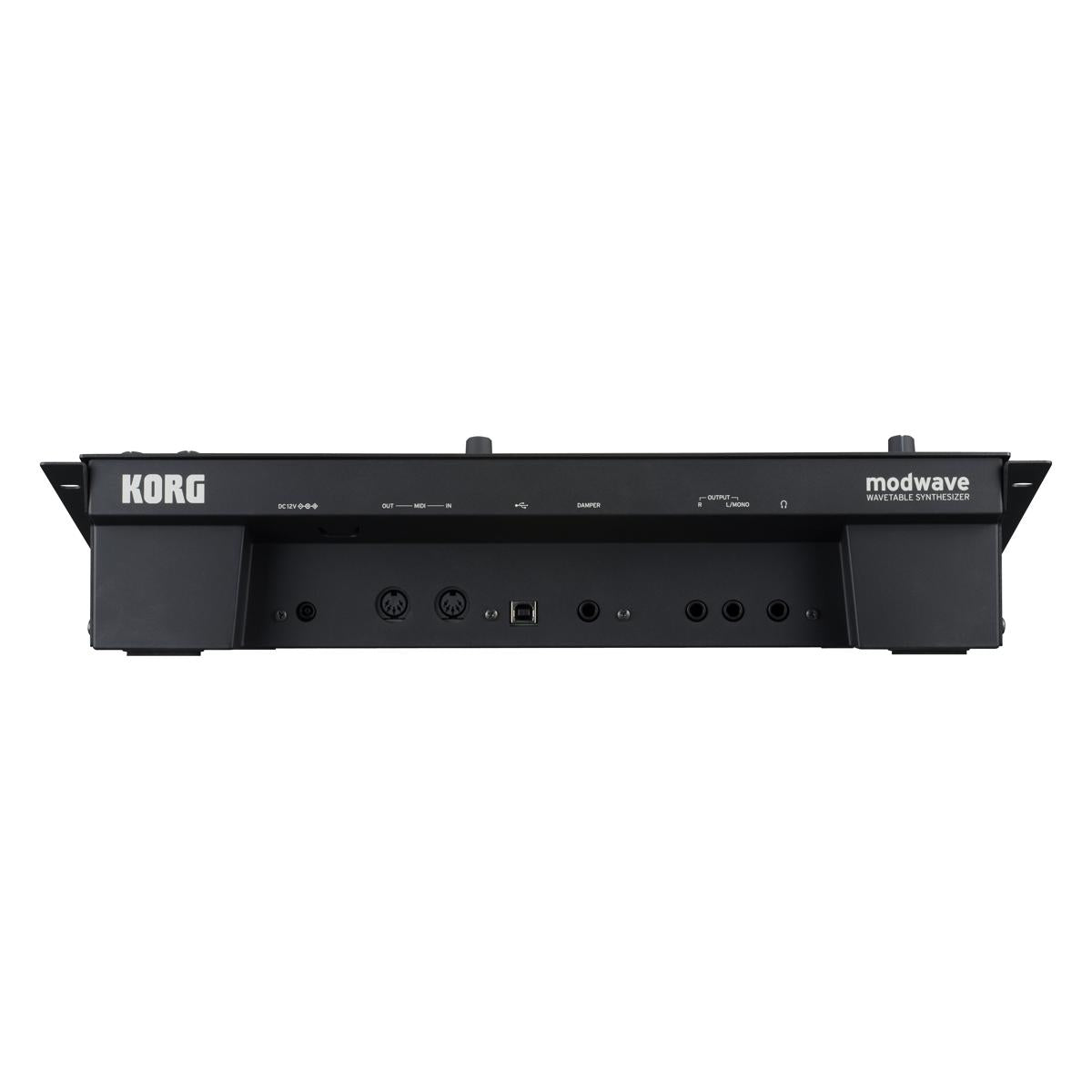

• Inputs/outputs: Headphone (6.3 mm stereo phone jack), OUTPUT L/MONO and R (impedance-balanced 6.3 mm TRS phone jacks), DAMPER (6.3 mm phone jack, half-damper not supported), MIDI IN and OUT connectors, USB B port
• Power supply: AC adapter (DC12V, 2500mA)
• Power consumption: 5 W
• Dimensions (W x D x H)
  483 x 172 x 107 mm / 19.02 x 6.77 x 4.21 inch
• Included items: AC adapter


Warranty

1 Year (Extended to 3 Years via Registration) Warranty
