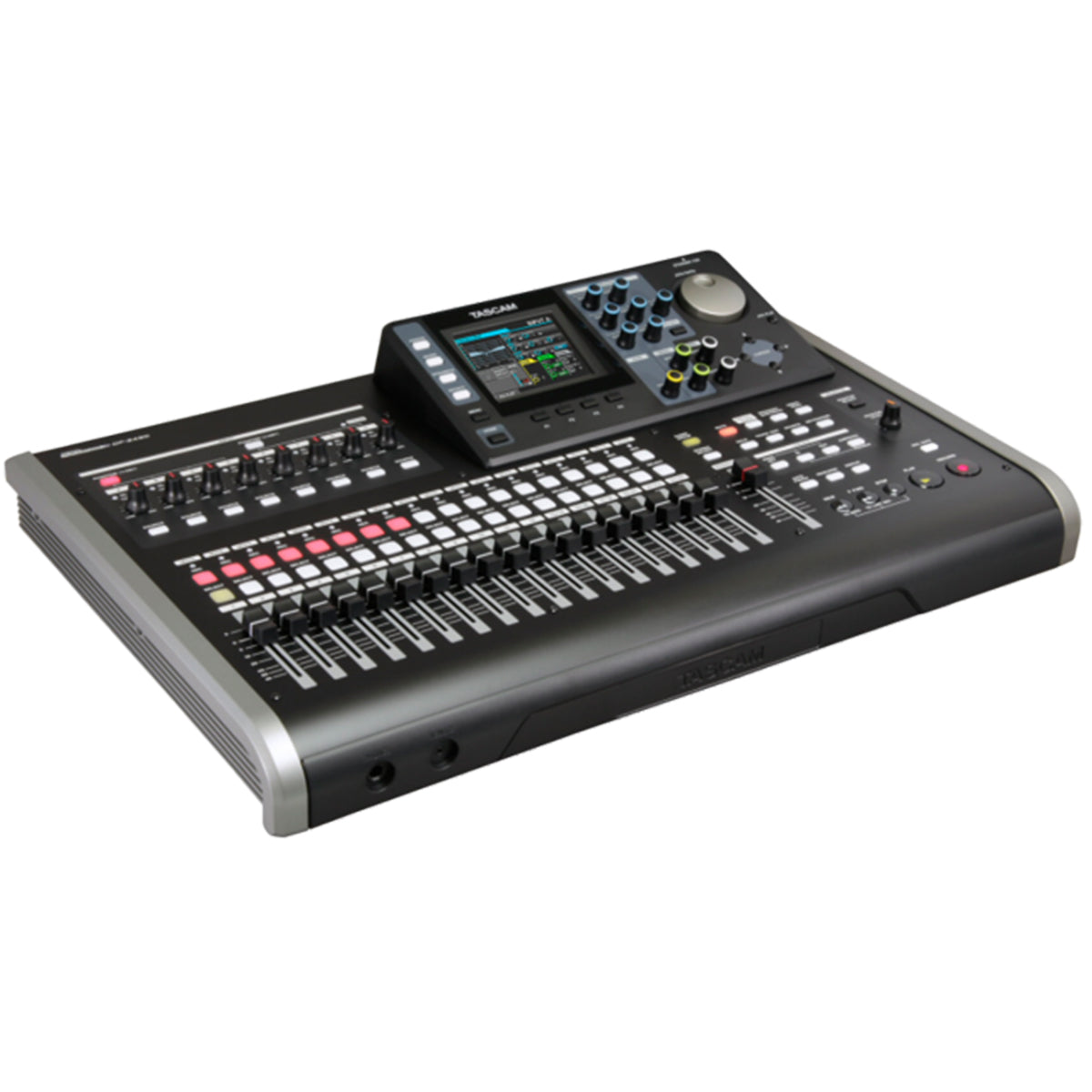

Tascam DP-24SD 24 Track Digital Portastudio

Specifications:

Recording Media: SD (512MB to 2GB) / SDHC card (4GB to 32GB)
File System: SD card: FAT16 / SDHC card: FAT32

INPUT A-H
XLR
Connector: XLR-3-31 (1: GND, 2: HOT, 3: COLD), Balanced
Input impedance: 2.4kΩ
Nominal input level: –14dBu
Maximum input level: +2dBu

TRS
Connector: 1/4" (6.3mm) TRS phone jack, Balanced
Input impedance: 22kΩ or more / 1MΩ (when INPUT H, GUITAR selected)
Nominal input level: +4dBu
Maximum input level: +20dBu

STEREO OUT
Connector: RCA pin-jack, Unbalanced
Output impedance: 200Ω
Nominal output level: –10dBV
Maximum output level: +6dBV

EFFECT SENDS
Connector: 1/4" (6.3mm) TS phone jack, Unbalanced
Output impedance: 200Ω
Nominal output level: –10dBV
Maximum output level: +6dBV

MONITOR OUT
Connector: 1/4" (6.3mm) TRS phone jack, Balanced
Output impedance: 200Ω
Nominal output level: –2dBu
Maximum output level: +14dBu

PHONES
Connector: 1/4" (6.3mm) stereo phone jack
Maximum output level: 70mW + 70mW (THD+N 0.1% or less, 32Ω loaded)

USB
Connector: USB Mini-B type 4-pin
Format: USB2.0 High-Speed mass-storage class

REMOTE
Connector: 2.5mm TRS jack

Power: Dedicated AC adapter (TASCAM GPE248-120200-Z, included)
Power consumption: 12W (when phantom power supplying)
Dimensions (W×H×D): 20.2" × 4.1" × 13.4" / 514 × 100.4 × 336.9 mm
Weight: 13.67 lbs. / 6.2 kg
Accessories: AC adapter, 4GB SD card, warranty card, owner's manual

Audio performance
Frequency response: 20Hz to 20kHz (±1dB, INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT)
S/N Ratio: 90dB or greater (INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT)
THD: 0.01% or less (INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT)

Operating system requirements
Windows
OS: Windows XP, Windows Vista, Windows 7, Windows 8
CPU: Pentium 300MHz or more
Memory: 128MB or more
USB: USB2.0
Macintosh
OS: Mac OS X Snow Leopard (V10.6), OS X Lion (V10.7), OS X Mountain Lion (V10.8), OS X Mavericks (V10.9)
CPU: Power PC, iMAC, G3, G4 266MHz or more
Memory: 64MB or more
USB: USB2.0

Warranty

1 Year (Extended to 3 Years via Registration) Warranty
