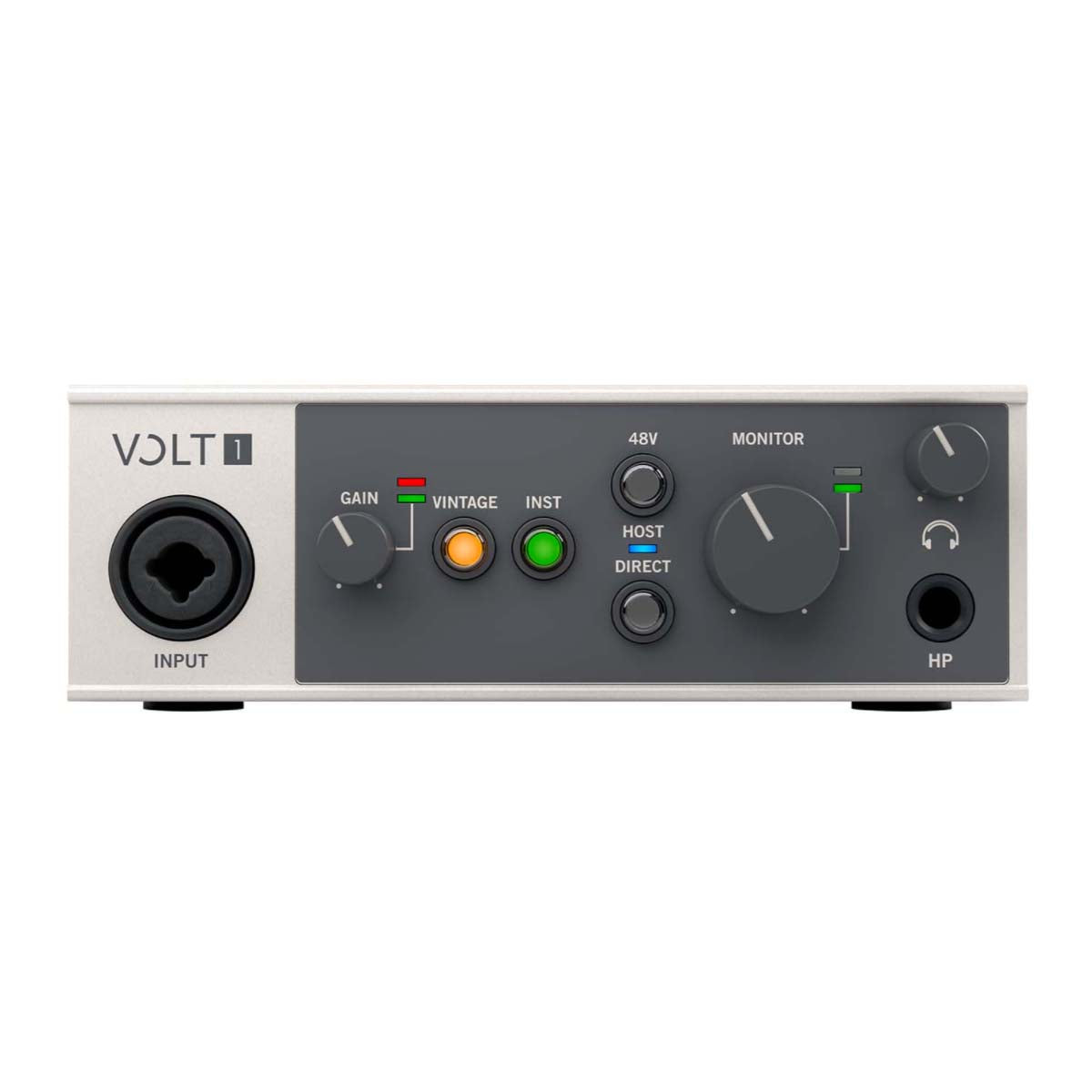

Universal Audio UA Volt 1 USB Audio Interface - 1 in/ 2 out

Specifications

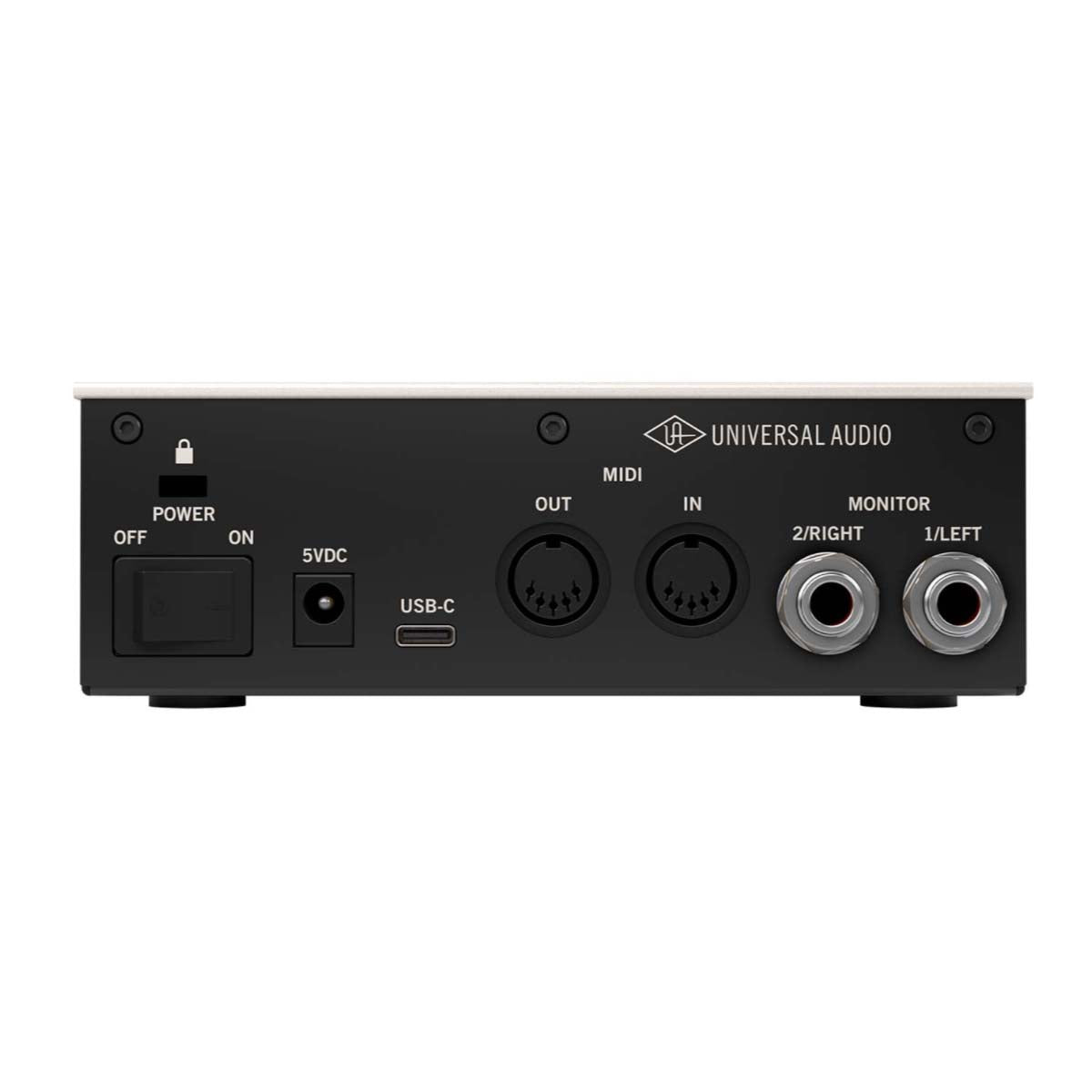

I/O

Monitor Outputs:                                                        Two (one stereo pair)

Headphone Output:                                                  One stereo

USB:                                                                           One USB 2.0 port (USB Type-C connector)

MIDI:                                                                          In, Out (two 5-pin DIN connectors)



A/D – D/A Conversion

Supported Sample Rates (kHz):                               44.1, 48, 88.2, 96, 176.4, 192

Bit Depth:                                                                   24

ANALOG I/O

Microphone Input(s)

Frequency Response:                                                20 Hz to 20 kHz, ±0.1 dB

Dynamic Range (A–weighted):                                 112 dB

THD + Noise (1 kHz @ -1 dBFS):                             -103 dB (0.0007 %)

Equivalent Input Noise (150 Ohms, A-weighted):     -127 dBu

Maximum Input Level:                                               9 dBu

Input Impedance:                                                       3 Kilohms

Available Gain:                                                          55 dB

Phantom Power:                                                        +48V (switchable)

Connector Type:                                                        XLR Female, pin 2 positive

Instrument Input(s)

Frequency Response:                                                20 Hz to 20 kHz, ±0.05 dB

Dynamic Range (A–weighted):                                 111 dB

THD + Noise (1 kHz @ -1 dBFS):                             -84 dB (0.006 %)

Maximum Input Level:                                               12.5 dBu

Input Impedance:                                                       1 Megohms

Available Gain:                                                          55 dB

Connector Type:                                                        ¼” TS unbalanced

Line Input(s)

Frequency Response:                                                20 Hz to 20 kHz, ±0.05 dB

Dynamic Range (A–weighted):                                 111 dB

THD + Noise (1 kHz @ -1 dBFS):                             -102 dB (0.0008 %)

Maximum Input Level:                                               22 dBu

Input Impedance:                                                       15 Kilohms

Available Gain:                                                          55 dB

Connector Type:                                                        ¼” TRS balanced or TS unbalanced

Monitor & Line Output(s)

Frequency Response:                                                20 Hz to 20 kHz, ±0.1 dB

Dynamic Range (A–weighted):                                 110 dB

THD + Noise (1 kHz @ -1 dBFS):                             -102.5 dB (0.00075%)

Maximum Output Level:                                            15 dBu

Output Impedance:                                                    100 Ohms

Connector Type:                                                        ¼” TRS balanced or TS unbalanced

Headphone Output(s)

Frequency Response:                                                20 Hz to 20 kHz, ±0.1 dB

Dynamic Range (A–weighted):                                 110 dB

THD + Noise (1 kHz @ -1 dBFS):                             -102.5 dB (0.00075%)

Maximum Output Level:                                            15 dBu

Output Impedance:                                                    100 Ohms

Connector Type:                                                       ¼” TRS balanced or TS unbalanced

SYSTEM REQUIREMENTS

macOS & Windows

Available USB 2.0 (or higher) port

USB cable (included)

Intel, AMD, or Apple silicon processor

Windows 10 or Windows 11 (64-bit editions)

macOS Catalina 10.15 or newer operating system

Internet connection for software downloads

iPad & iPhone

           iPadOS / iOS 14 or newer

Warranty

1 Year Warranty
