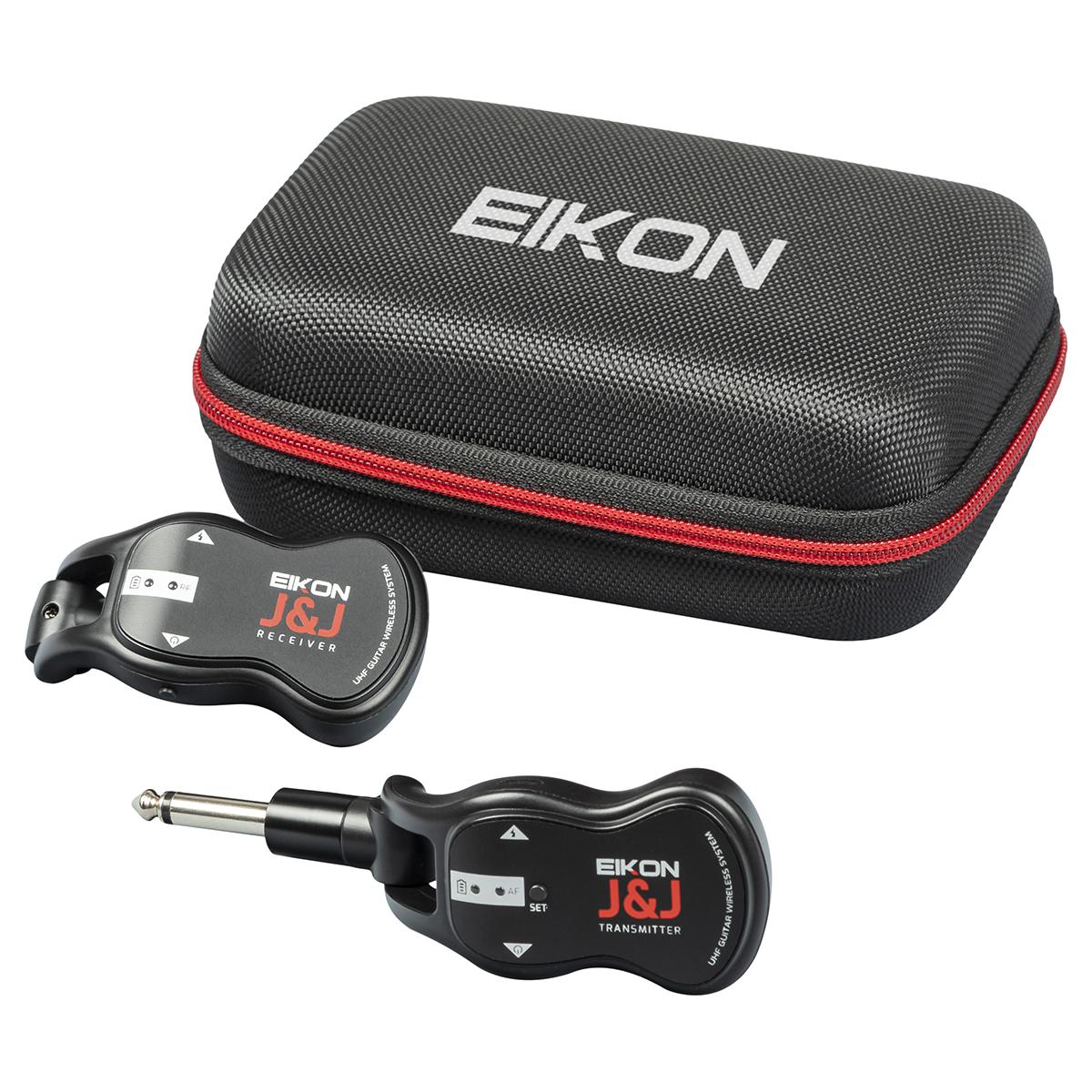

Eikon EKJJA Guitar Wireless System UHF 512–541.7 Mhz w/ Case

Specifications

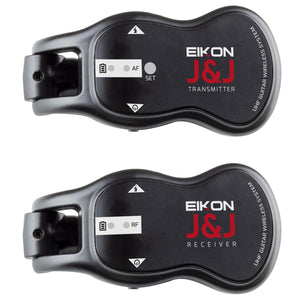

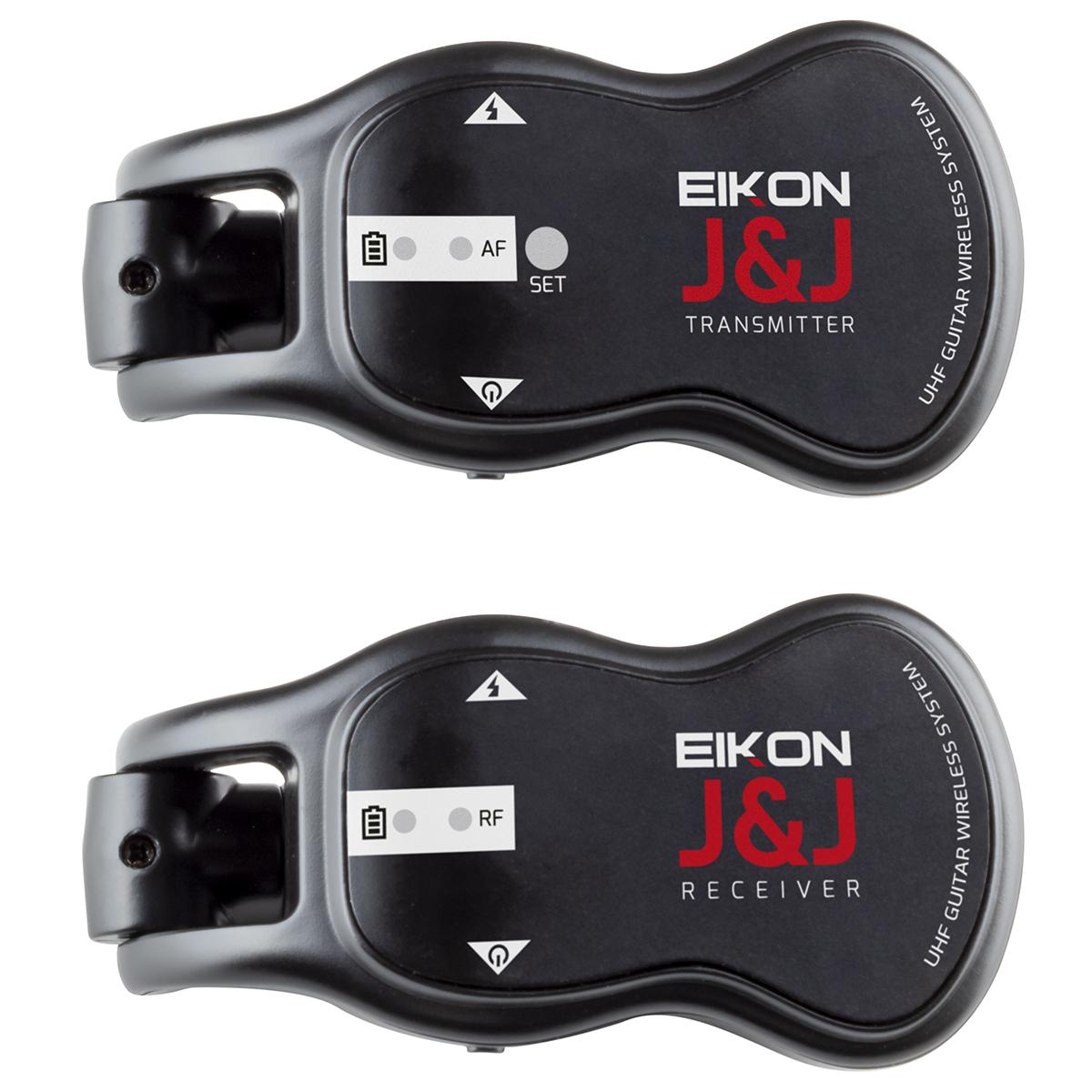

EKJ&JA - UHF PLL 50 Channel Transmitter

• RF Channels: 50 frequency presets
• RF Frequency Band: UHF: 512 - 541.7 MHz
• RF Frequency Stability: ±0.002%
• RF Oscillation Mode: Quartz locked
• RF Modulation Type: Wideband FM Stereo
• RF Output Power: 10mW
• Sub-harmonic: < 40 dB
• Operating current: 120 mA
• Operating Time: 3 to 5 hours
• Operating Power Supply: 3.7 V / 500mA - built-in Lithium battery
• Charging mode: USB charging 5V - type C connector
• Charging time: 3 hours
• Weight: 0.05 Kg

EKJ&JA - UHF PLL 16 Channel Receiver

• RF Channels: 50 frequency presets
• RF Frequency Band: UHF: 512 - 541.7 MHz
• RF Frequency Stability: ±0.005%
• RF Oscillation Mode: Quartz locked
• RF Modulation Type: Wideband FM Stereo
• RF Receiving Sensitivity: < -98 dBm
• RF Receiving range: 15 to 30 metres depending on used band conditions
• Audio Dynamic Range: 106 dBm
• THD Distortion: < 0.5%
• S/N Ratio: > 102dBA
• Audio output connector: 6.3 mm Mono Jack
• Output Power Max (continuous): 400 mW
• Operating current: 80 mA
• Operating Time: 5 hours
• Operating Power Supply: 3.7 V / 500mA - built-in Lithium battery
• Charging mode: USB charging 5V - type C connector
• Charging time: 3 hours
• Weight: 0.05 Kg
