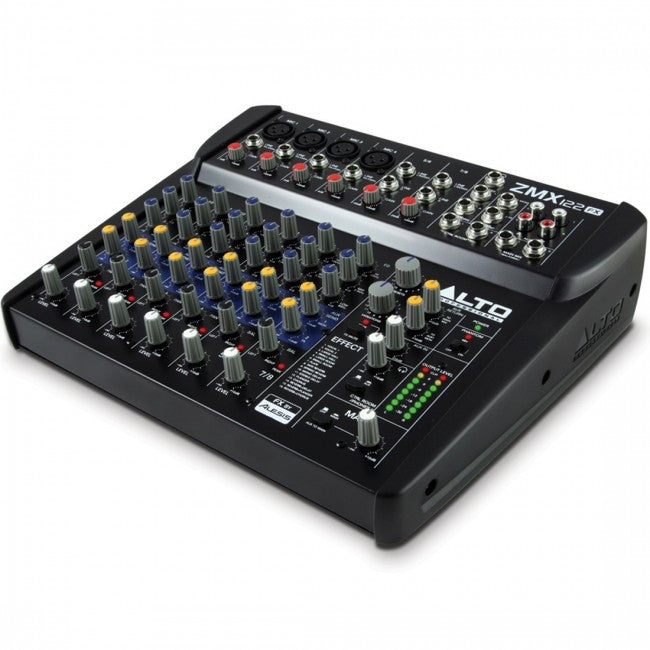

Alto Professional ZMX122FX Compact Mixer 8-Ch w/ Effects

Product Information:

Professional-Grade Mixing Features With a Go-Anywhere Attitude

Professional Mixing Features with a Go-Anywhere Attitude
The ZMX122FX is an eight-channel, two-bus mixer with all the inputs, outputs, routing, EQ, and effects you need for more intimate live performance reinforcement situations. It features four microphone inputs with balanced TRS jacks (two with Phantom Power), a three-band EQ and two AUX sends on each of the four mono channels and the two stereo channels, and even two-track inputs for integrating audio playback devices. The ZMX122FX is a perfect, take-anywhere professional mixer.

256 Onboard Effects
Regardless of what you're mixing, give your mix a professional edge with 256 onboard 24-bit DSP effects designed in partnership with Alesis, a coveted creator of sound-shaping digital effects that has been setting standards for DSP technology for nearly three decades. Choose from room and space delays, small and large hall acoustics, plate and spring reverbs, flangers, chorus effects and more. The ZMX122FX offers 16 variations of 16 professional Alesis effects from which to build, tweak, and dial in your sound. There's even a footswitch input so you can bypass all effects hands-free (footswitch not included).

Versatile Inputs and Outputs
The ZMX122FX is the swiss army knife that your creative life needs. Not only can you can plug dynamic, condenser, and wireless microphones into the first four channels, but you also get two stereo channel inputs for keyboards, drum machines, and other instruments. Plus, you can easily plug in your MP3 player, CD player, or audio from a DVD player into the CD/TAPE inputs. You also have two AUX sends that you can use to send streams of audio from your mixer to a digital effects unit, stage monitor, or any number of sources. Choose the ZMX122FX as the audio central command for your live performances, home studio, or video suite.

Specifications:

ZMX122FX
8-CHANNEL COMPACT MIXER WITH EFFECTS
16 total inputs including XLR jacks w/ phantom power on ch. 1-4
On-board Alesis digital effects with 256 variations
Expanded channel count perfect for small groups or sub-mixes
4 mic input channels with gold-plated XLR and balanced line inputs
Two stereo input channels with balanced TRS jacks
High headroom circuitry offering extra dynamic range
Ultra-low-noise discrete mic preamps
3-band EQ on each channel

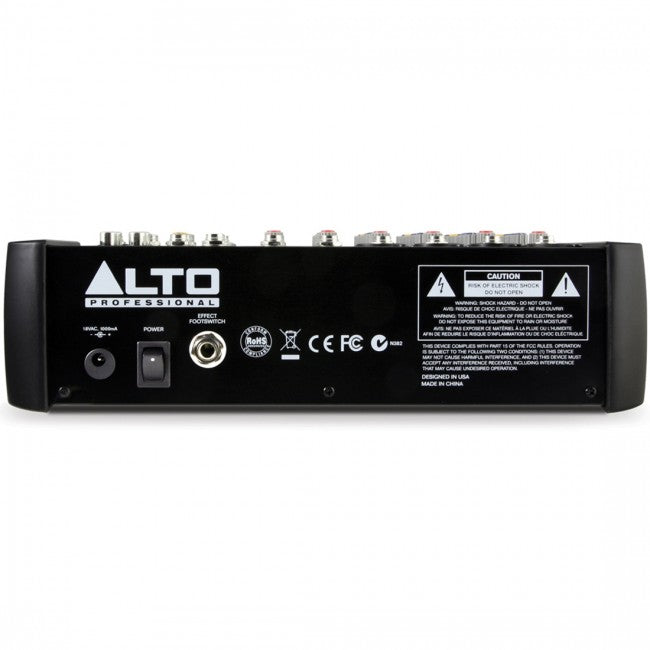

Footswitch input for effects on/off (sold separately)
2 aux sends per channel for external effects and monitoring
2-bus design with Main and Control Room 1/4” stereo outputs
Aux inputs/outputs for external audio source integration
Switchable phantom power

Input Channels: Mono channels (Ch. 1 - 4)
Microphone Input: Electronically balanced, discrete input configuration
Frequency Response: 20 Hz to 22 kHz, +/-1 dB
Distortion (THD&N): ≦0.005% At +4 dBu, 1 kHz
Gain range: 0 dB to 50 dB (Mic)
Maximum Voltage Gain: 70 dB Ch. Mic input → Main Mix out & Tape out, 80 dB Ch. Mic input → Control Room & Phones, 60 dB Ch. Mic input → Aux send
SNR (Signal to Noise Rate ): ≧110 dBu
Phantom power (Mic Pin 2 / Pin 3 and Pin 1): +48 V - with switch control

Line Input: Electronically Balanced
Frequency Response: 20 Hz to 22 kHz, +/-1 dB
Distortion (THD&N): ≦0.005% at + 4 dBu, 1 kHz
Gain Range: 15 dBu to 35 dBu

Stereo Channels: (Ch. 5 - 8)
Line Input: Electronically Balanced
SNR (Signal to Noise Ratio): ≧110 dBu
Frequency Response: 20 Hz to 22 kHz, +/-1 dB
Distortion (THD&N): ≦0.005% at +4 dBu, 1 kHz
Gain range: -20 dBu to +20 dBu, 60 dB Ch. Line → Main Mix out
Maximum Voltage Gain: 20 dB FX Return → Main Mix out, 20 dB RCA Tape input → Main Mix out

Impedance
Microphone Input: 3.9 kOhms
All Other Inputs: 10 kOhms or greater
Tape Out: 1 kOhms
All Other Outputs: 120 Ohms

Equalization
Mono Channels: High ±15 dB @ 12 kHz, Mid ±15 dB @ 2.5 kHz, Low ±15 dB @ 80 Hz
Stereo Channels: High ±15 dB @ 12 kHz, Mid ±15 dB @ 2.5 kHz, Low ±15 dB @ 80 Hz

Alesis DSP Section
A/D And D/A Converters: 24-bit
DSP Resolution: 24-bit
Type of effects: Hall, Room, Vocal & Plate Reverbs Mono & Stereo Delay (max delay time 650 ms) Chorus, Flanger & Reverb modulations, Reverb+Delay, Reverb+Chorus, Reverb+Flanger combinations
Presets: 256
Controls: 16 x 16-position preset selector
Crosstalk: Adjacent Input ≦-80 dB @ 1 KHz (Ch. 1-6) , Input to Output ≦-75 dB @ 1 KHz (Stereo L/R, Ch. 1-4, Pan: panned hard left or right)

Main Mix Section
Tape, Aux, Phones Output
Output level: 0 dBu Unbalanced, 1/4" Jacks, Max out +22 dBu Unbalanced, 1/4" jacks
Noise (Bus noise): ≦-90 dB @ 20 Hz ~ 22 KHz (channel & Main level at 0 dB, other at minimum, DSP mute)

Power supply: 18 V, 1500 mA
Rated power consumption: 27 W

Dimensions (WxLxH): 256mm x 250mm x 72mm
Weight: 5.07 lb
