Product Information

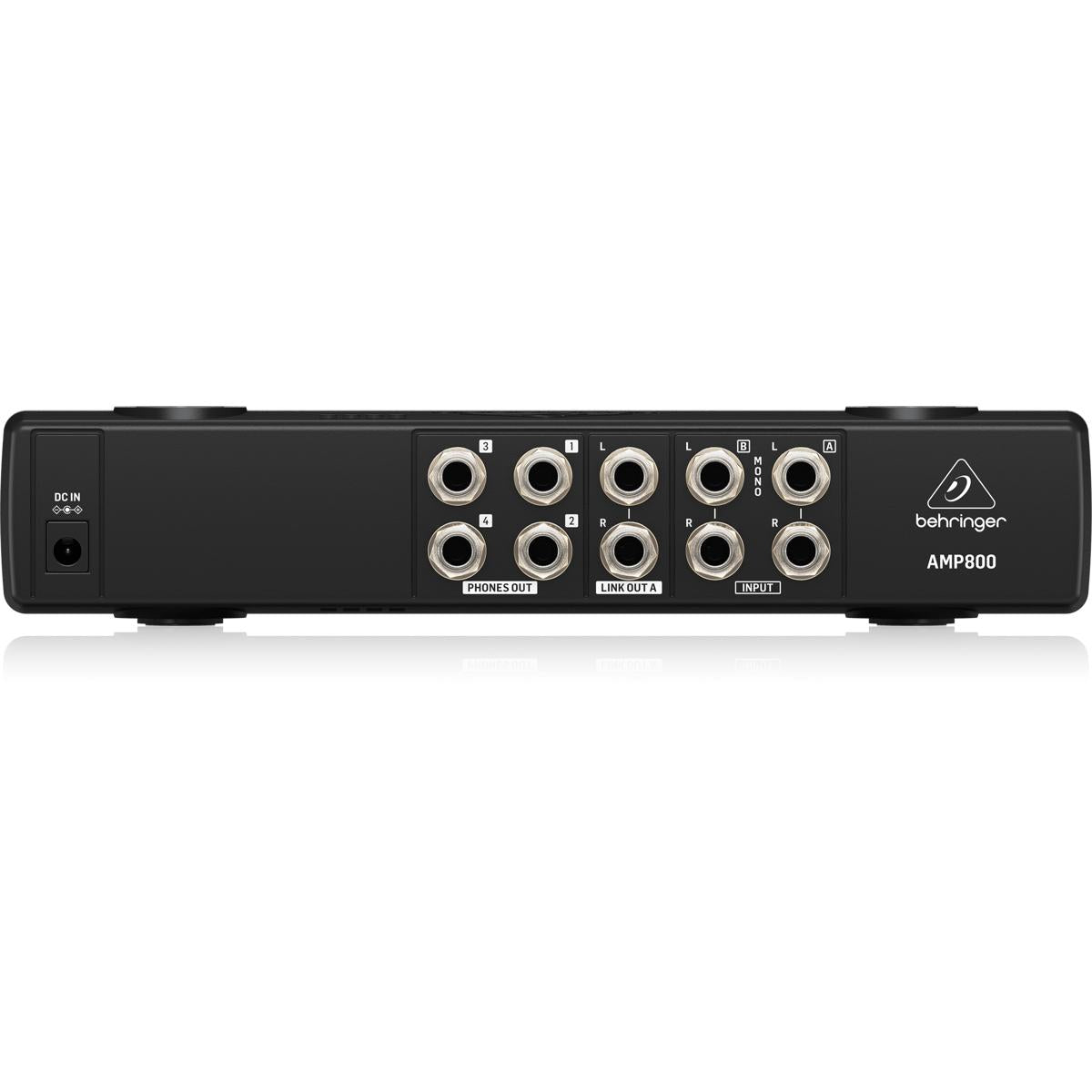

If you’re tracking more than one musician at a time, or if everyone in a group wants to listen to a playback, you need a monitor distribution system. The compact, flexible AMP800 can power up to 8 pairs of headphones and up to 2 different stereo mixes.
Features
Altogether Now
The AMP800 features 4 totally independent stereo high-power amplifier sections, each with dual outputs. You can use the Phones Level control plus the accurate 6-digit LED output meter per channel for easy level monitoring. There are 2 balanced Stereo Main Inputs with independent Level and Balance controls for individual mixes, selectable for all 4 of the headphone amplifiers.
Link Up
If you need to accommodate more than 8 listeners, the convenient Link Out A enables cascading additional AMP800s. Long-term reliability is guaranteed thanks to high-quality potentiometers and illuminated switches, and our ultra low-noise audio operational amplifiers provide outstanding sonic performance.
Specifications
Input
- Type: ¼" TRS connector, balanced
- Impedance: approx. 20 kΩ, balanced / approx. 10 kΩ, unbalanced
- CMRR: 40 dB typ. @ 1 kHz
Phones Out
- Type: ¼" TRS connector, stereo
- Impedance: min. 100 Ω
- Max. output level: +13 dBu @ 100 Ω load
Link Out A
- Type: ¼" TRS connector, balanced
System Specifications
- Frequency response: 10 Hz to 120 kHz, -3 dB
- Dynamic range: 108 dB, 10 Hz to 22 kHz (100 Ω load)
- Distortion: 0.007% typ. (100 Ω load)
- Crosstalk: >80 dB @ 1 kHz
- Signal-to-noise ratio: 10 Hz to 22 kHz >95 dB @ 0 dBu, a-weighted
Amplifier
- Max. output level: +21 dBm / 124 mW (100 Ω load)
- Min. output impedance: 47 Ω
Power Supply
- Mains connection: external power supply, DC 12V/1A
- Mains Voltage:
- USA/Canada - 120 V~, 60Hz
- U.K./Australia - 240 V~, 50Hz
- China - 220 V~, 50 Hz
- Europe - 230 V~, 50 Hz
- Japan - 100 V~, 50 - 60 Hz
- Power consumption: 12 W
Dimensions/Weight
- Dimensions (H x W x D): approx. 1.89 x 9.55 x 4.72"
- Weight: approx. 1.7 lbs / 0.77 kg
Warranty
3 Years WarrantyShipping & Delivery
