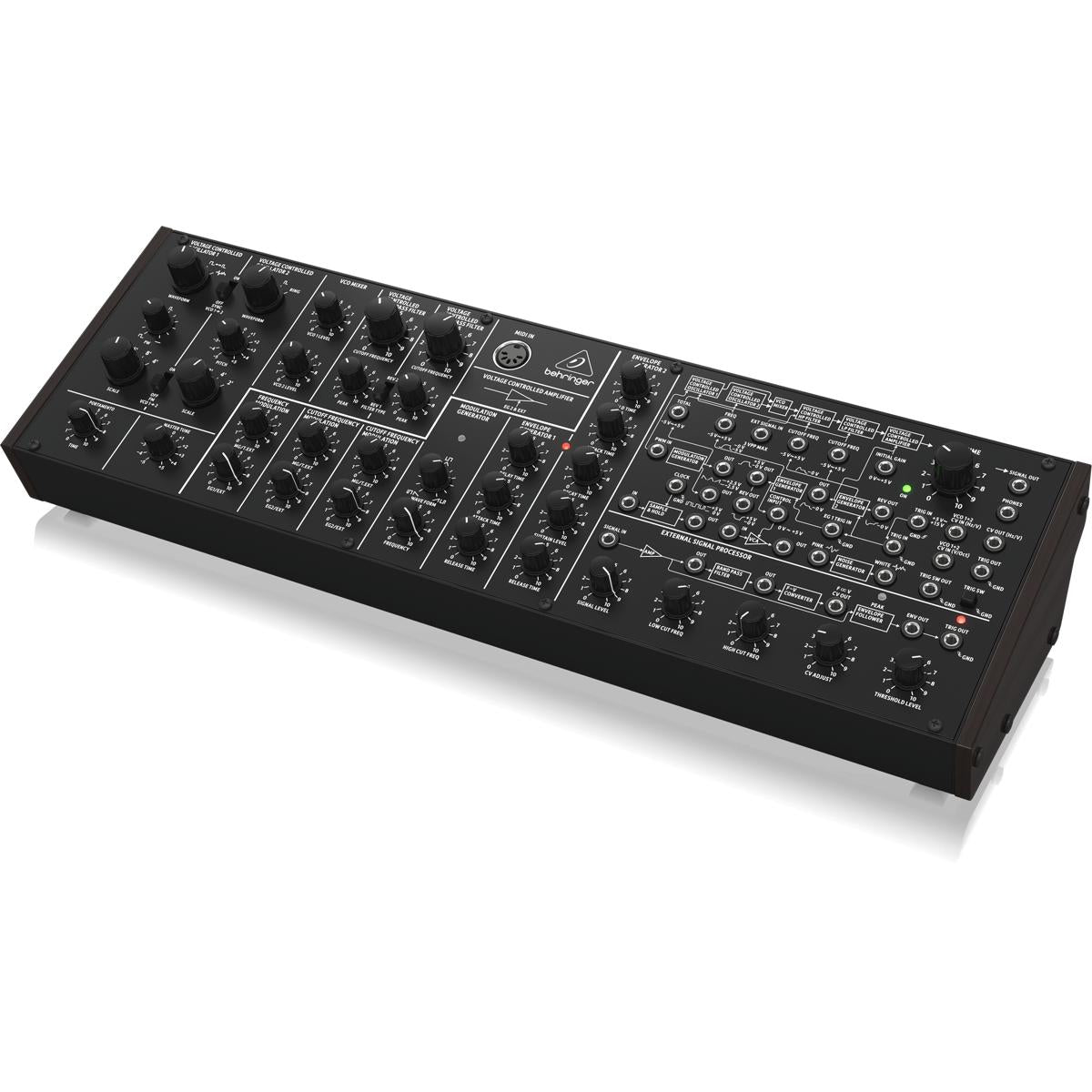

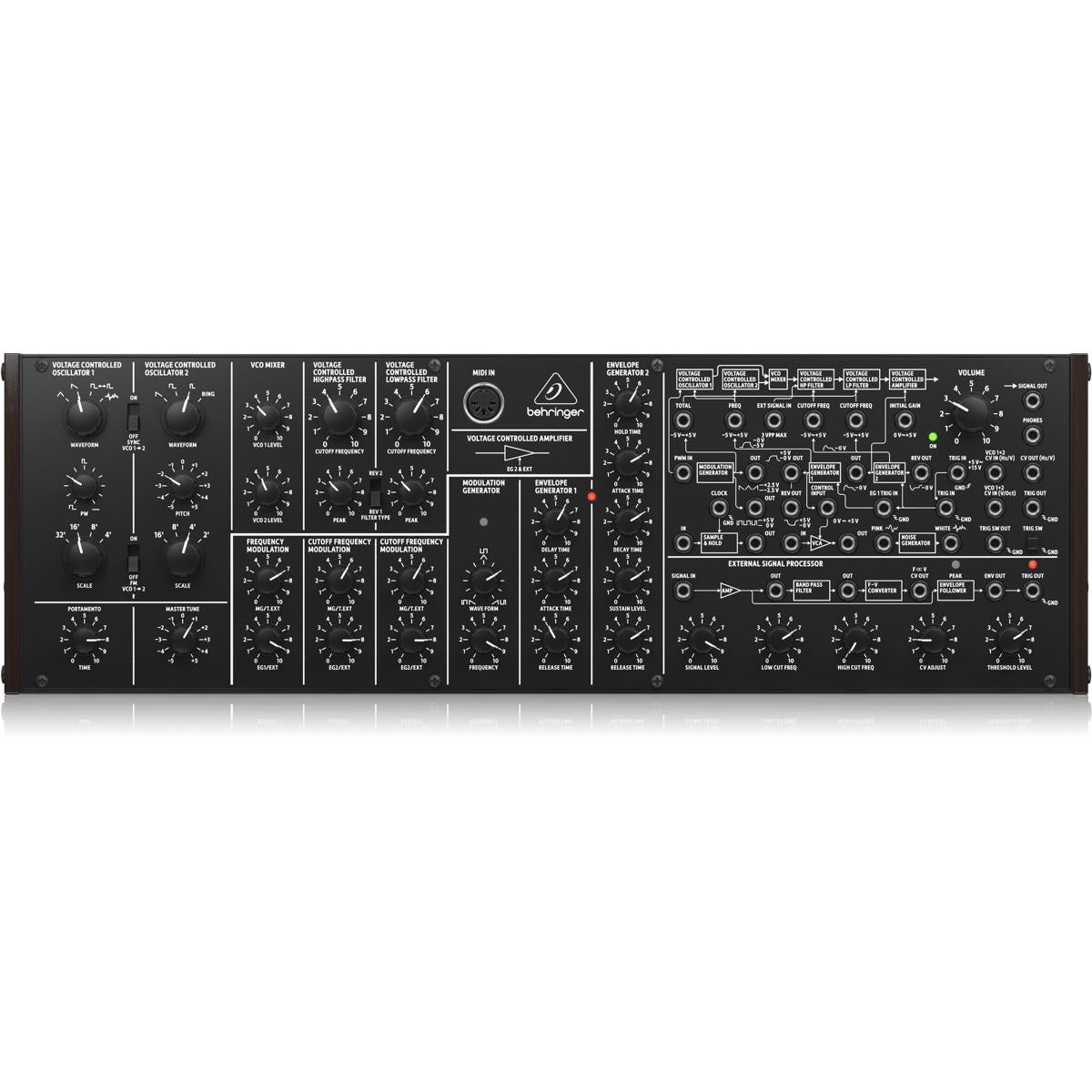

Although only produced from 1978 to 1983, Korg synthesizers have been favored by numerous world-famous artists including: Aphex Twin; Arcade Fire; Daft Punk; Depeche Mode Gorillaz; Snarky Puppy and a host of others. An ultra-affordable and modern homage to that iconic synthesizer, the K-2 MK II lets you conjure up virtually any sound with incredible finesse and ease. With its pure analog signal path, dual authentic VCOs, extremely flexible VCF and VCA filters and now also featuring OSC sync, FM and PWM plus V/Oct. for all CV/Gate in/outs, the K-2 MK II is sure to become your favorite synth. Owning the K-2 MK II is like having your own personal time machine, enabling you to embrace the past – or make your imprint on the future!
Great care has been taken in engineering the K-2 MK II, including the true to the original VCO, VCF and VCA designs and pure analog circuitry with matched transistors and JFETs. This highly-focused attention to detail is what gives K-2 MK II its ultra-flexible sound shaping capability, which covers everything from super-fat bass and lead tones to stunning effects – all the way out to the otherworldly sounds of your imagination.
The very heart of K-2 MK II’s sound is its versatile 6 dB High/12 dB Low filter. The high-pass filter sets the level of signals below the cutoff frequency, effectively reducing the fundamental and lower-order harmonics levels. The low-pass filter controls the level of signals above the cutoff, which reduces higher-order harmonic content. K-2 MK II’s VCF Peak controls provide emphasis to the signals at the crossover frequency.
Specifications
MODULATION SECTION
- Controls:
- Frequency modulation (mg/t.ext): 0 to 10
- Frequency modulation (eg1/ext): 0 to 10
- High pass filter cutoff frequency modulation (mg/t.ext): 0 to 10
- High pass filter cutoff frequency modulation (eg2/ext): 0 to 10
- Low pass filter cutoff frequency modulation (mg/t.ext): 0 to 10
- Low pass filter cutoff frequency modulation (eg2/ext): 0 to 10
- Modulation waveform: sawtooth variation and pulse width variation
- Modulation frequency: 0 to 10 (0.1 to 22 Hz)
- LED: Modulation frequency rate
ENVELOPE GENERATOR SECTION
- Controls:
- Envelope generator 1 delay time: 0 to 10 (0 to 5.5 s)
- Envelope generator 1 attack time: 0 to 10 (3.0 ms to 16 s)
- Envelope generator 1 release time: 0 to 10 (30 ms to 16 s)
- Envelope generator 2 hold time: 0 to 10 (0 to 14 s)
- Envelope generator 2 attack time: 0 to 10 (5.4 ms to 9 s)
- Envelope generator 2 decay time: 0 to 10 (0.5ms to 15 s)
- Envelope generator 2 sustain level: 0 to 10
- Envelope generator 2 release time: 0 to 10 (40 ms to 18 s)
- LED: Envelope generator action
EXTERNAL SIGNAL PROCESSOR SECTION
- Controls:
- Signal level: 0 to 10
- Low cut frequency: 0 to 10
- High cut frequency: 0 to 10
- CV adjust: 0 to 10
- Threshold level: 0 to 10
- 3.5 mm TS input: Signal in (Auto Pad System)
- 3.5 mm TS outputs:
- Amplifier: -∞ to 0 dBμ
- Band pass filter: -∞ to 0 dBμ
- F-V converter: 0 to +8 V
- Envelope follower: 0 to +5 V
- Trigger out: to GND
- LED:
- Peak envelope follower
- Trigger out
OUTPUT SECTION
- Controls: Volume (0 to 10)
- LED: Power
INPUTS AND OUTPUTS (TS 3.5 MM)
- Sample and Hold:
- In: 5 Vpp
- Out: 5 Vpp
- Clock in: to GND
- VCA:
- In: -5 V to +5 V
- Out: -5 V to +5 V
- Control input: 0 to +5 V
- Noise generator:
- Pink noise out: 5 Vpp
- White noise out: 5 Vpp
- Trigger switch: Out to GND
- Trigger:
- In: to GND
- Out: to GND
- VCO:
- VCO 1+2 CV in: 0 to +8 V
- VCO 2 CV in: 0 to +8 V
- VCO 1+2 frequency in: -3 V to +3 V
- VCA: Initial gain (0 to 5 V)
- Low pass VCF: Cutoff frequency (-5 V to +5 V)
- High pass VCF: Cutoff frequency (-5 V to +5 V)
- External signal: In (3 Vpp)
- Total (affects VCOs and VCFs): In (-5 V to +5 V)
- Keyboard: CV out (0 to +8 V exponential)
- Envelope generator:
- EG 1 out: 0 to +5 V
- EG 1 reverse out: +5 V to 0
- EG 1 trigger in: to GND
- EG 2 out: -2.5 V to +2.5 V
- EG 2 reverse out: -2.5 V to +2.5 V
- Modulation triangular/sawtooth waveform: Out (5 Vpp)
- Modulation pulse/square waveform: Out (0 to +5 V)
SWITCHES
- Trigger out, momentary
Warranty
3 Years WarrantyShipping & Delivery
