28/BN10-200X-8

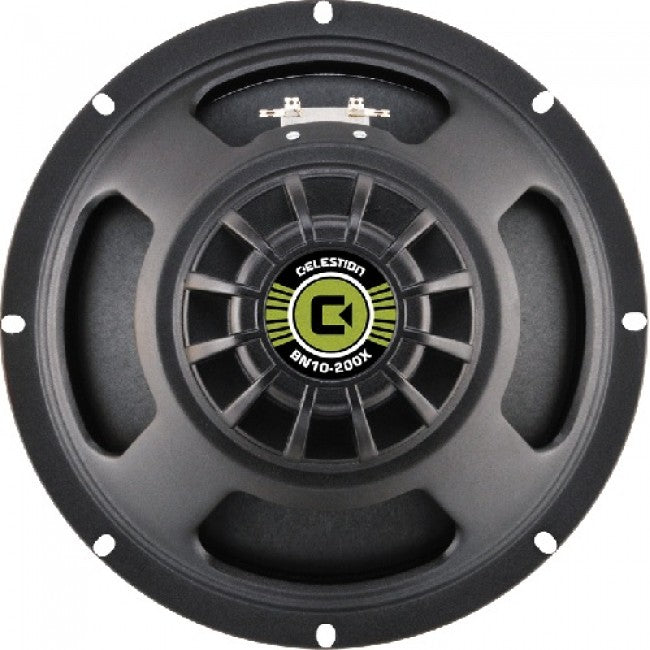

Celestion T5622 BN10 200X Bass Speaker 10 Inch 200W 8OHM

Pay With AfterPay Zip

Product Information:

Not every player wants a super-clean, high-fidelity bass sound. Characterised by an extended low end and greater linear excursion, Green Label speakers push out every note with a rich, warm tone and a powerful low-end thump.

Available with Ferrite or Neodymium magnets, Green Label speakers are primed for high-powered rock performances, where a full-bodied, warm, defined tone is essential.

Specifications:

Nominal diameter254mm/10in
Power rating200Wrms
Nominal impedance8Ω
Sensitivity96dB
Magnet typeNeodymium
Voice coil diameter50.8mm/2in
Coil materialCopper
Cone materialKevlar loaded paper
Former materialPolyimide
Surround materialCloth-sealed
Frequency range45-3500Hz
Xmax4mm/0.15in
Gap depth8mm/0.31in
Voice coil winding width16mm/0.62in
Small Signal Parameters
D0.21m/8.27in
Fs65Hz
Mair3.64g/0.128oz
Mmd28.9g/1.02oz
Qms3.57
Qes0.34
Qts0.31
Re5.8Ω
Vas31.15lt/1.09ft3
BI15.03Tm
Cms0.18mm/N
Rms3.73kg/s
Le (at 1kHz)0.68mH
Mounting Information
Cut-out diameter229mm/9in
Diameter256mm/10.1in
Mounting slot dimensions6 x 8mm/0.24 x 0.31in
Mounting slot PCD245mm/9.6in
Number of mounting slots4
Overall depth112mm/4.4in
Unit weight1.5kg/3.3lb
