Product Information:

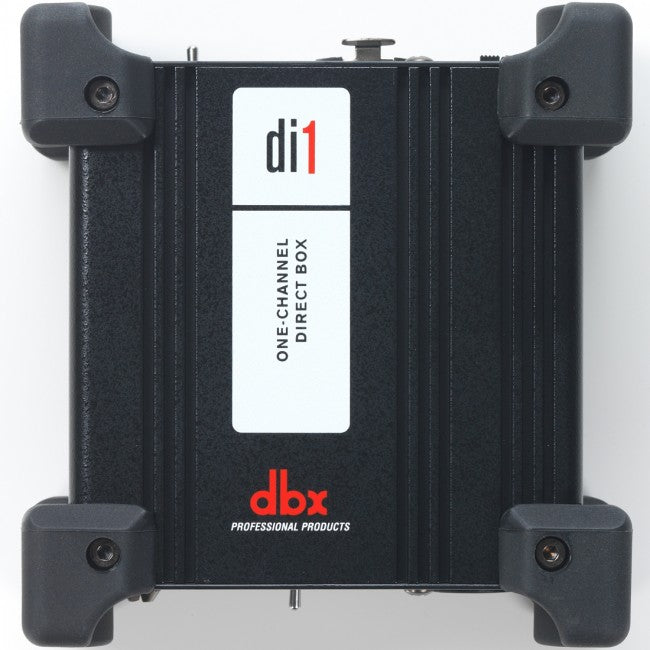

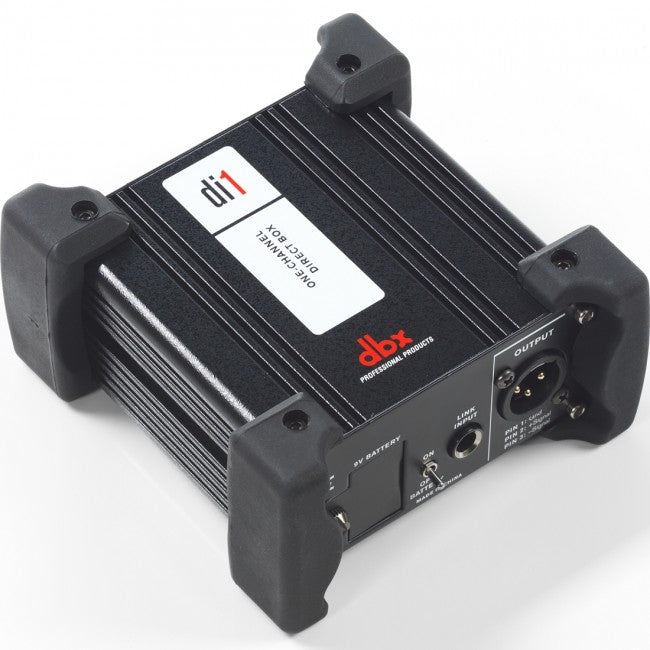

The dbx Di1 is a compact high-quality active direct injection box. Ideal for both studios and on the road, the Di1 will ensure audio signals reach their intended destination in both a balanced format and free from unwanted noise.
Connect the output from electric guitars, bass amplifiers, keyboards, etc., directly to a console mixer without the use of a microphone.
Built for toughness and reliability, the Di1 has all the features of a fully featured gig-ready workhorse DI unit.
COMPATIBLE WITH HARMAN CONNECTED PA
dbx Di1 is the ideal direct box for musicians who want to spend less time setting up and more time focusing on their music. Unlike ordinary direct boxes, the Di1 has embedded HARMAN ioSYS technology which enables it to automatically recognize and configure with the HARMAN Connected PA app and system of products, to take the guesswork out of setting up and getting consistently great sound. Current products with embedded ioSYS technology and HARMAN Connected PA compatibility include the Soundcraft Ui-series mixers, JBL PRX800 loudspeakers, dbx Di1 direct boxes, and AKG P5i microphones and the MDAi dynamic microphone adapter.
Specifications:
Level and impedance matching function
Output impedance: > 600 Ohms
Signal pass through connector

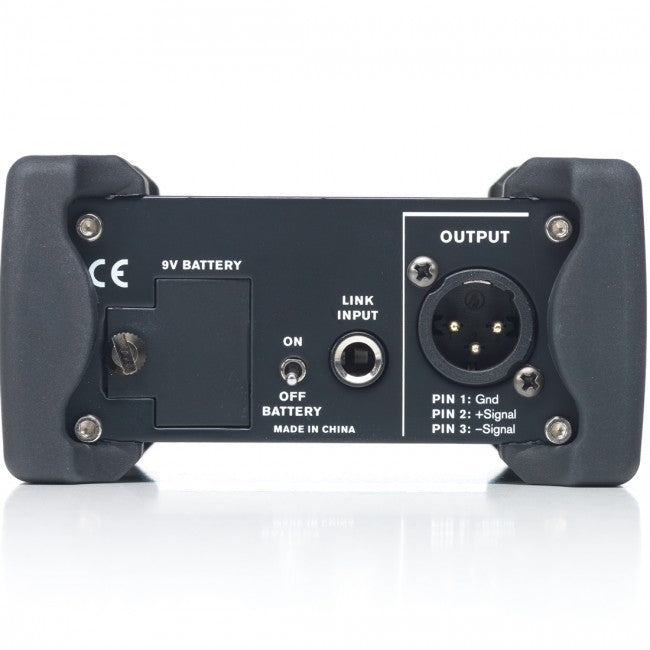

Output connector: XLR balanced
Battery LED indicator
Distortion: (THD) < 0.005% at 1kHz, 0dBu
Phantom power LED indicator
Max Input: +12dBu (at 0dB) Level +32dBu (at -20dB) +52dBu (at -40dB)
Output Noise: <-100dB unweighted

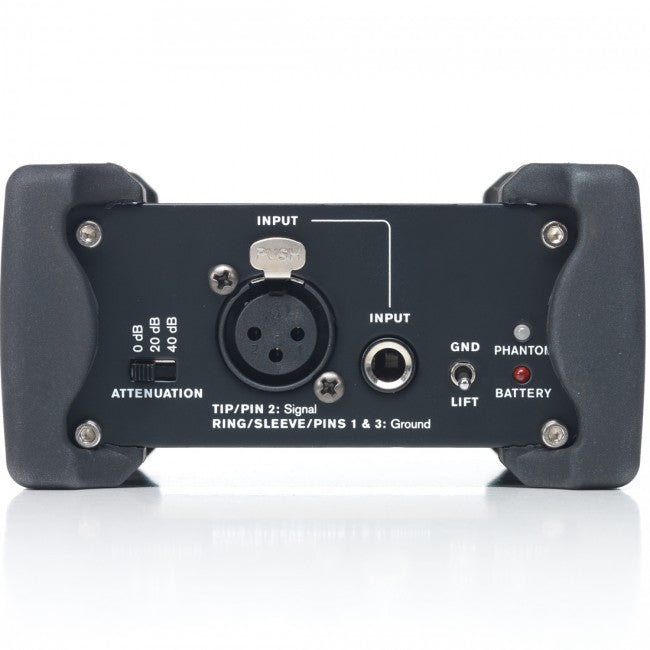

TS and XLR inputs and outputs
Frequency response: 10Hz to 70kHz, +0dB/-3dB
Attenuation control
Phantom Power: +18 volts DC to +48 volts DC
Ground lift switch
Main/Standby: 9V battery
Input Impedance: >250k Ohm
Metal Chassis
