KO-ARP2600M

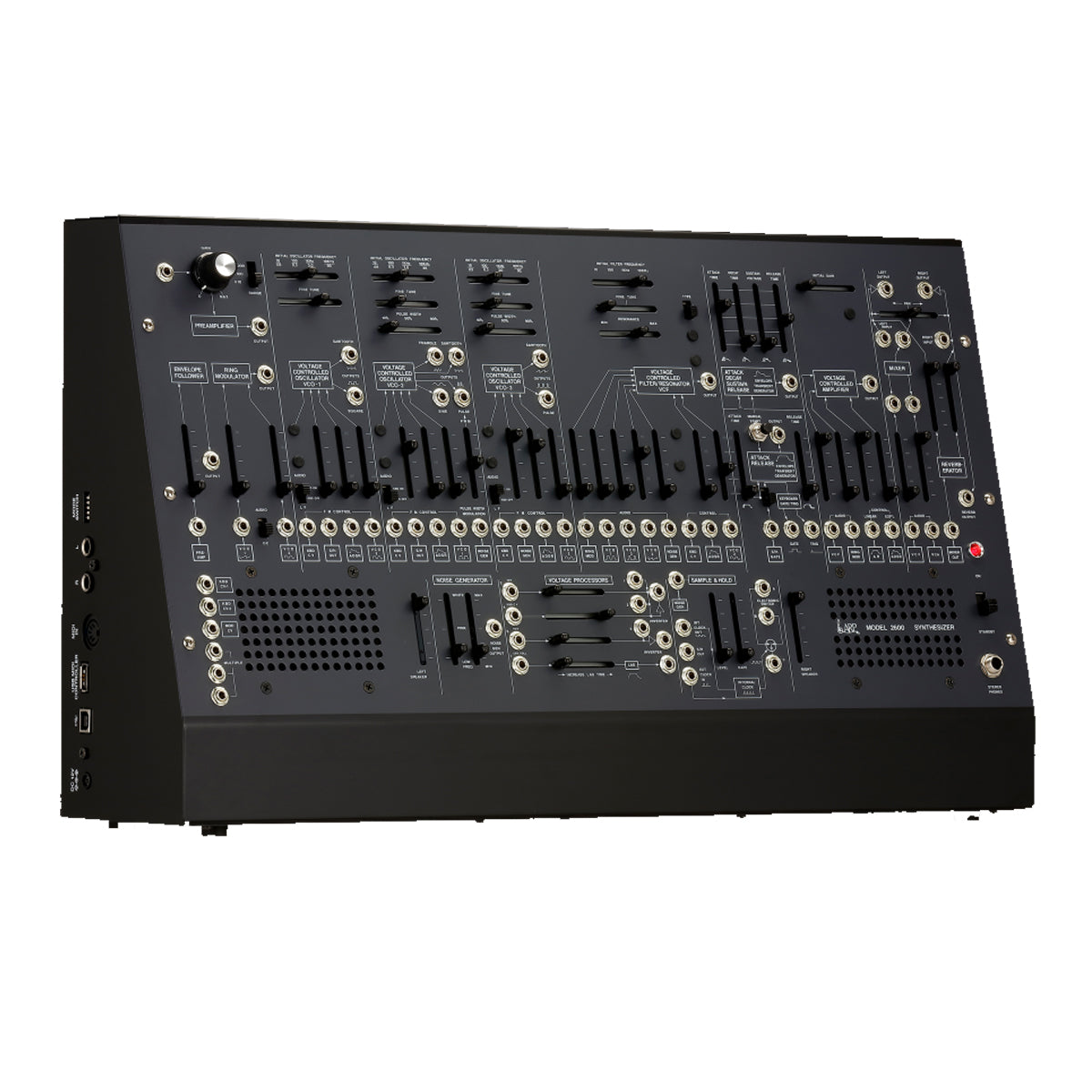

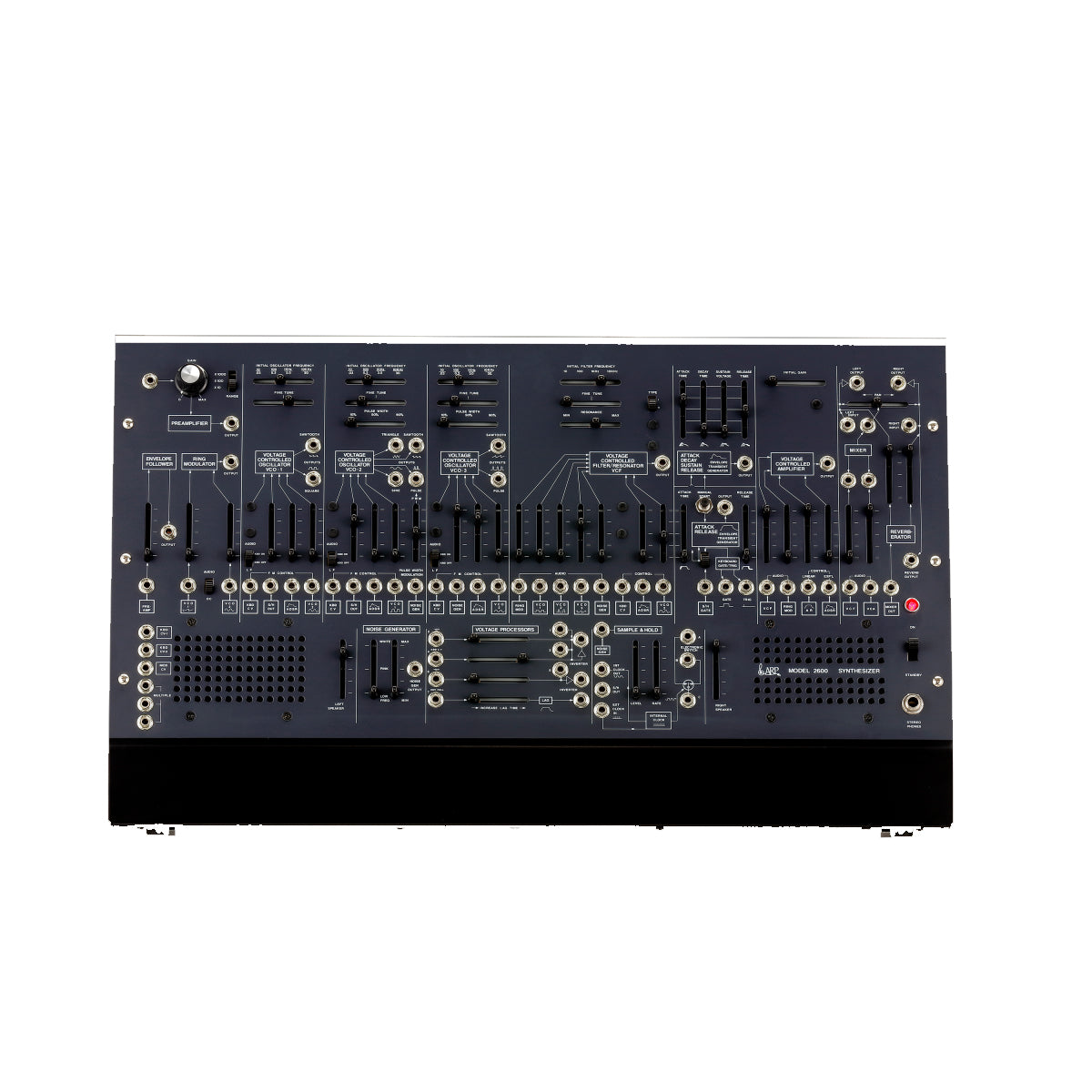

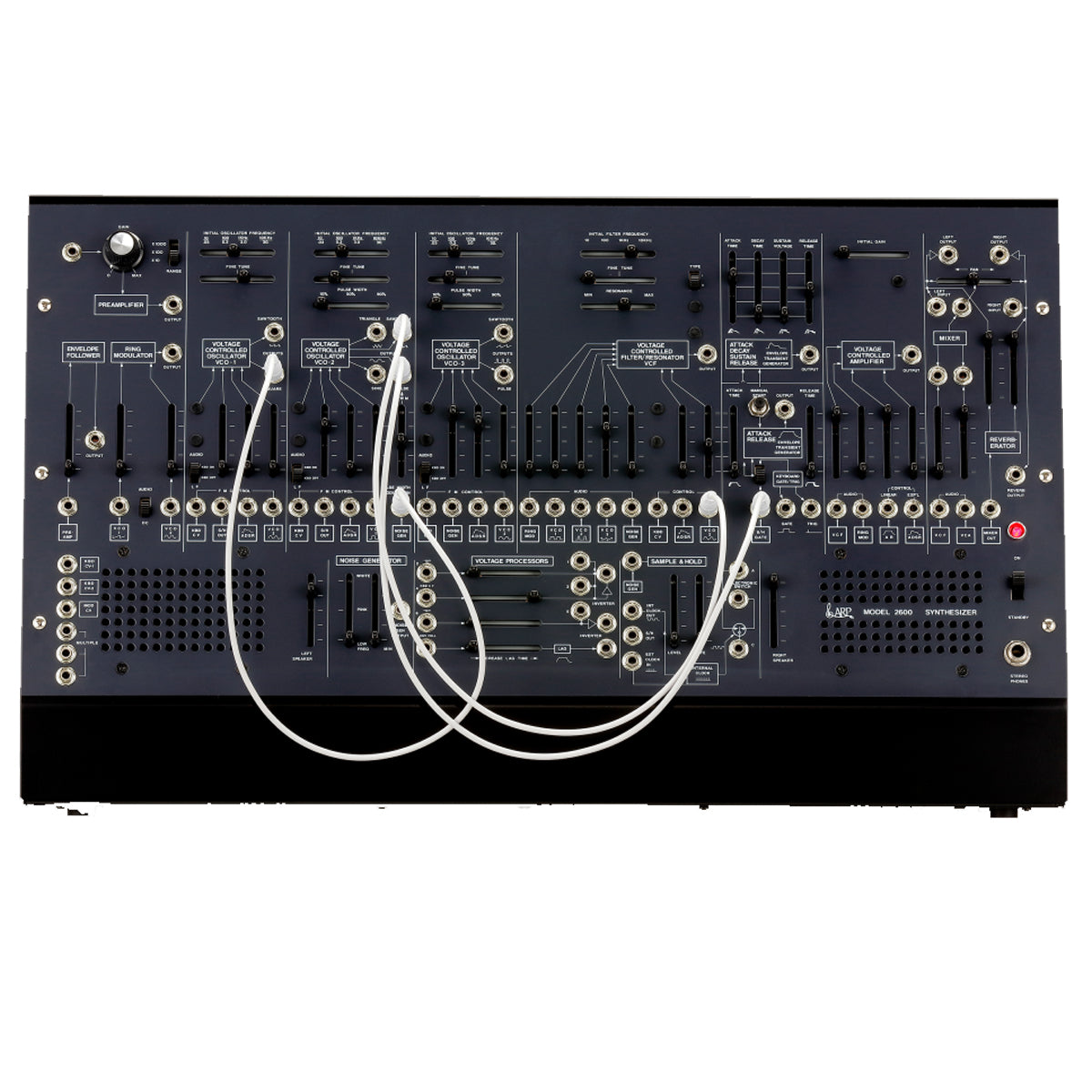

Korg ARP 2600 M Semi Modular Synthesizer Synth Mini w/ Case

IN STOCK - Ships today if ordered before 1pm AEST

    Pay With AfterPay Zip

    Or Rent From
    $18.24 per weekReturn any time after minimum rental agreement

    Product Information

    When the ARP 2600 FS was announced in January 2020, it quickly became a phenomenal success with musicians all over the world recognizing the faithfulness to the original ARP 2600.

    The ARP 2600 M is around 60% the original size, making it lighter, more portable and easier to place and use in a studio. It integrates the same analog circuitry and components as the ARP 2600 FS, thus faithfully reproducing the characteristic ARP sound.The new ARP 2600 M is not only faithful to the original, it also includes an array of added features that will make it even easier to use:

    Plug and play: Connect any class compliant MIDI controller such as a KORG microKeys, nanokeys or SQ-64 to one of the ARP 2600 M’s USB ports (USB-A and USB-B) and automatically get full control of your instrument!

    Resized: The new size makes it easier to visualize your patch and also allows you to use shorter patch cables

    Two types of filters from two versions of the original ARP 2600(4012 type, 4072 type DIN MIDI IN added

    Pitch-bend, Modulation and Portamento ON/OFF can be controlled through MIDI CC messages (USB/DIN MIDI)

    Normalized voltage: The threshold of the trigger signal required to activate the ADSR through the S/H GATE JACK has become 5V, making it much easier to use in combination with other gear such as volcas or Eurorack modules

    Improved Attack and Release time ratios

    L/R Stereo Output Jack (instead of XLR)

    Speakers turn automatically off when using headphones

    Improved, smoother sliders


    Specifications

    Operating temperature range
    0 – +40 °C (non‐condensing)
    Maximum Polyphony
    2 voices for duo phonic; normally monophonic
    VCO-1 (Voltage Controlled Oscilator 1)
    Waveforms
    Sawtooth, square
    Frequency range
    Approx. 0.03 Hz – 30 Hz (low freq. mode)
    Approx. 10 Hz - 10 kHz (audio mode)
    Voltage controlled response
    1V/oct.
    VCO-2 (Voltage Controlled Oscillator 2)
    Waveforms
    Sawtooth, pulse (dynamic pulse), triangle, sine
    Frequency range
    Approx. 0.03 Hz – 30 Hz (low freq. mode)
    Approx. 10 Hz - 10 kHz (audio mode)
    Pulse width
    10% – 90%
    Voltage controlled response
    1V/oct.
    VCO-3 (Voltage Controlled Oscilator 3)
    Waveforms
    Sawtooth, pulse (dynamic pulse)
    Frequency range
    Approx. 0.03 Hz - 30 Hz (low freq. mode)
    Approx. 10 Hz - 10 kHz (audio mode)
    Pulse width
    10% – 90%
    Voltage controlled response
    1V/oct.
    VCF (Voltage Controlled Filter)
    Type
    Low-pass (TYPE I : early 24 dB/oct., TYPE II: late 24 dB/oct.)
    Frequency range
    Approx. 10 Hz - 10 kHz
    Resonance
    1/2 - self oscillate
    VCA (Voltage Controlled Amplifier)
    Control voltage
    AR type (internally connected)
    ADSR type (internally connected)
    Noise generator
    Noise spectrum types (white and pink)
    RING MODULATOR
    Type
    Analog multiplier
    Input signal (Internally connected)
    VCO-1 sawtooth wave, VCO-2 sine wave
    SAMPLE & HOLD
    Sampled signal
    Noise (internally connected)
    AUDIO OUTPUT JACKS
    Front Panel (LEFT, RIGHT OUTPUT jacks
    Connector
    φ3.5 mm monaural phone jack
    Maximum output level
    +9 dBu @ 10 kΩ load
    Output impedance
    1.2 kΩ

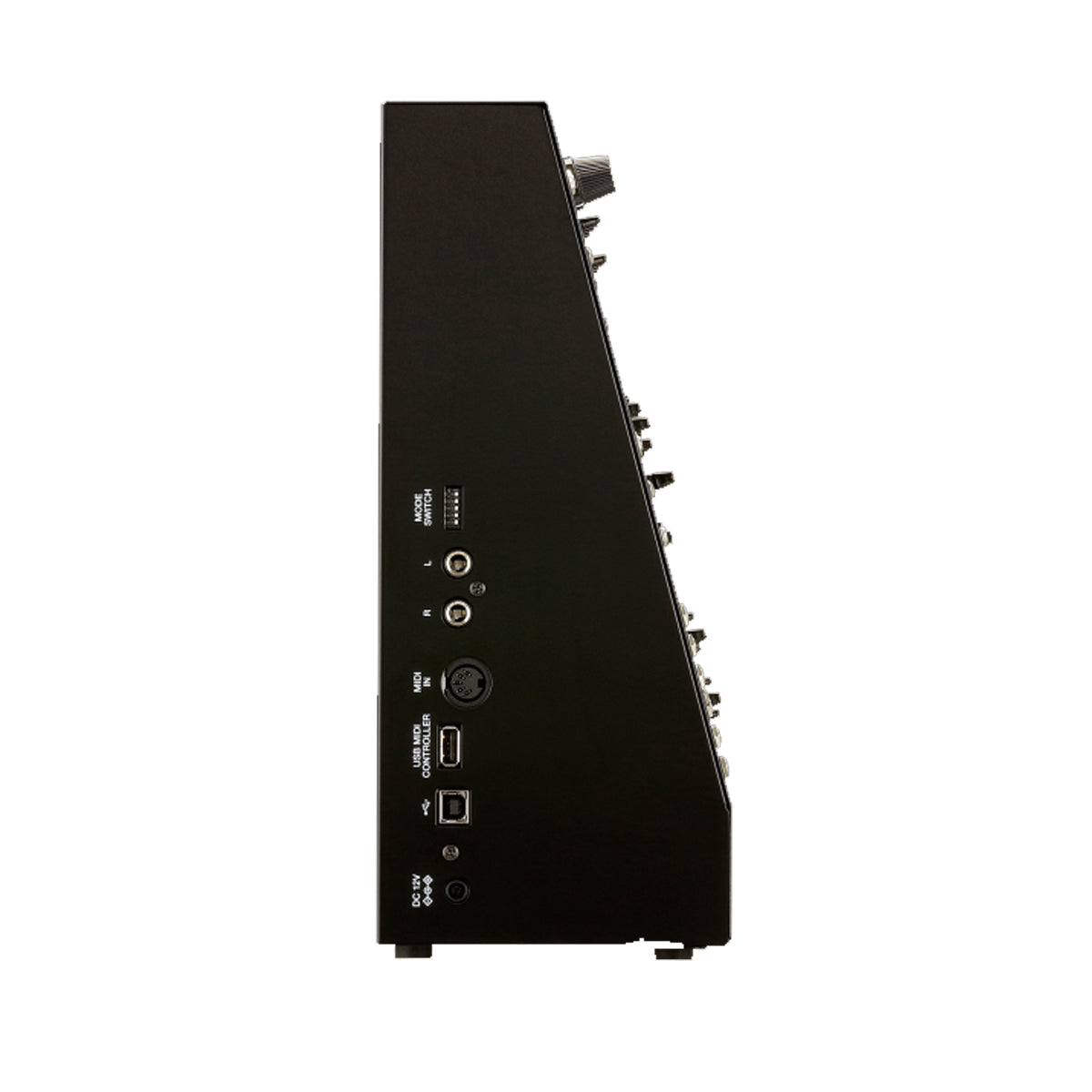

    Side Panel
    Connector
    φ6.3 mm monaural phone jack
    Maximum output level
    +4 dBu @ 600 kΩ load
    Output Impedance
    1.2 kΩ
    HEADPHONES JACK
    Connector
    φ6.3 mm stereo phone jack
    Maximum output level
    50 mW + 50 mW @ 33Ω load
    Output impedance
    20Ω
    EXTERNAL AUDIO INPUT (PREAMPLIFIER INPUT) JACK
    Connector
    φ3.5 mm monaural phone jack
    Maximum input level
    +2dBu *RANGE x10, GAIN knob Max(
    Input impedance
    100kΩ
    MIDI connector
    IN
    USB port
    Type A, Type B

    General

    Power supply
    AC power supply terminal (KA320)
    Power consumption
    13W
    Dimensions
    (W × D × H)
    520 × 129 × 311 mm / 20.5 x 5 x 12.2 inches,
    Weight
    5.9 kg / 13 lbs.
    Included Items
    Road case, AC power cord (KA320), patch cables, Owner’s manual, ARP sticker
    Accessories (Sold separately)
    microKEY2 series, SQ-64 amongst others

    Warranty

    1 Year (Extended to 3 Years via Registration) Warranty
