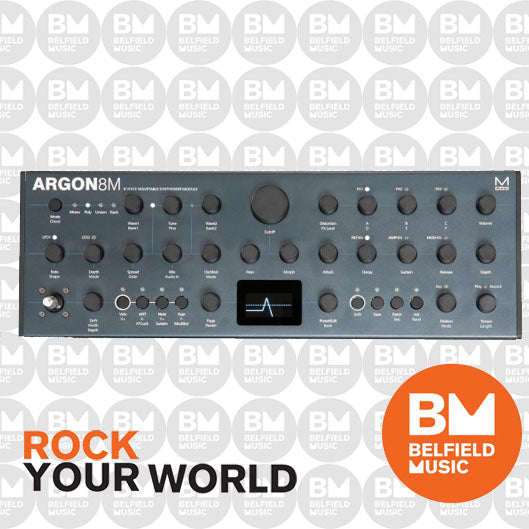

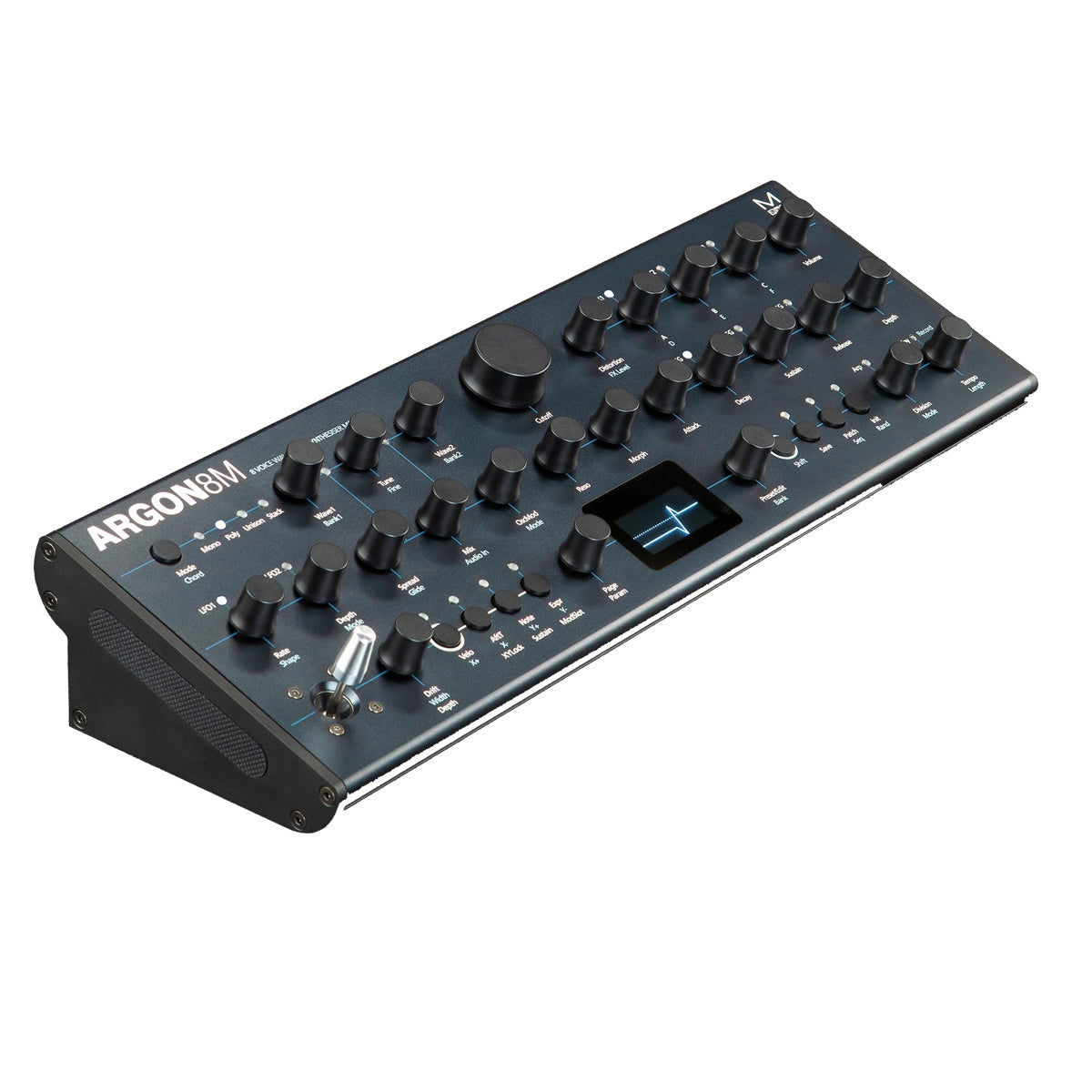

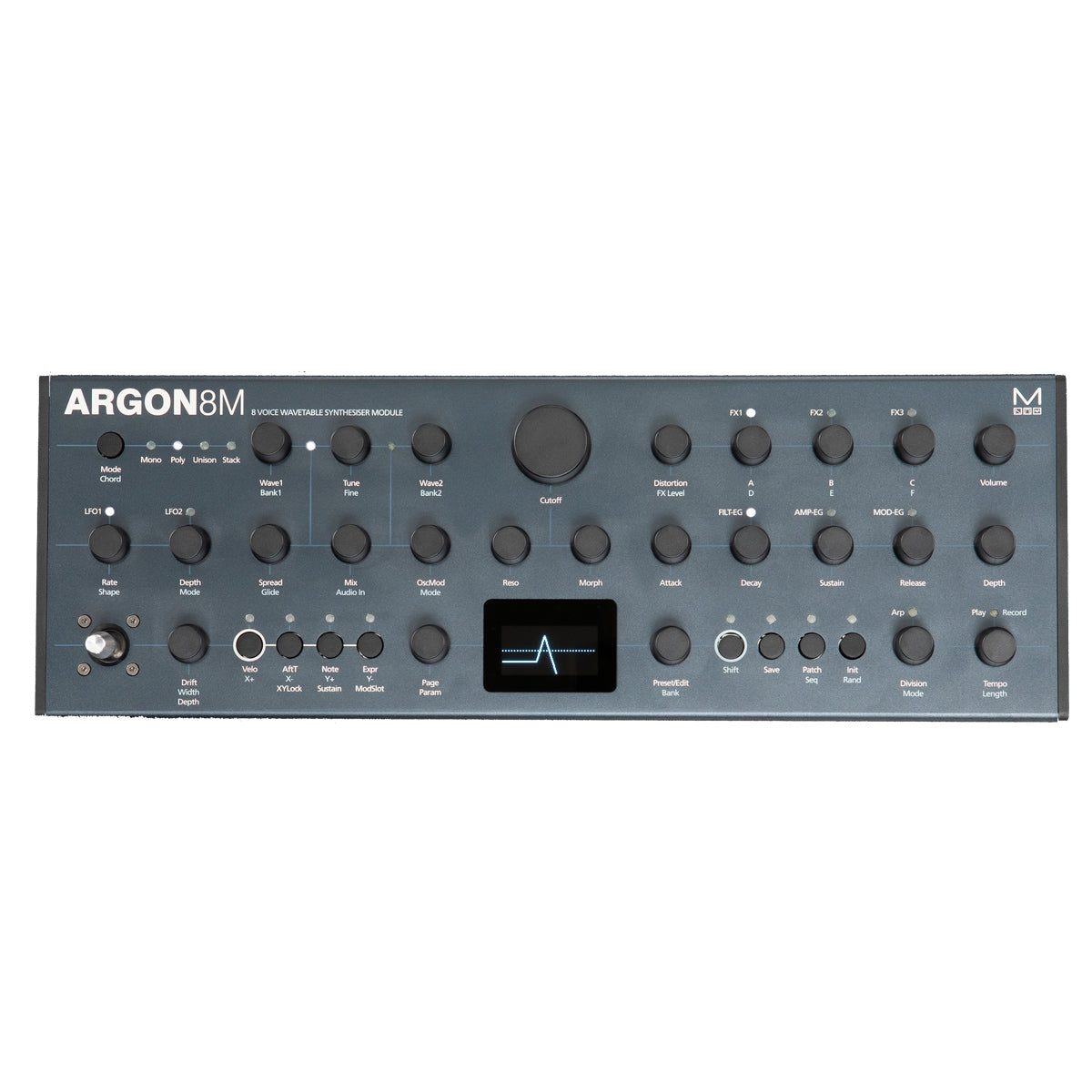

Modal Electronics ARGON8M Synthesiser Module - 8-Voice Wavetable Synth

Specifications

Polyphony

• True 8 voice polyphonic
• Mono-timbral

Oscillators

• 120 carefully crafted wavetables split into 24 banks of 5 morphable waveform sets, covering virtual analogue classics through to cutting edge EDM and many from the original Modal 002 as well as a whole range of mathematically generated tables. Additional PWM bank and 3 noise/modulation banks accessible on Oscillator 2
• 32 static wavetable processors including de-rez, wave folders, wave shapers, phase shapers and rectify that can be applied to the 120 wavetables to give a mind boggling array of permutations and new waveshapes
• 32 high resolution wavetable oscillators, 4 per voice, with 8 types of oscillator modifier including: Phase Mod (FM), Ring Mod, Amp Mod, Hard Sync and Windowed Sync
• Voice Drift and Width controls that help to create massive stereo soundscapes

Keyboard

• FATAR TP/9S Full size keys with both velocity and aftertouch, 37 on the ARGON8 and 61 on the ARGON8X
• 1.54 inch large OLED display – that provides instant visual feedback to the user at all times of playing/editing
• Multiple keyboard modes, Mono, Poly, Unison 2, unison 4, unison 8, Stack 2 and Stack 4
• Inbuilt sophisticated programmable arpeggiator of 32 steps with rest capability with up to 2048 steps before repeating
• Glide/Portamento with both legato and staccato modes

Filter

• Two pole morphing resonant filter with multiple filter types
• Filter can be morphed from low pass, through band pass, to high pass

Modulation

• Hugely powerful “Mod Matrix” with eight assignable slots with four additional fixed routes, 11 mod sources and 52 destinations
• A 4-axis joystick that can be assigned to a huge range of modulation destinations and virtually ‘locked’ when desired
• Three dedicated envelope generators for AMP, MOD and FILTER that can be accessed independently or all three simultaneously including negative (reverse) versions
• Two Audio rate LFO’s with tempo sync (one poly, one global). Polyphonic LFO can sync to frequency divisions

FX

• Waveshaping distortion
• Three incredibly powerful independent and user configurable stereo FX engines
• FX include Chorus, Phaser, Flanger (Positive or Negative), Lo-fi, Tremolo, Rotary, 3 x Delay types (Stereo, Ping-Pong, Crossover) and Reverb.

Sequencer

• Real time sequencer with 512 notes with input quantise and four recordable / editable parameter animations
• Delay FX, LFO’s, sequencer and arpeggiator can be either clocked internally or externally
• 100 sequencer presets that can be linked to any patch for quickly loading arrangements

Storage

• 500 patch memories, all fully editable and ships with 300 factory programs and 200 user patch spaces. Patch upload and download through the free MODALapp
• 100 sequencer presets and 100 FX presets
• Quick Recalls accessible from the panel for quickly loading your favourite patches. 8 slots on keyboard variants, and 4 on ARGON8M

Connectivity

• Analogue clock sync in and out (configured to the KORG / Teenage Engineering specification)
• MIDI DIN in and out
• Full size quarter inch jacks for stereo audio outs, headphones and external control such as sustain and expression
• 3.5 mm stereo input with ability to route incoming audio through the FX
• Class compliant MIDI provided over USB connection to host computer or tablet
• Optional MODALapp standalone software editor available for macOS, Windows, iOS and Android. Optional MODALplugin  VST3 / AU plugin for running MODALapp within your Digital Audio Workstation
• Power: DC-9.0V-1.5A

Physical

• Road ready Steel and Aluminium chassis

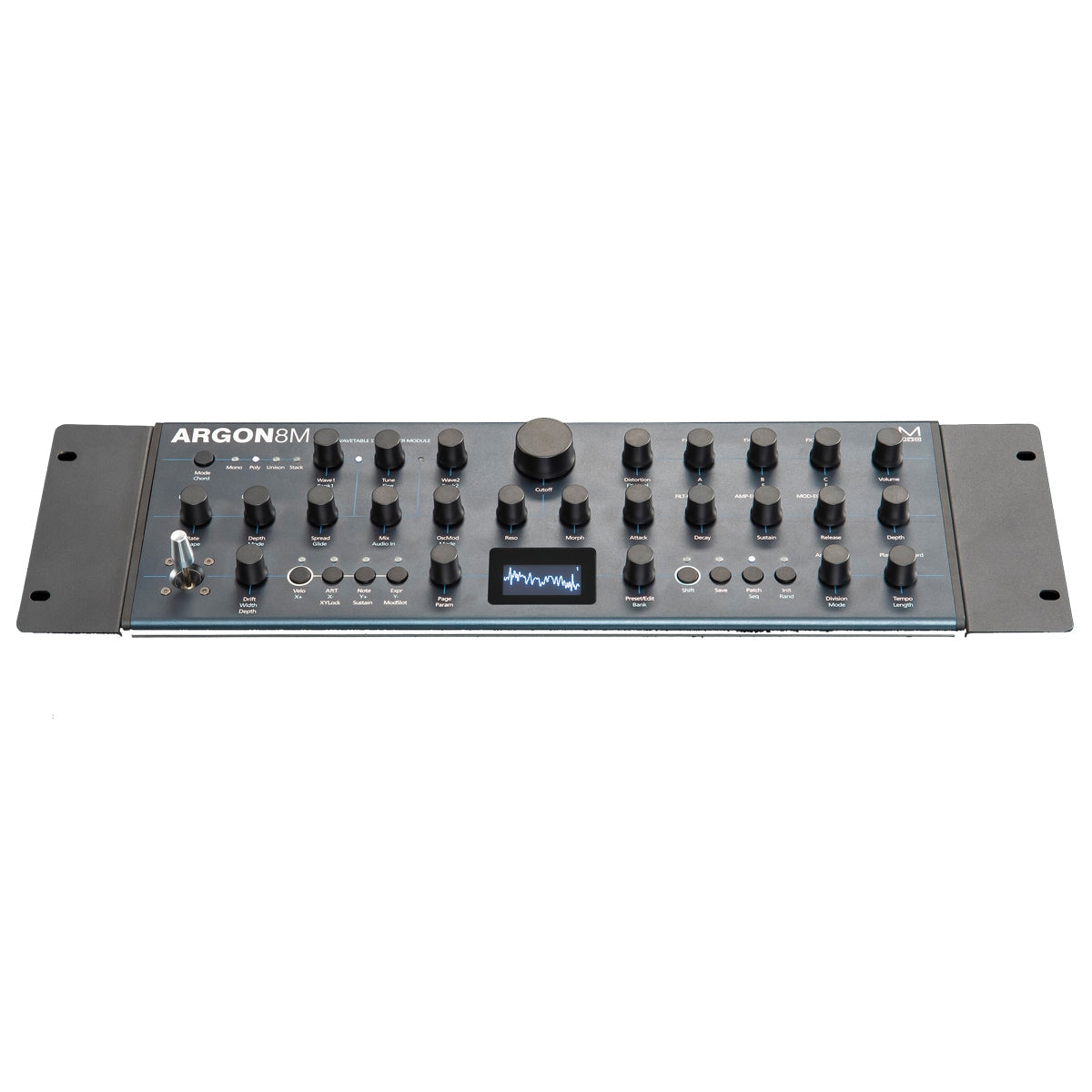

• ARGON8M – Width: 384mm – 15 inches / Depth: 127mm – 5 inches / Height: 80mm – 3 inches / Desktop or Rack mount – 3U 19” rack
