Modal Electronics CARBON8 Synthesiser 37-Note 8-Voice Experimental Synth

Specifications

POLYPHONY

• True 8 voice polyphonic

MPE

• Supports MPE-compatible MIDI controllers, allowing polyphonic control and expression to individual notes

OSCILLATORS

• Two independent high-resolution digital oscillators
• 56 complex Digital Core Waveforms per oscillator, including 18 Digital Algorithms and 38 sophisticated Wavetables
• Advanced XCore Modifiers, including Wave Shape, Wave Fold, Phase Distortion, and more
• Extended Oscillator Drift
• Vintage Parameter

DIGITAL CORE WAVEFORMS

FILTER

• 34 resonant Filter types, including morphable and static filters
• Cutoff Scaling with two distinctive modes

FILTER TYPES

MODULATION

• Three dedicated envelope generators for AMP, MOD, and FILTER, accessible independently or simultaneously, including reverse versions for MOD and FILTER ENVs
• Three audio-rate LFOs with tempo sync (two polyphonic, one global) with over 15 different shapes
• Eight assignable modulation slots and four additional fixed modulation routings
• 12 modulation sources and 55 modulation destinations

SEQUENCER AND ARPEGGIATOR

• Polyphonic Real-time sequencer with 512 notes and four recordable/editable parameter animations
• Polyphonic Step Sequencer with 64 steps, 8 notes per step, and 4 lanes of Parameter-Lock style animation
• Step Input mode, multiple playback modes including gate modes and rest functionality
• Built-in sophisticated programmable arpeggiator of 32 steps with rest capability
• Up to 2048 steps before repeating

FX

• Three independent and user-configurable stereo FX engines
• 26 Effects algorithms, including Drive, Chorus, Phaser, Flanger, Tremolo, LoFi, Rotary, Stereo Delay, Ping-Pong Delay, X-Over Delay, and Reverb

USER MEMORY

• 500 patch memories, fully editable with 300 factory programs
• 100 sequencer presets linkable to any patch for quick arrangement loading
• 100 FX presets
• 8 Quick Recall slots accessible from the panel

CONTROLS AND PERFORMANCE

• Premium FATAR 37-key Keyboard with velocity and channel aftertouch
• 29 endless encoders, 24 buttons

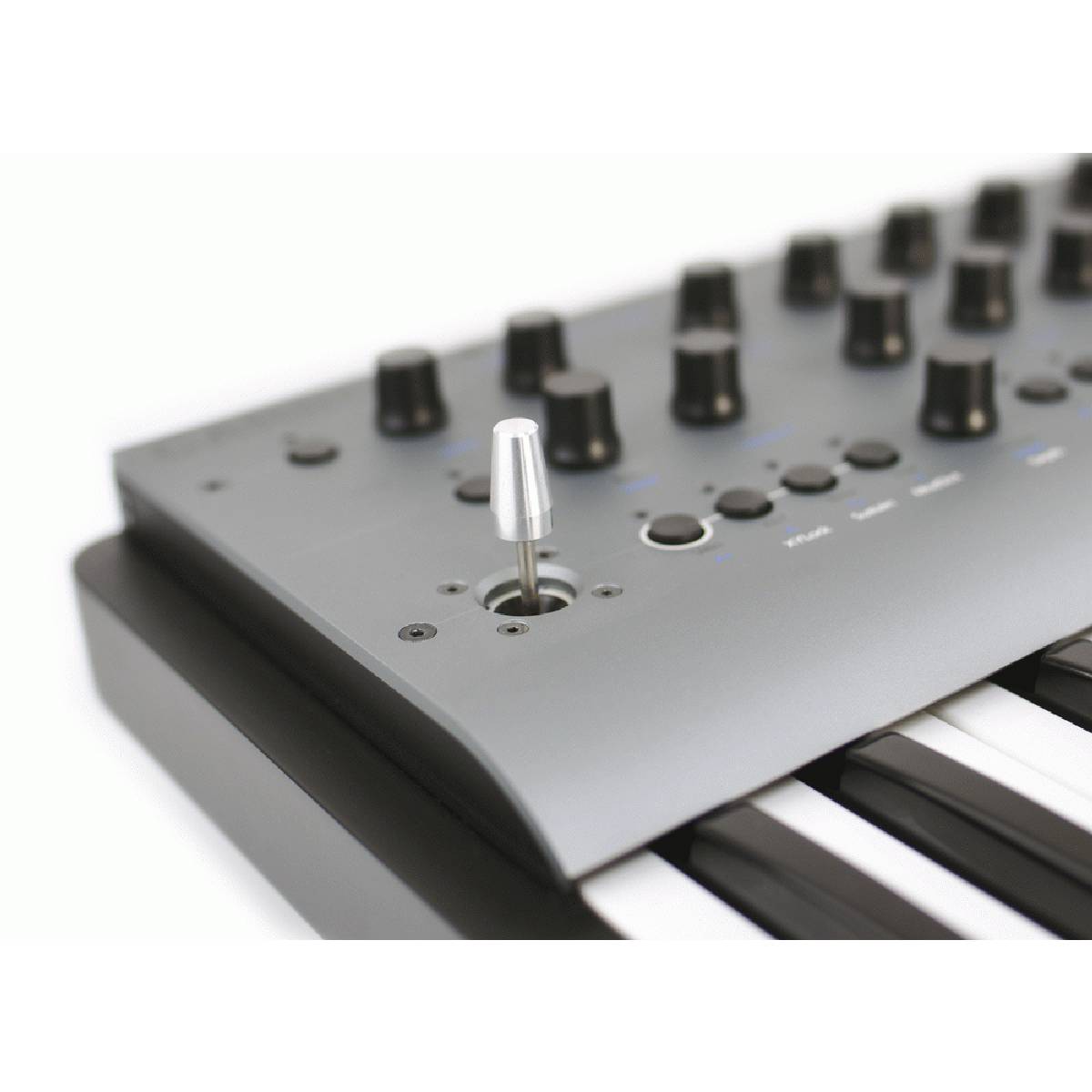

• 4-axis joystick assignable to a range of modulation destinations, with virtual lock feature
• Multiple keyboard modes: Mono, Poly, Unison 2, Unison 4, Unison 8, Stack 2, Stack 4
• Glide/Portamento with legato and staccato modes
• Chord Invert control for easy chord variations
• Supports MPE-compatible MIDI controllers

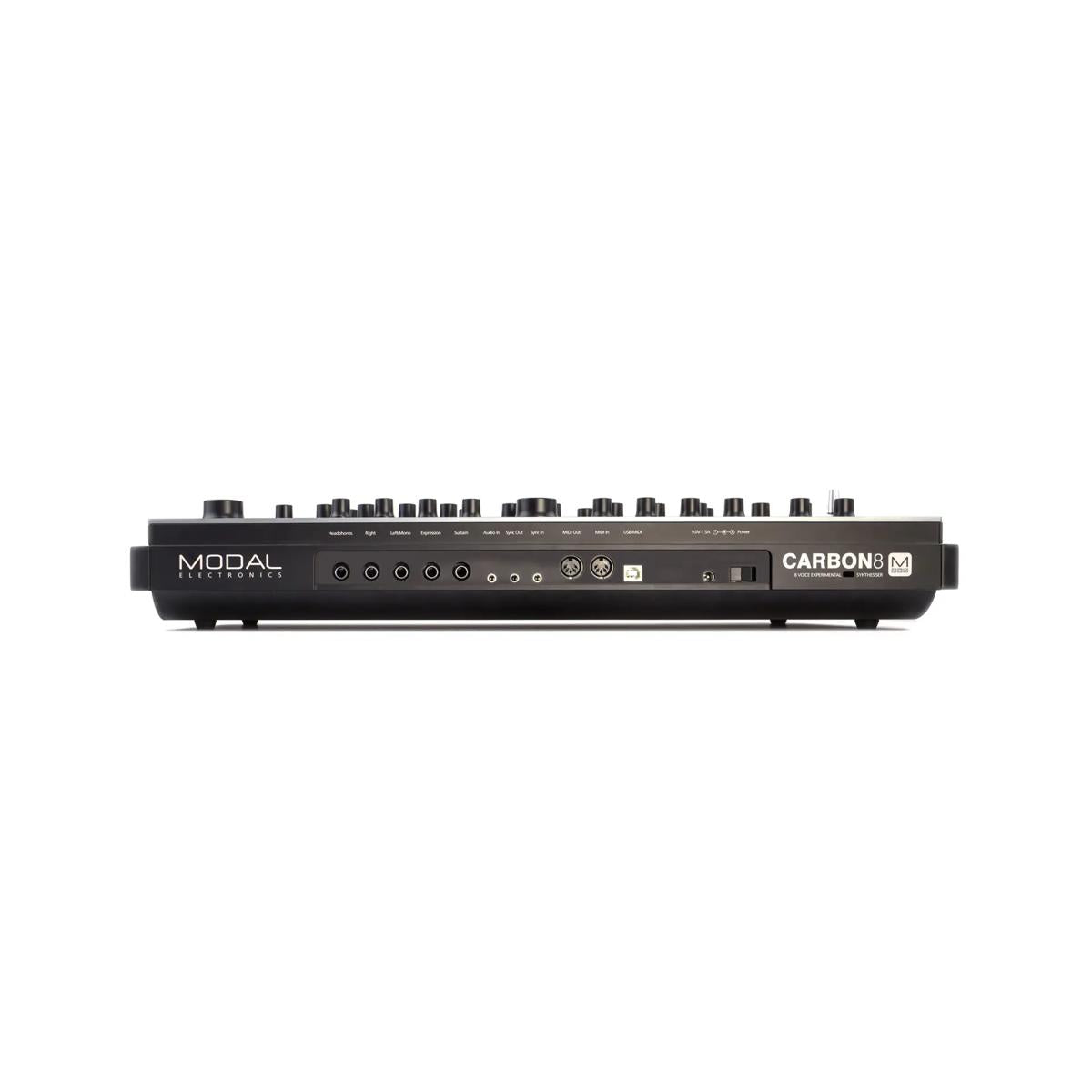

INPUTS AND OUTPUTS

• 6.35 mm / 1/4″ TS dual-mono line outputs
• 6.35 mm / 1/4″ TRS headphone output
• 3.5 mm / 1/8″ TRS stereo audio input
• MIDI DIN In and Out
• 3.5 mm / 1/8″ TS Analogue clock sync In and Out
• Class-compliant MIDI over USB connection
• 6.35 mm / 1/4″ TRS expression pedal input
• 6.35 mm / 1/4″ TS sustain pedal input

ENCLOSURE AND DISPLAY

• Road-ready steel and aluminium enclosure with stained bamboo end cheeks
• 1.54-inch large OLED display for instant visual feedback

POWER

• DC-9.0V – 1.5A centre-positive
