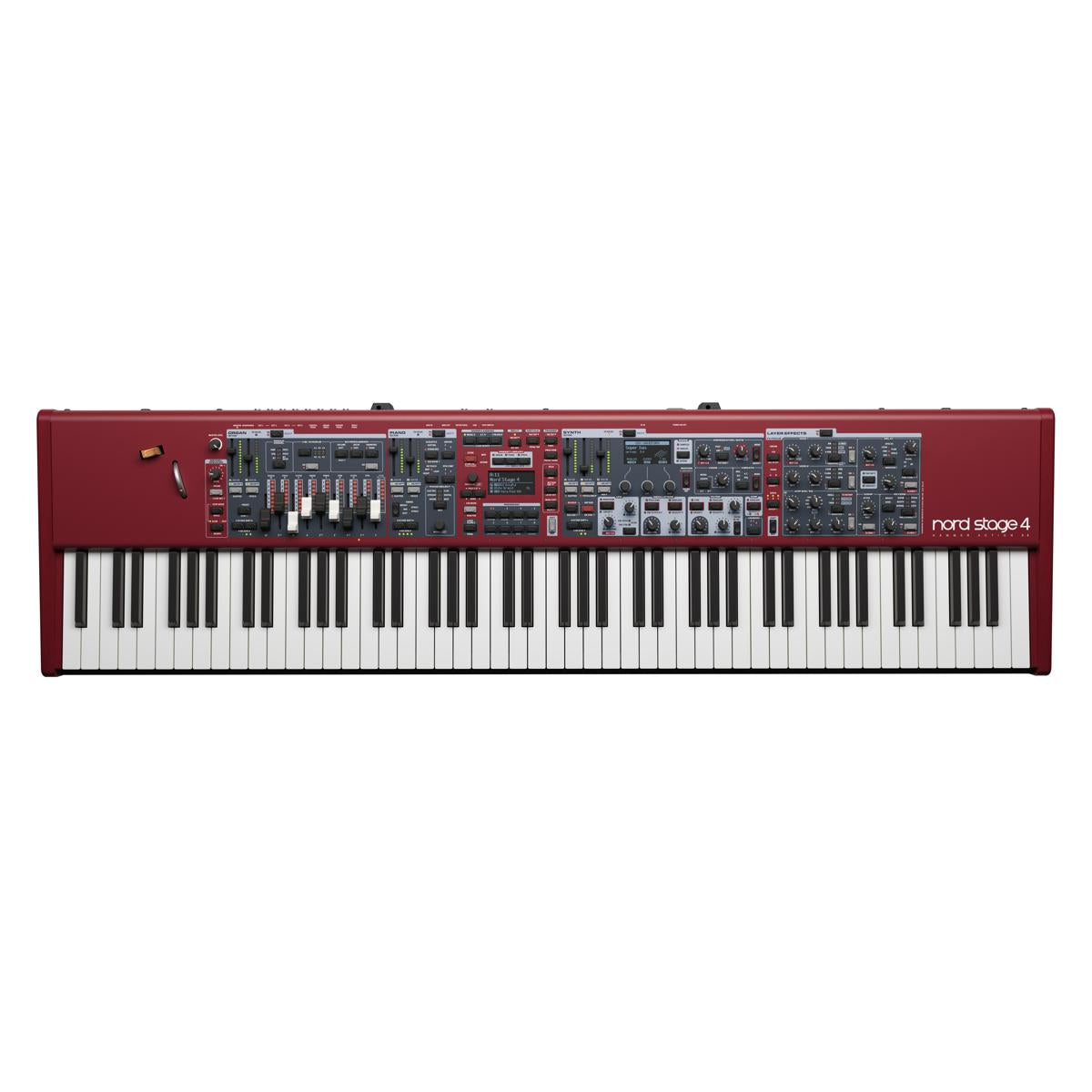

Nord Stage 4 88 Piano 88-Note Fully weighted w/ Aftertouch & Drawbars

Specifications

General

• Master Level Control
• Wooden Pitch Stick
• Modulation Wheel
• 512 Programs - 8 Banks With 8 Pages Each. Each Page Has 8 Program Locations
• Preset Library With Organ, Piano And Synth Presets Including Effects. 2x64 Organ Preset Locations, 2x64 Piano Preset Locations, 8x64 Synth Preset Locations.
•
• 8 Live Programs
• 2 Individual Layer Scene Setups
• 3 Morph Sources: Modulation Wheel (Also Controllable By Swell Pedal), Control Pedal, Aftertouch
• Stereo And Mono Output Routing Options
• Programmable Transpose +/- 6 Semitones
• Master Clock Functionality With Manual, External And Tap-Tempo Rate Control
• Internal And Midi Clock Source
• Midi Over Usb Functionality
• Level Control
• Aftertouch
• Up To 3 Split Points (4 Keyboard Zones) With Visual Led Indication Between Zones
• 3 Split Point Width (Crossfade) Options: Lrg, Sml Or Off

Organ Section

• Nord C2D B3 Tone Wheel Organ Simulation
• Vox Continental And Farfisa Models
• 2 Digital Pipe Organ Models
• B3 Bass Mode
• Physical Drawbars With Led Graphs
• Preset Or Drawbar Live Mode
• Percussion Controls
• Vibrato / Chorus Control
• 2 Layers (2-Part Multitimbral)

Piano Section

• 2 Gb Memory For Piano Sounds
• All Sounds Can Be Replaced Using Nord Sound Manager (Mac/Win)
• 120 Voice Polyphony
• Categories: Grand, Upright, Electric, Digital, Layer And Clav/Harpsichord
• 3 Selectable Keyboard Touch Curves (Heavy, Medium, Light)
• Piano Timbre Controls With Custom Settings For Electric Pianos And Clavinet
• String Resonance For Acoustic Grand Pianos And Uprights
• Selectable Soft Piano Release
• Pedal Noise When Used With Nord Triple Pedal 1, Nord Triple Pedal 2 Or Nord Sustain Pedal 2 On Selected Acoustic And Electric Pianos
• Dynamic Compression
• Unison Functionality
• 2 Layers (2-Part Multitimbral)

Synth Section

• Nord Wave 2 Synth Engine With Sample Playback
• Dedicated Oled Display For Waveform/Sample Selection And Parameter Editing
• 1 Gb Memory For Nord Sample Library
• All Samples Can Be Replaced Using Nord Sound Manager (Mac/Win)
• 46 Voice Polyphony
• Oscillator Types: Analog (Incl. Super, Noise And Misc Waveforms), Digital Waves, Fm And Sample
• Analog Waveform Options: Pure, Shape, Shape Sine, Multi, Super, Sync, Bell, Misc (Noise)
• Classic Transistor Ladder Filter (Lp M), 12 & 24 Db Low Pass, High Pass, Band Pass And Combined Low Pass/Band Pass (Lp+Bp) Filter
• Filter Drive: Off, 1, 2 And 3
• Filter Tracking: Off, 1/3, 2/3 And Full
• 3 Unison Modes
• Vibrato Modes Controllable From Mod Wheel, Aftertouch And Pedal.
• Filter Envelope (Attack, Decay/Sustain, Release) With Velocity Control
• Amplitude Envelope (Attack, Decay/Sustain, Release) With Velocity Control
• Oscillator Envelope (Attack, Decay/Sustain, Release) With Velocity Control
• Lfo With 5 Waveforms/Modes: Square, Triangle, Ramp Dn, Ramp Up And Sample & Hold
• Advanced Arpeggiator With Arp, Polyphonic And Gate Modes
• Arpeggiator Patterns For All Modes, With Accent And Pan Options
• Lfo And Arpeggiator Synchronizable To Master Clock
• 3 Layers (3-Part Multitimbral)

Effects

• Mod 1: Tremolo, Auto Pan, Ring Modulator, Wah-Wah, Auto-Wah, Pump (Sidechain Modulation). Variation For Each Effect
• Mod 2: Phaser, Flanger, Vibe, Chorus, Ensemble, Spin. Variation For Each Effect
• Delay With Tempo, Feedback And Mix (Dry/Wet) Controls, Ping Pong (Stereo Taps), Tap-Tempo, Feedback Filter (Hp/Lp/Bp), Feedback Effects With Variations And Panel Selectable Analog Mode.
• 3 Types Of Amp/Speaker Simulations, Twin, Jc And Small. Variation For Each Model
• Filter Mode (Hp24/Lp24) With Cut-Off, Resonance And Mix Controls
• Tube Amp Simulation With Adjustable Overdrive
• 3-Band Equalizer With Sweepable Mid. Eq Ranges: 100 Hz, 200 Hz - 8 Khz And 4 Khz
• Rotary Speaker: Selectable Speed (Stop, Slow And Fast) And Separate Overdrive
• Effect Rates/Tempo Can Be Synchronized To The Master Clock
• Compressor With Fast Mode
• Reverb: 6 Algorithms (Spring, Booth, Room, Stage, Hall And Cathedral) With Dark/Bright Modes And Variation/Chorale Options

Keyboard

• Nord Stage 4 88: 88-Key Triple Sensor Hammer Action Keyboard With Aftertouch. Range: A-C
• Nord Stage 4 73: 73-Key Triple Sensor Hammer Action Keyboard With Aftertouch. Range: E-E
• Nord Stage 4 Compact: 73-Key Triple Sensor Semi Weighted Waterfall Keyboard With Aftertouch. Range: E-E

Connections

• 4 Assignable Audio Outputs - ¼", 6,35 Mm Jacks, Unbalanced
• Stereo Headphone Output - ¼", 6,35 Mm Stereo Jack
• 1 Monitor Input - 1/8", 3,5 Mm Stereo Jack
• Sustain Pedal - ¼", 6,35 Mm Jack. Compatible With Nord Sustain Pedal 2 (Continuous Sensor), Nord Triple Pedal 1 And Switch Type   Pedals
• Triple Pedal - 5 Pin Din Connector. Compatible With Nord Triple Pedal 2
• Rotor Pedal - ¼", 6,35 Mm Jack. Use A Momentary Pedal Or A Switch Type Pedal.
• Organ Swell Pedal - ¼", 6,35 Mm Trs Stereo Jack.
• Control Pedal - ¼", 6,35 Mm Trs Stereo Jack.
• Foot Switch Input - ¼", 6,35 Mm Jack. Use A Momentary Two-Button Pedal Or A Single Switch Type Pedal.
• Midi In - 5 Pin Din Connectors
• Midi Out - 5 Pin Din Connectors
• Usb - Type B Connector For Usb Midi, Software Update And Sound Transfer
• Power Cord With Iec C14 Connector

Included Accessories

• Single Pedal 1 Included With Stage 4 73 And 88
• User Manual
• Power Cord
