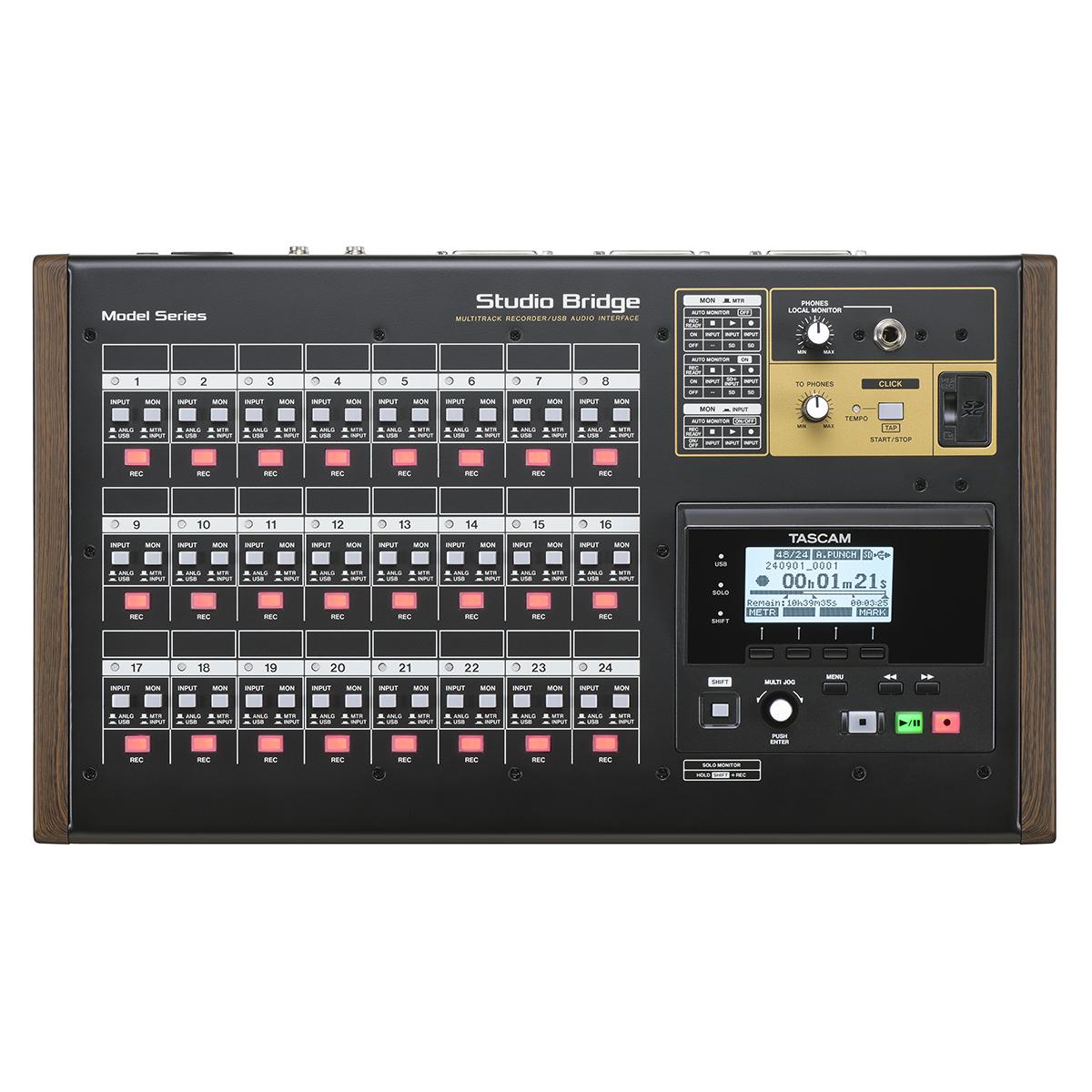

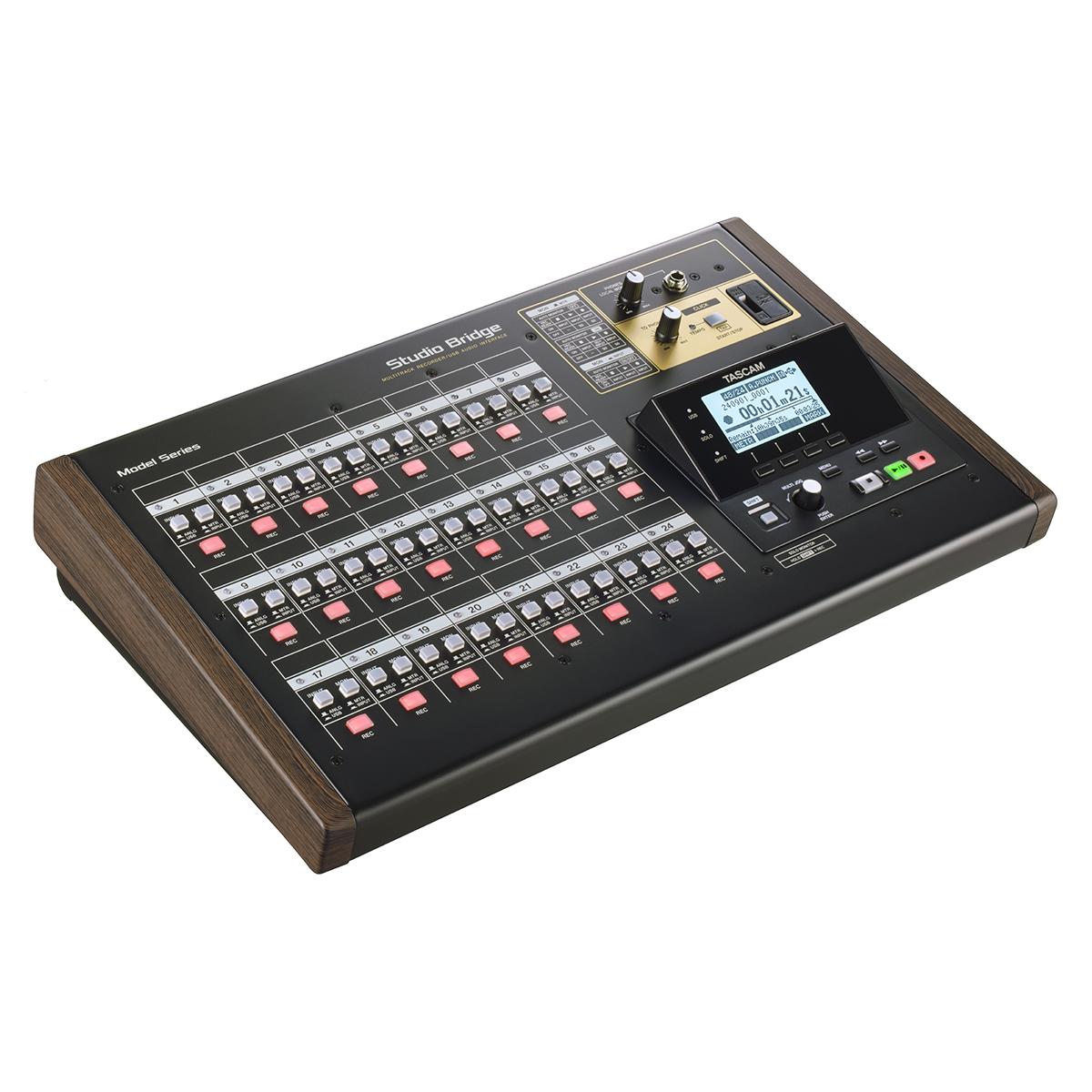

Tascam Studio Bridge 24-Track Multitrack Recorder / USB Audio Interface

Specifications

RECORDING FORMAT

• WAV (BWF)

PLAYBACK FORMAT

• WAV (BWF)

SAMPLING RATE

• 44.1/48 kHz

QUANTIZATION BIT DEPTH

• 16-bit / 24-bit

MAXIMUM NUMBER OF RECORDING TRACKS

• 24

MAXIMUM NUMBER OF INPUT AND OUTPUT CHANNELS

• Inputs: 24
• Outputs: 24

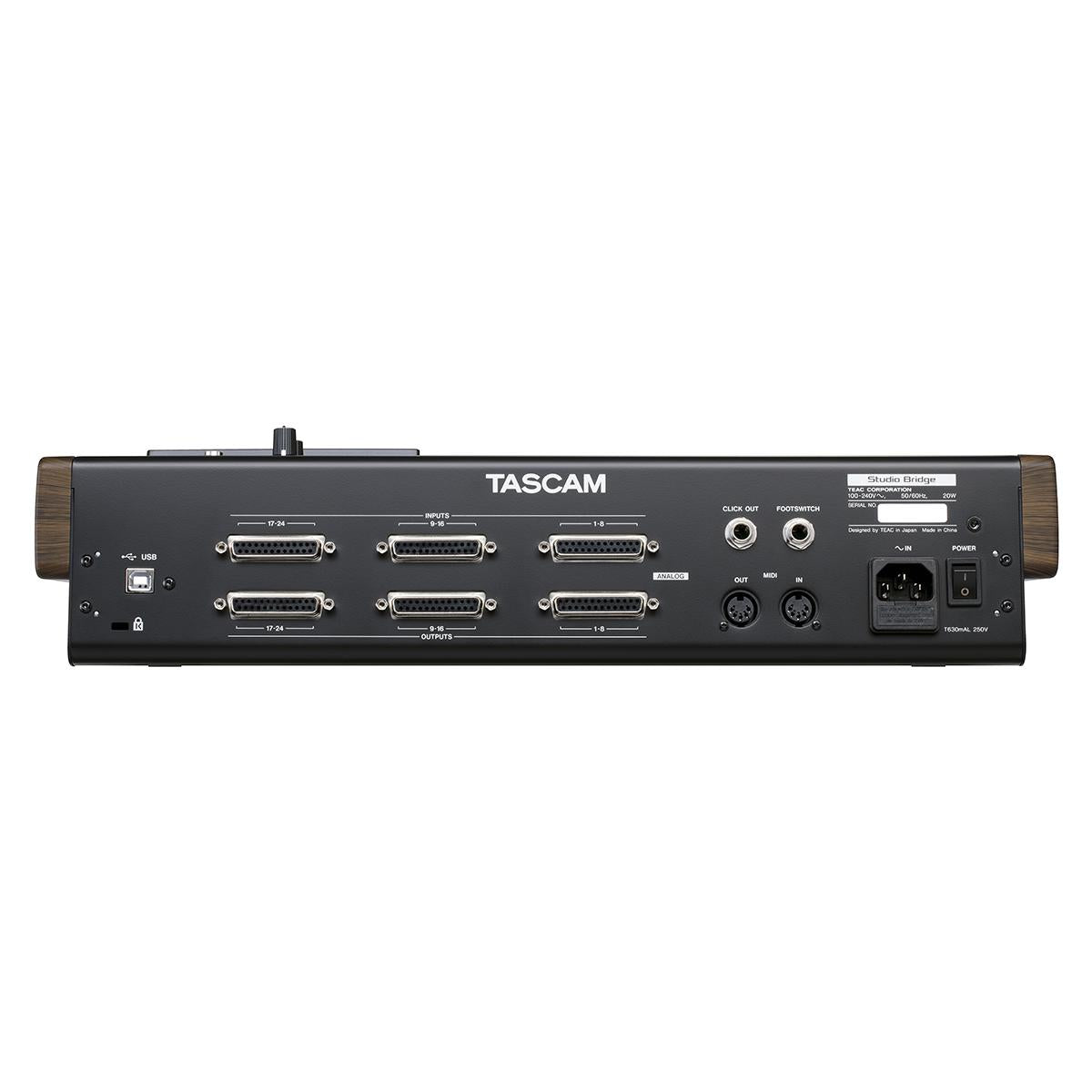

ANALOG AUDIO INPUT/OUTPUT RATINGS

LINE INPUT CONNECTORS (1–8, 9–16, 17–24)

• Pin assignments (same for 1–8, 9–16 and 17–24)
• TASCAM DB-25 Pinout Standard (AES59-2012 compliant)
• Connector: 25-pin balanced D-sub
• Fixed screws: No. 4-40 UNC (inch type)
• Maximum input level: +24 dBu
• Nominal input level: +4 dBu
• Input impedance: 10 kΩ or more

LINE OUTPUT CONNECTORS (1–8, 9–16, 17–24)

• Pin assignments (same for 1–8, 9–16 and 17–24)
• TASCAM DB-25 Pinout Standard (AES59-2012 compliant)
• Connector: 25-pin balanced D-sub
• Fixed screws: No. 4-40 UNC (inch type)
• Maximum output level: +24 dBu
• Nominal output level: +4 dBu
• Output impedance: 200 Ω

PHONES/LOCAL MONITOR JACK

• Connector: 6.3mm (1/4") standard stereo jack
• Maximum output: 80 mW + 80 mW (into 32Ω load)
• Working impedance: 16 to 600 Ω

CONTROL INPUT/OUTPUT RATINGS

USB

• Connector: USB Type-B
• Transfer format: USB 2.0 High-Speed
• Device classes: Mass storage, USB audio class 2.0 (USB class compliant)

USB AUDIO

• Sampling rate: 44.1 kHz / 48 kHz
• Quantization bit depth: 24-bit
• Number of inputs: 24 channels (Output from this unit)
• Number of outputs: 24 channels (Input to this unit)

CLICK OUT JACK

• Connector: 6.3mm (1/4") standard TRS jack (Tip: HOT, Ring: COLD, Sleeve: GND)

FOOTSWITCH JACK

• Connector: 6.3mm (1/4”) standard TRS jack (Tip: FOOTSW1, Ring: FOOTSW2, Sleeve: GND, supports momentary (unlatch) types)

MIDI OUT CONNECTOR

• Connector: 5-pin DIN
• Format: MIDI 1.0

MIDI IN CONNECTOR

• Connector: 5-pin DIN
• Format: MIDI 1.0

POWER

• AC 100-240 V, 50/60 Hz

POWER CONSUMPTION

• 20W

Warranty

1 Year (Extended to 3 Years via Registration) Warranty
